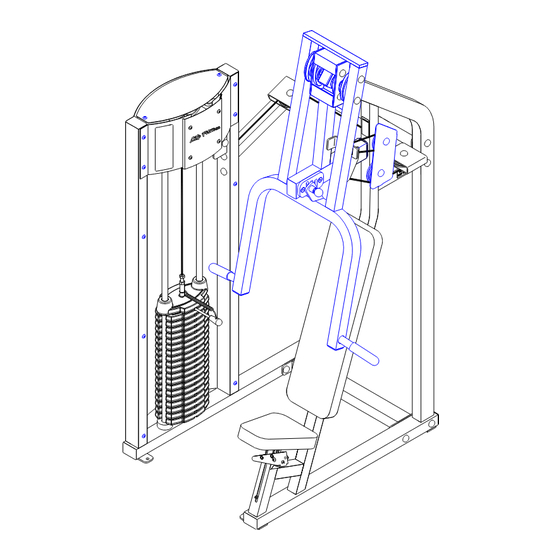

CLUB SERIES CHEST PRESS
ASSEMBLY INSTRUCTIONS
Part # 7233701
1
Revision: 2/18/02
Rev A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLUB Series and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness CLUB Series

Summary of Contents for Life Fitness CLUB Series

  • Page 1 CLUB SERIES CHEST PRESS ASSEMBLY INSTRUCTIONS Part # 7233701 Revision: 2/18/02 Rev A.
  • Page 2 PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 71238xx TOWER 69264xx SINGLE CHEST SHROUD 7124201 CABLE ASSY 69265xx DOUBLE CHEST SHROUD 6714901 GUIDE ROD BUSHING 68839xx GUIDE ROD SUPPORT 3102903 3/8-16 X 2.5 BOLT 68997xx PRESS ARM 3222801 4.5 PULLEY 3103101 RUBBER GRIP 3102933...
  • Page 3 (4X) (4X) (3X) (2X) (4X) (4X) (3X) (2X) (2X)
  • Page 4 (2X) 3 1/2" 4 3/8" (4X)
  • Page 5 15 3/8 X 3-3/4” FIGURE 1 STEP 1: • LOOSELY assemble the CROSS SUPPORT (2) to the TOWER (1) and the BOOM ASSEMBLY (4) using eight RH CAPS (39), four 3/8 X 3-3/4” BOLTS (15), eight 3/8” SAE WASHERS (21), eight 3/8” RH WASHERS (22) and four 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 1.
  • Page 6 FIGURE 2 13 3/8 X 2-3/4” STEP 2: • LOOSELY assemble the CROSS BRACE (5) to the TOWER (1) and the BOOM ASSEMBLY (4) using seven RH CAPS (39), four 3/8 X 2-3/4” BOLTS (13), seven 3/8” SAE WASHERS (21), seven 3/8” RH WASHERS (22) and three 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 2.
  • Page 7 FIGURE 4 18 3/8 X 1-1/4” BUTTON HEAD STEP 4: • Slide two PILLOW BLOCKS (23) over the shafts on the BOOM ASSEMBLY (4) as shown in FIGURE 4. • Assemble four 3/8 X 1-1/4” BUTTON HEAD CAP SCREWS (18) and four STARLOCK WASHERS (32) to the the PILLOW BLOCKS (23) as shown in FIGURE 4 FIGURE 5 STEP 5:...
  • Page 8 18 3/8 X 1-1/4” BUTTON HEAD FIGURE 6 STEP 6 • SECURELY assemble the PILLOW BLOCKS (23) to the ARM ADJUSTMENT (3) using four previously inserted 3/8 X 1-1/4” BUTTON HEAD CAP SCREWS (18), four previously inserted STARLOCK WASHERS (32), four 3/8” SAE WASHERS (21), four RH WASHERS (22), four 3/8”...
  • Page 9 FIGURE 8 17 3/8 X 3-1/4” BUTTON HEAD STEP 8: • SECURELY assemble the PILLOW BLOCKS (23) to the ARM ADJUSTMENT (3) using four previously inserted 3/8 X 3-1/4” BUTTON HEAD CAP SCREWS (17), four previously inserted STARLOCK WASHERS (32), four 3/8” SAE WASHERS (21), four RH WASHERS (22), four 3/8”...
  • Page 10 FIGURE 9 16 3/8 X 4” STEP 9: • SECURELY assemble the SINGLE CHEST SHROUD (6) and one 4-1/2” PULLEY (29) to the ARM ADJUSTMENT (3) using one 3/8 X 4” BOLT (16), two 3/8” SAE WASHERS (21), two RH WASHERS (22), one 3/8” LOW HEIGHT LOCK NUT (19), and one RH CAP (26) and one RH CAP (39) as shown in FIGURE 9 •...
  • Page 11 FIGURE 10 16 3/8 X 4” STEP 10: • SECURELY assemble the DOUBLE CHEST SHROUD (7) and two 4-1/2” PULLEYS (29) to the BOOM ASSEMBLY (4) using two 3/8 X 4” BOLTS (16), four RH WASHERS (22), two 3/8” LOW HEIGHT LOCK NUTS (19) and two RH CAPS (26), and two RH CAPS (39) as shown in FIGURE 10.
  • Page 12 3/8 X 3” 14 FIGURE 12 STEP 12: • SECURELY assemble the BACK PAD (35) to the BOOM ASSEMBLY (4) using two RH CAPS (39), two 3/8 X 3” BOLTS (14) and two 3/8” RH WASHERS (22) as shown in FIGURE 12.
  • Page 13 FIGURE 13 3/8 X 1-1/4” 11 STEP 13: • SECURELY assemble the SEAT PAD (36) to the BOOM ASSEMBLY (4) using two RH CAPS (26), two 3/8 X 1-1/4” BOLTS (11) and two 3/8” RH WASHERS (22) as shown in FIGURE 13.
  • Page 14 FIGURE 14 HEAVY WEIGHT OPTION STEP 14: • Insert the two GUIDE RODS (10) FOUND IN SHROUD KIT BOX, into the base of the TOWER (1) as shown in FIGURE 14. Lubricate the GUIDE RODS (10) with a slicon or teflon spray that is available at most hardware stores. •...
  • Page 15 FIGURE 15 19 3/8 X 2-1/2” TIGHTEN! STEP 15: • SECURELY assemble the GUIDE ROD SUPPORT (8) to the TOWER (1) using four RH CAPS (39), two 3/8 X 2-1/2” BOLTS (19), four 3/8” RH WASHERS (22) and two 3/8” LOW HEIGHT LOCK NUTS (19) as shown in FIGURE 15. •...
  • Page 16 FIGURE 16 STEP 16: • The WEIGHT STACK LABEL sheet (37) includes labels for both lbs. and kgs. for both the standard and optional weight stacks. • Peel the backing off the WEIGHT STACK LABELS (37), line up sheet to the right of the selector opening and apply labels to the 10 LB.WEIGHT PLATES (33) and/or 15 LB.
  • Page 17 FIGURE 17 STEP 17: • Assemble the PLACARD LABEL (30) or the FOREIGN LANGUAGE PLACARD LABEL (31) to the FRONT SHROUD as shown in FIGURE 17.

  • Page 18: Warranty Information

    • Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES CHEST PRESS. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...
