Life Fitness CLUB Series Service Manual

Life Fitness CLUB Series Service Manual

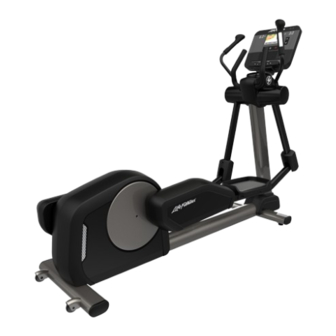

Integrity cross-trainer
Hide thumbs Also See for CLUB Series:

Advertisement

Integrity Cross-Trainer
INXSC, INXSX, INXDX, INXSSE, INXST, INXDSE, INXDST and
CLUB SERIES + (CSXD)
Service Manual
REV -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLUB Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Life Fitness CLUB Series

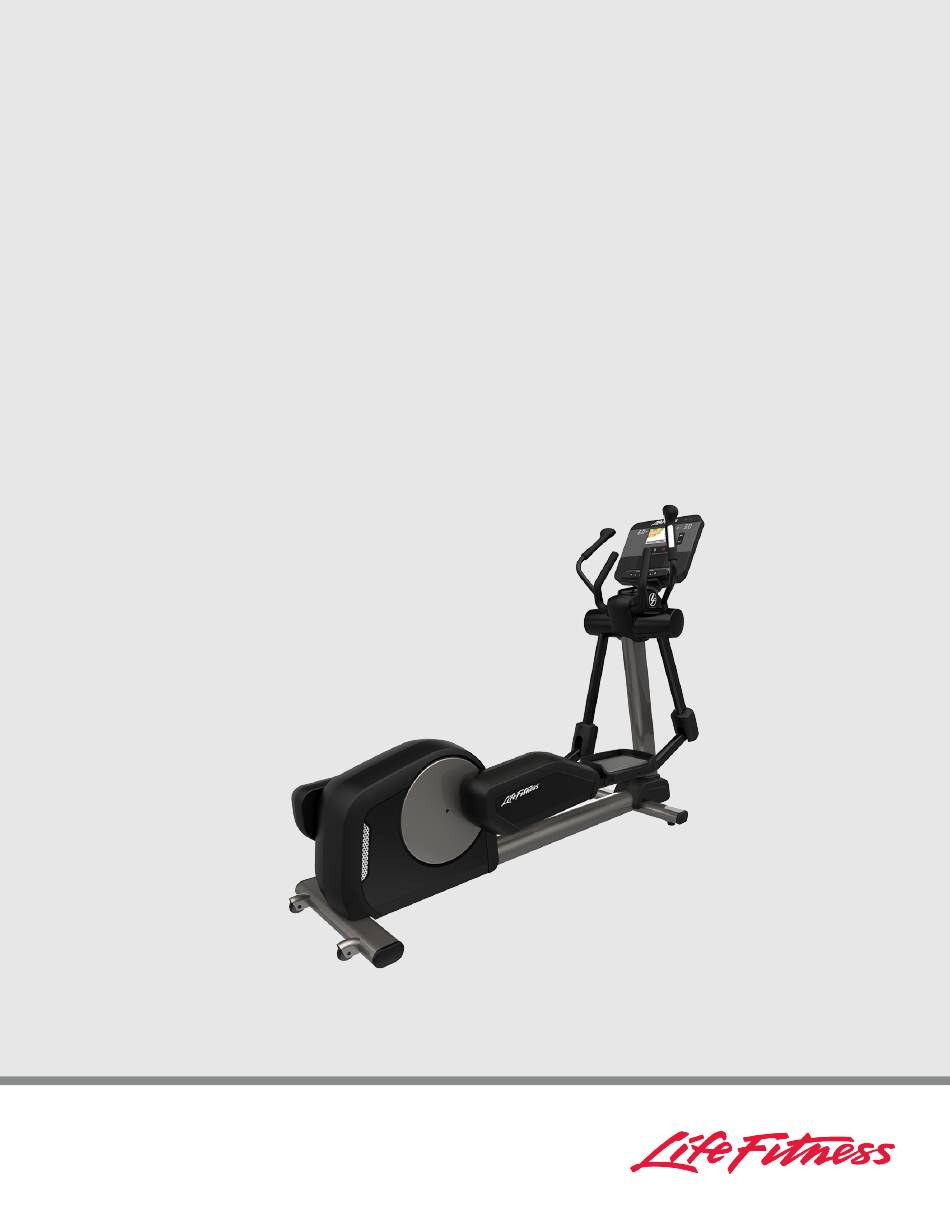

  • Page 1 Integrity Cross-Trainer INXSC, INXSX, INXDX, INXSSE, INXST, INXDSE, INXDST and CLUB SERIES + (CSXD) Service Manual REV -...
  • Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, Inc. Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 West Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
  • Page 4: Table Of Contents

    © Copyright 2019, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation.
  • Page 5: Safety Instructions

    CAUTION: Any changes or modifications to this equipment could void the product warranty. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life Fitness STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year.
  • Page 6 If warnings are missing or damaged, please contact Customer Support Services immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before product is used. Life Fitness is not responsible for missing or damaged warning labels.
  • Page 7: Consignes De

    Mise En Garde : Toute modification apportée à cet équipement pourrait en annuler la garantie. Avertissement : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression...
  • Page 8 Si certaines étiquettes d’avertissement sont manquantes ou endommagées, contactez immédiatement le Service à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness n’est pas responsable des étiquettes manquantes ou endommagées.
  • Page 9: Introduction

    Life Fitness, Hammer Strength, and ICG. http://www.lifefitness.com/parts service parts ordering for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG products along with warranty parts ordering and technician requests. https://lfworld.lifefitness.com easy to find Knowledge Base articles with answers to frequently asked questions and product support documentation for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG.
  • Page 10: Related Products

    Related Products The Simple (S) Cross-Trainer Bases use the following consoles: Integrity X Integrity C Discover SE3 Discover SE3HD Discover ST The Deluxe (D) Cross-Trainer Bases use the following consoles: Integrity X Discover SE3 Discover SE3HD Discover ST Page 10 of 35...
  • Page 11: Maintenance

    3. Maintenance Overview Video Link Overview of main components and how to access them. Video: Link Preventive Maintenance Tips NOTE: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below.
  • Page 12: Preventive Maintenance

    Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust Pedals Clean Inspect...
  • Page 13: Theory Of Operation

    4. Theory of Operation Knowledge Base Knowledge Base for more detailed information. Page 13 of 35...
  • Page 14: Rate

    Handlebars and Heart Rate ™ The Lifepulse contact heart rate system is designed to sense the electrical signals originating from the heart as it beats and, using software, compute and display the corresponding heart rate value on the console readout. The two pairs of electrodes on the Cross-Trainer Handlebars / Moving Handles (left and right) are the point of contact at which these signals are picked up and transmitted from the body to the LifePulse circuitry.
  • Page 15: Handlebars And Heart

    Can produce noise spikes which drive up gain values and Hand slip and / or grip pressure changes on electrodes lower the ability to detect the features of the actual heart pulses. Can further reduce the already low amplitude heart signal Dry and / or calloused hands picked up from the hands by the electrodes.
  • Page 16: Polar Telemetry

    Polar Telemetry Receiver This product uses a coded telemetry receiver. A coded telemetry receiver has the following characteristics: Initial limited range to 2/3 of the maximum specified After establishing a code with a chest strap telemetry transmitter, the range extends to the maximum specified It may take up to one minute to establish successful coded communication Works with a non-coded telemetry strap It is not immune to EMI...
  • Page 17: How To's

    5. How To's Knowledge Base Knowledge Base for more detailed information. Page 17 of 35...
  • Page 18: Remove And Replace

    Remove and Replace Console Tools Required: Phillips screwdriver Remove and Replace Console 1. Use a Phillips screwdriver to remove the two screws and two grommets that go through the two holes on the back of the rear console shroud assembly to the corresponding two holes on the console support weldment. 2.
  • Page 19 3. Disconnect base to console connections. Integrity X or C Consoles Item Description Console to Base Power Base Signal Handlebar Keypad Switches Lifepulse Discover Consoles Item Description Power Cable, 24V Base to Console Cable Coaxial Cable CAT5e HDMI (optional) IR (optional) Ground Wire 4.
  • Page 20: Troubleshooting Knowledge

    6. Troubleshooting Knowledge Base Knowledge Base for more detailed information. ® Troubleshooting the Polar Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes.
  • Page 21: Software

    7. Software Refer to Console Service Manual This product uses multiple consoles. Refer to the specific Console Service Manual for more detailed information. List of consoles are found in the Related Products section of the Introduction chapter. Page 21 of 35...
  • Page 22: Diagnostics

    8. Diagnostics Diagnostic menus display service information. Refer to Console Service Manual This product uses multiple consoles. Refer to the specific Console Service Manual for more detailed information. List of consoles are found in the Related Products section of the Introduction chapter.
  • Page 23: Error Code List

    9. Error code list Error codes notify user of a problem condition and are displayed on the console. Error codes can also help to indicate the part of the unit most likely to be causing the problem. Refer to Console Service Manual This product uses multiple consoles.
  • Page 24: Network Information

    10. Network Information Refer to Console Service Manual This product uses multiple consoles. Refer to the specific Console Service Manual for more detailed information. List of consoles are found in the Related Products section of the Introduction chapter. Page 24 of 35...
  • Page 25: Schematics

    Life Fitness, Hammer Strength, and ICG. http://www.lifefitness.com/parts service parts ordering for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG products along with warranty parts ordering and technician requests. https://lfworld.lifefitness.com easy to find Knowledge Base articles with answers to frequently asked questions and product support documentation for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG.
  • Page 26: Integrity X And C Consoles

    Integrity X and C Consoles Schematic Item Description WDI-001 CABLE: LIFEPULSE ELECTRODES WDI-002 CABLE: LIFEPULSE TO ELECTRODE WDI-003 CABLE: KEYPAD EXTENSION WDI-004 CABLE: CONSOLE TO BASE KEYPAD, CROSSTRAINER Page 26 of 35...
  • Page 27: Discover Console

    Discover Console Schematic Item Description WDD001 CBL ASSY: GROUND ESD WDD-002 CABLE: LIFEPULSE ELECTRODES, CROSSTRAINER WDD-003 CABLE: LIFEPULSE TO ELECTRODE - CROSSTRAINER WDD-004 CABLE: DISCOVER TO HERCULES ADAPTOR, CROSSTRAINER Page 27 of 35...
  • Page 28: Led Chart Knowledge Base

    12. LED Chart Knowledge Base Knowledge Base for more detailed information. Page 28 of 35...
  • Page 29: Sib Connectors Integrity

    SIB Connectors Integrity Non-Treadmill NOTE: Always ensure that the software is up to date before beginning troubleshooting. Update the software and restart the unit if software is an old version. SIB Connectors Connector Description Not Used Engineering use only Power to Console External Power Supply Input Battery Input Comm to Console...
  • Page 30 Connector P3 This connector is a ten position MiniFit that provides power to the console. Pin # Description Pushbutton signal from the console, turns on the board Voltage to TV Ground Voltage to Console Low power voltage Ground Voltage to Console Ground Connector P4 This connector is a four position Minifit connector that connects to the optional external power supply.
  • Page 31 Pin # Description Ground Ground Position Signal Connector P8 This connector is not currently used. Connector P9 This connector is for engineering use only. Connector P10 This connector is for engineering use only. Connector P11 This connector is for engineering use only. Connector P12 This connector is for engineering use only.
  • Page 32: Sib Led's Integrity

    SIB LED's Integrity Non-Treadmill NOTE: Always ensure that the software is up to date before beginning troubleshooting. Update the software and restart the unit if software is an old version. Correctly Operating SIB Color Normal Condition Indicates Green Flashing Rapidly Communication with the console On when pedaling Hybrid mode activated...
  • Page 33: Glossary

    Light Emitting Diode - LED's provide display functionality and are commonly used for indicator lights. ™ Lifepulse Life Fitness' proprietary hardware and software system designed to measure user's heart rate by making electrical contact at user’s palms. Motor Drive Board...
  • Page 34: Warranty

    Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year.
  • Page 35: Changes In Warranty Not Effects Of State Warranty Information

    Warranty Information 3 years 2 years 1 year Commercial Cross-Trainer Electrical and Mechanical (INXSC, INXSX, INXDX, INXSSE, Labor Parts INXST, INXDSE, INXDST) Electrical and Mechanical Club Series Plus (CSXD) Labor Parts Warranties outside the U.S. may vary. Page 35 of 35...
