Summary of Contents for Tenma 72-8715

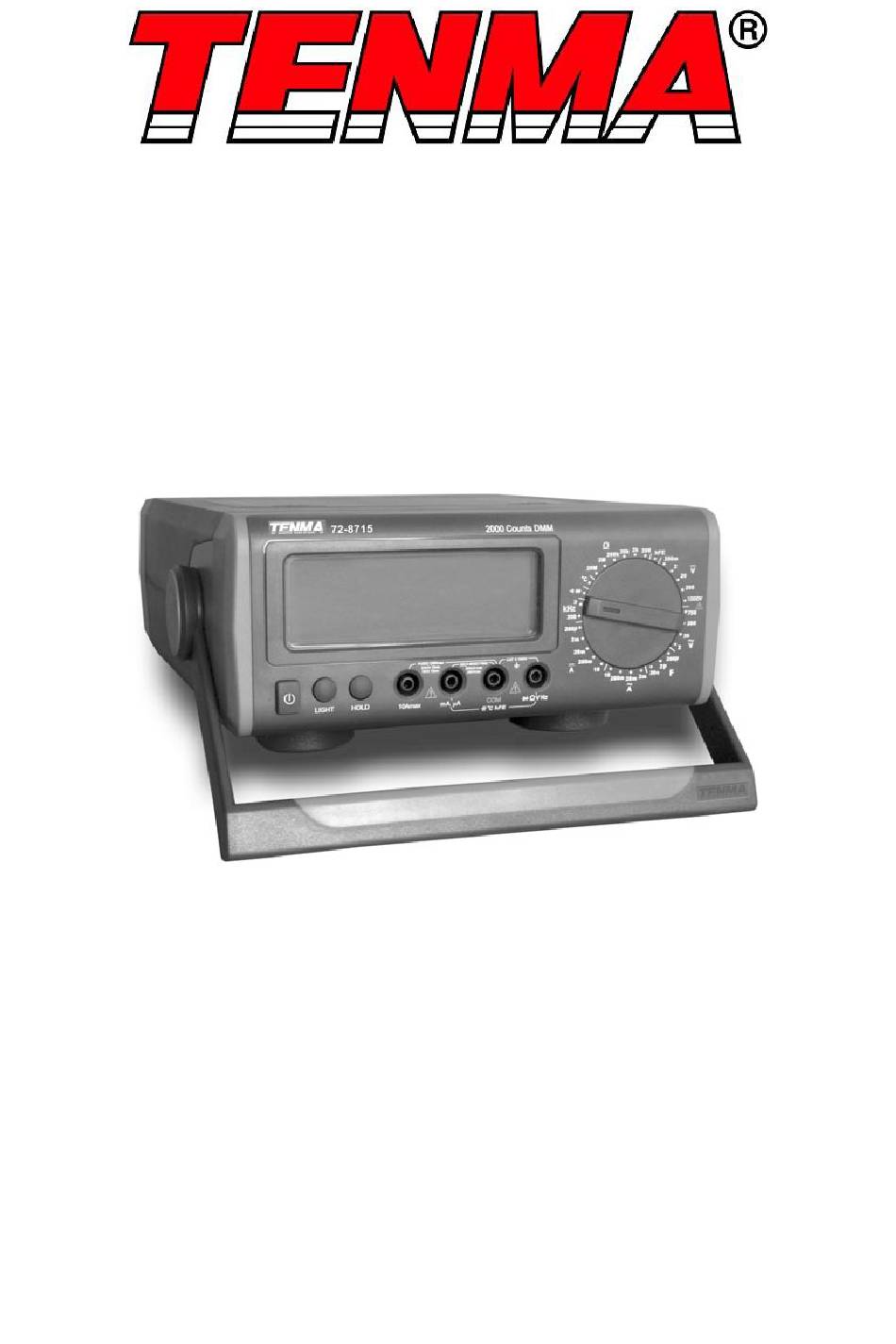

- Page 1 Digital Bench Multimeter Model: 72-8715...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • This meter is designed to meet IEC61010-1, 61010-2-032, and 61010-2-033 in Pollution Degree 2, Measurement Category (CAT I 1000V, CAT II 600V, CAT III 300V) and double Insulation. -
Page 3: Operating Parameters
FUNCTIONS Range Selector Positions Function AC and DC voltage measurement Continuity test Diode test Ω Resistance/continuity measurement Capacitance test Frequency measurement Capacitance measurement ºC Temperature in celsius Transistor test AC or DC current measurement Function buttons Operation performed POWER Turn the power on and off LIGHT Turn display back light on and off HOLD... - Page 4 LCD Display Range Selector Power Button Input Terminals Light Button Hold Button Symbol Terminal input Explanation V ←→ COM DC Voltage Measurement V ←→ COM AC Voltage Measurement Ω V ←→ COM Resistance Measurement V ←→ COM Diode / Continuity Buzzer Measurement V ←→...
-
Page 5: Operation
OPERATION DC or AC Voltage Measurement Warning: To avoid personal injury, or damage to the meter from electric shock, please do not attempt to measure voltages higher than 1000V although readings may be obtained. To measure DC/AC voltage, connect the meter as follows: •... -
Page 6: Measuring Resistance
Warning: To avoid damage to the meter or to the devices under test, disconnect circuit power and discharge all the high-voltage capacitors before measuring resistance. To avoid possible injury, please do not attempt to input voltages higher than 60V DC or 30V AC. -
Page 7: Frequency Measurement
Diode Test Perform the diode test to check diodes, transistors, and other semiconductor devices. The diode test sends a current through the semiconductor junction, and then measures the voltage drop across the junction. A good silicon junction drops between 0.5V and 0.8V. - Page 8 Temperature Measurement To measure temperature, connect the meter as follows: • Set the rotary switch to ºC to measure degree celsius temperature. • Insert the multi-purpose socket into the corresponding Hz and COM terminal. • Insert the temperature probe to the corresponding input terminal of the multi- purpose socket.
-
Page 9: Specification
SPECIFICATION DC Voltage Range Resolution Accuracy Overload Protection 200mV 0.1mV ±(0.5%+2) 1000V 10mV Input impedance: ~10MΩ 200V 100mV 1000V ±(0.8%+3) AC Voltage 750V 10mV Input impedance: ~10MΩ ±(0.8%+3) Frequency: 45Hz to 400Hz 200V 100mV Display True RMS 1000V ±(1.0%+4) DC Current 200μA 0.1μA 1μA... - Page 10 Resistance Range Resolution Accuracy Overload Protection 200Ω 0.1Ω 2kΩ 0.001kΩ ± (0.8%+3) 20kΩ 0.01kΩ 250V rms 200kΩ 0.1kΩ 2MΩ 0.001MΩ 20MΩ 0.01MΩ ± (1.2%+5) 200MΩ Capacitance 20nF 10pF ± (4%+3) 2μF 250V rms 200μF 100nF ± (5%+5) Frequency 2kHz ± (1.5%+5) 250V rms 200kHz 100Hz...
-
Page 11: Maintenance
MAINTENANCE Cleaning • Periodically wipe the case with damp cloth and mild detergent. Do not use abrasives or solvents for cleaning. • Clean the measurement probe tips occasionally, as dirt on the probes can affect reading accuracy. Replacing the fuses •... - Page 12 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT These symbols indicate that separate collection of Waste Electrical and Electronic Equipment (WEEE) or waste batteries is required. Do not dispose of these items with general household waste. Separate for the treatment, recovery and recycling of the materials used. Waste batteries can be returned to any waste battery recycling point which are provided by most battery retailers.
