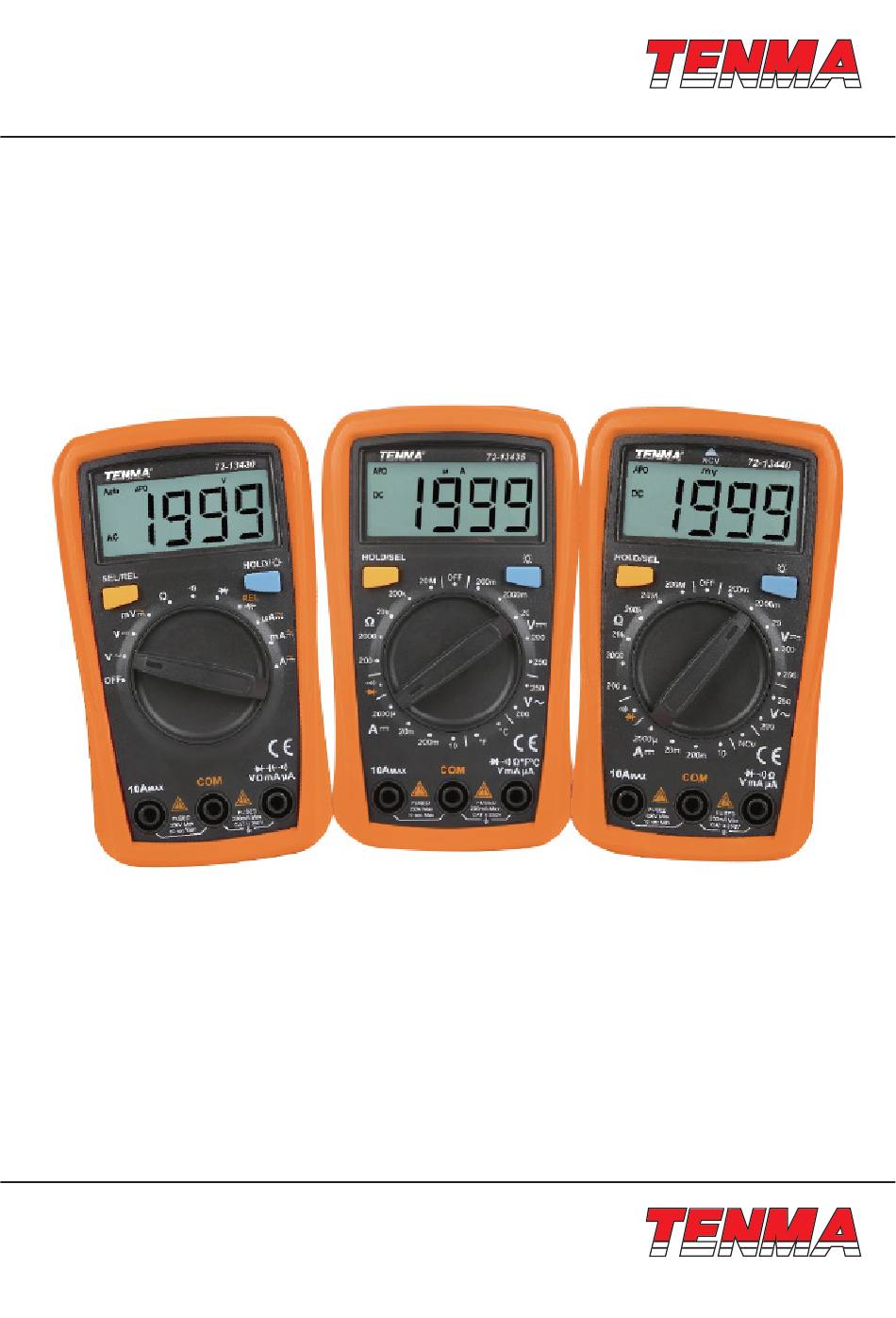

- Page 1 Palm Size Multimeter User Manual Part Number: 72-13430, 72-13435 and 72-13440 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 04/03/19 V1.0...
-
Page 2: Open Box Inspection
2 meters impact resistance. The new LCD display layout provides a clear display for better user experience. The 72-13400 series ensure safe operation in CAT II 250 V environment. The special features of each model are as follows: 72-13430: 2mF capacitance test function 72-13435: Temperature test 72-13440: NCV test 2. -
Page 3: Electrical Symbols
3. mA/μA terminal: Fuse 200mA 250V Fast fuse Ø5 × 20mm 4. Max. display 1999, over range display “OL”, update rate: 2~3 times/second 5. Range select: Auto range 72-13430; Manual range 72-13430/435/440 6. Backlight: manual on, auto shut off after 30 seconds. -
Page 4: Key Functions

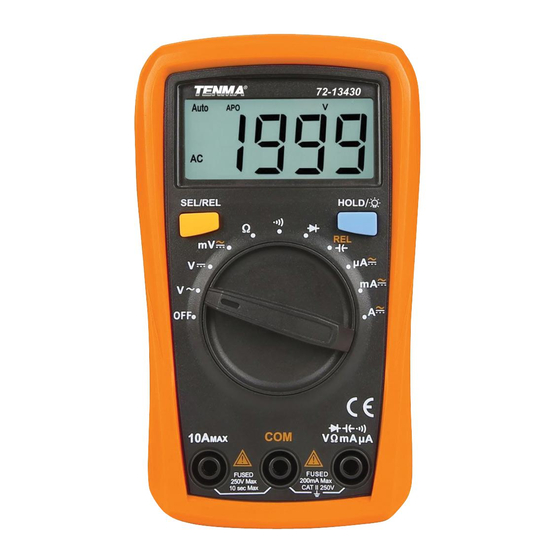

7. Key Functions 1) 72-13430: SEL/REL: press this key to switch between AC and DC modes for mV , I and REL positions. HOLD/ : Press to enter or exit data hold mode. Long press over 2 seconds to turn on/off backlight. - Page 5 Note: • Before measuring PN junction, switch off the power supply to the circuit, and fully discharge all capacitors 5. Capacitance measurement (only for 72-13430, see Figure 2a) 1) Switch the dial to capacitance test. 2) Insert the black test lead into the COM jack, the red test lead into the “VΩmA” jack. Connect test leads with the capacitor in parallel 3) When there is no input, the device displays a fixed value (intrinsic capacitance).
- Page 6 • If the tested current is over 10A, each measurement time should be less than 10 seconds and the next test should be after 15 minutes. 7. AC measurement (only for 72-13430, see Figure 3) Similar to DC Measurement. Please refer to Section 6 “DC measurement (see Figure 3)”...
-
Page 7: Technical Specification
10. NCV measurement (only for 72-13440, see Figure 6) 1) Switch the dial to NCV position 2) Place the device near the measured object. “-” symbol indicates the intensity of the electric field. More “-” and the higher the buzzer frequency, the higher the electric field intensity. 3) Intensity of electric field. - Page 8 Part Number Resolution Accuracy 200mV 0.1mV ±(0.7% +3) 2000mV ±(0.5% +2) 20.00V 72-13430/13435/13440 0.01V ±(0.7% +3) 200.0V 0.1V ±(0.7% +3) 250V ±(0.7% +3) • Input impedance: about 10MΩ • Results might be unstable at mV range when no load is connected. The value becomes stable once the load is connected.
-
Page 9: Range Resolution
Open circuit voltage: 2.1V, test current is about 1mA Silicon PN 0.001V junction voltage is about 0.5 ~ 0.8V • Overload protection: 250Vrms (AC/DC) 5. Capacitance (only for 72-13430) Range Resolution Accuracy 0.001nF Under REL mode ±(5% +5) -
Page 10: Maintenance
±(1.2% +5) • Input current> 10A, “OL” symbol appears and buzzer beeps • Overload protection 250Vrms μA mA range: F1 Fuse 0.2A/250V Ø5×20mm 10A range: F2 Fuse 10A/250V Ø5×20mm 8. AC current (only for 72-13430) Range Part Number Resolution Accuracy 200μA 0.1μA... - Page 11 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Tenma is the registered trademark of the Group. © Premier Farnell Limited 2016.
