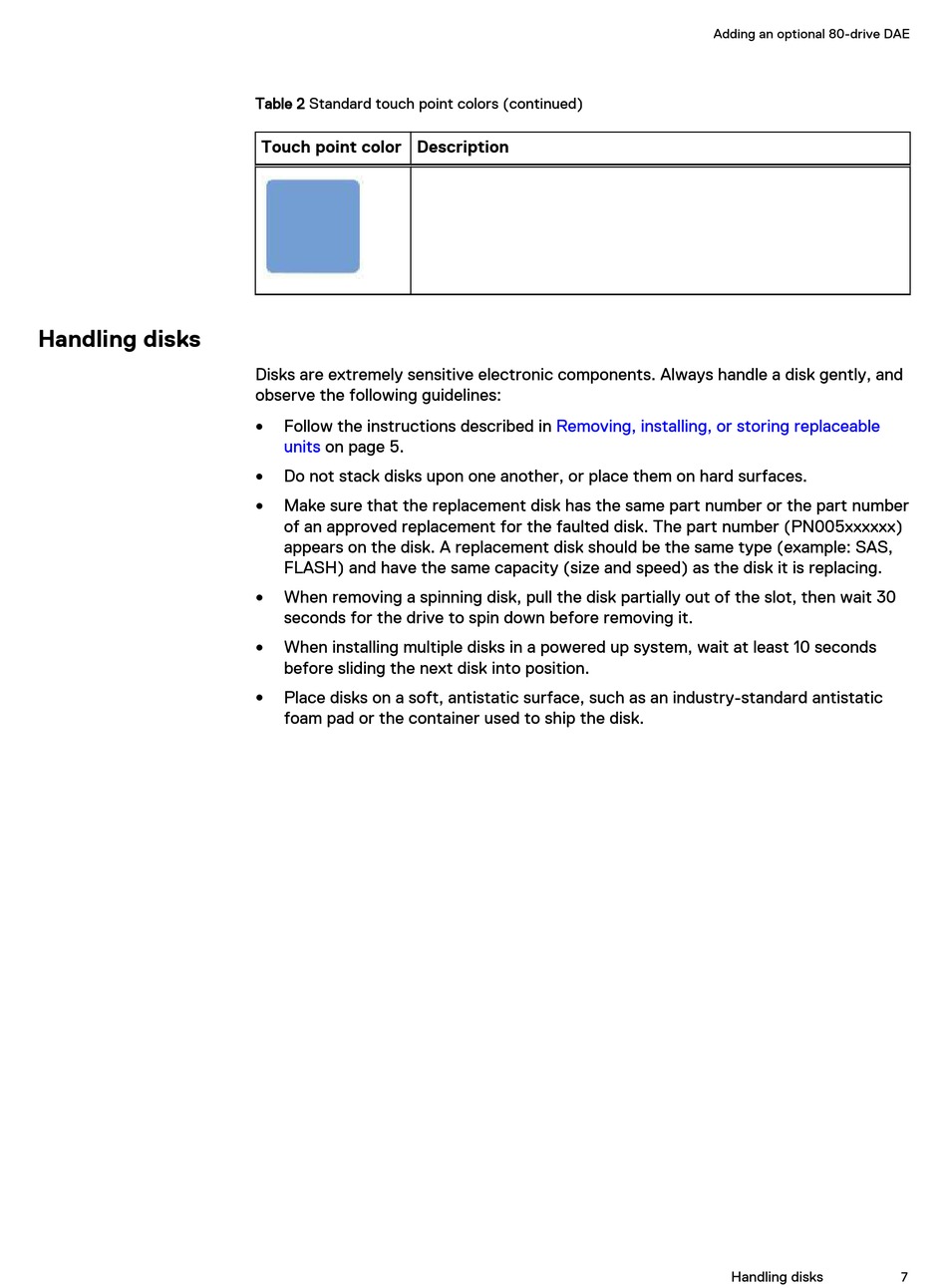

Handling disks

Table 2 Standard touch point colors (continued)
Touch point color Description
Disks are extremely sensitive electronic components. Always handle a disk gently, and
observe the following guidelines:
Follow the instructions described in
l
units on page 5.
Do not stack disks upon one another, or place them on hard surfaces.
l
Make sure that the replacement disk has the same part number or the part number
l
of an approved replacement for the faulted disk. The part number (PN005xxxxxx)
appears on the disk. A replacement disk should be the same type (example: SAS,
FLASH) and have the same capacity (size and speed) as the disk it is replacing.
When removing a spinning disk, pull the disk partially out of the slot, then wait 30
l
seconds for the drive to spin down before removing it.
When installing multiple disks in a powered up system, wait at least 10 seconds
l
before sliding the next disk into position.
Place disks on a soft, antistatic surface, such as an industry-standard antistatic
l
foam pad or the container used to ship the disk.
