Dell EMC Unity Series Field Upgrade Procedure page 15

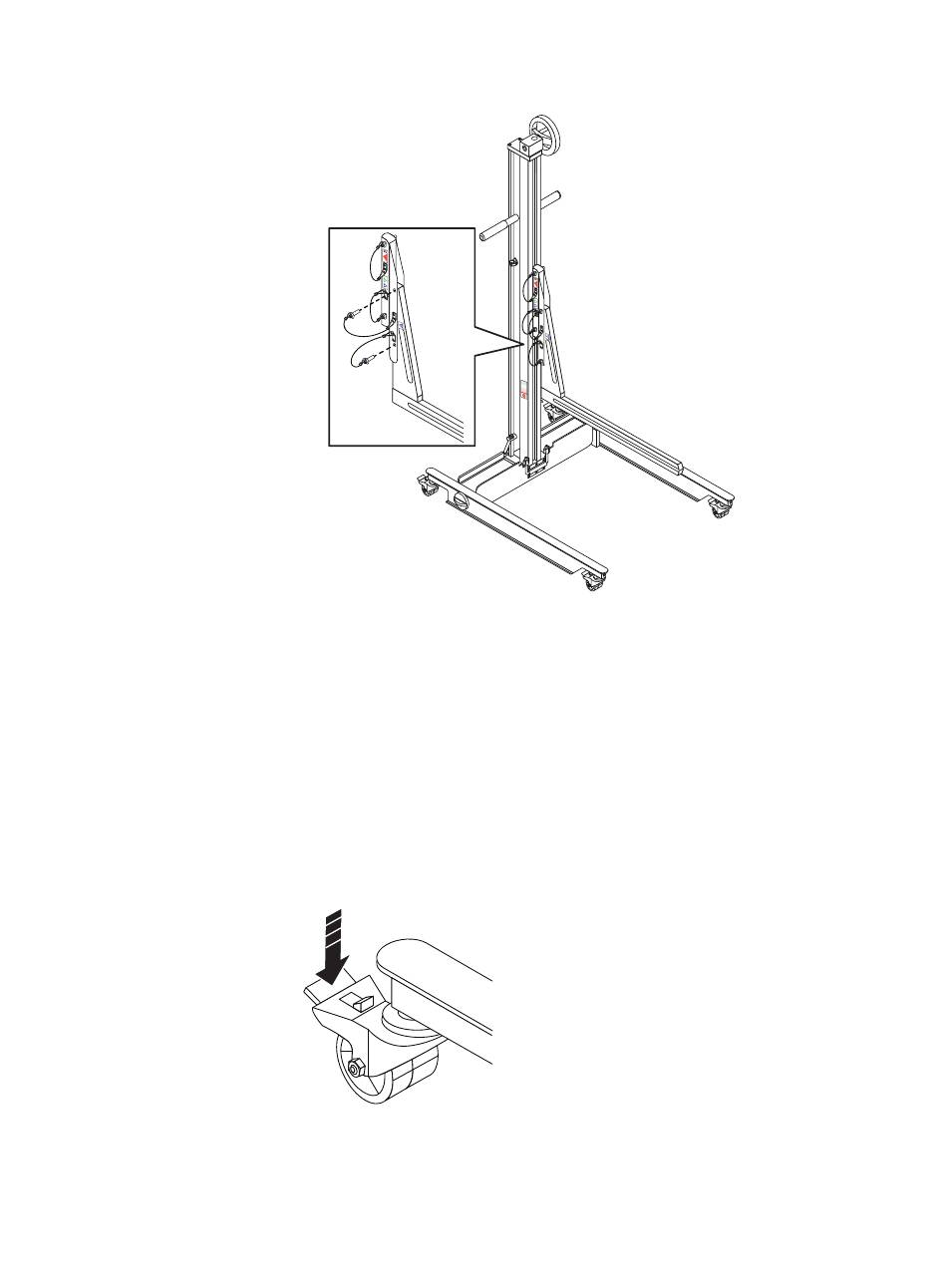

Figure 6 Adjusting the arm for a low rail position
2. Remove the rotating handle by loosening the set screw and pulling the handle
from the hex fitting.
3. Using the cordless drill that comes with the Voyager conversion kit, place the
cordless drill over the hex fitting and use the drill to raise or lower the arm to
the required height.
4. Adjust the arm of the portable lift to the approximate height of the enclosure
you intend to move.
5. Attach the tray to the lift arm.
6. Lock all four casters by pressing down on the locking tab so the lift will not roll
as the instrument is placed onto it. Refer to
Figure 7 Locking the Casters
7. Pull the enclosure onto the lift (Refer to
or less above the floor
the securing straps as follows:
Locking the Casters
CL5423
Removing an enclosure from rails 49"
, and then secure the enclosure to the portable lift using
Working with the portable lift
Adding an optional 80-drive DAE
CL5441
