PICO-IMX8M HARDWARE MANUAL – VER 0.99 – JAN 14 2019
2.2. Block Diagram

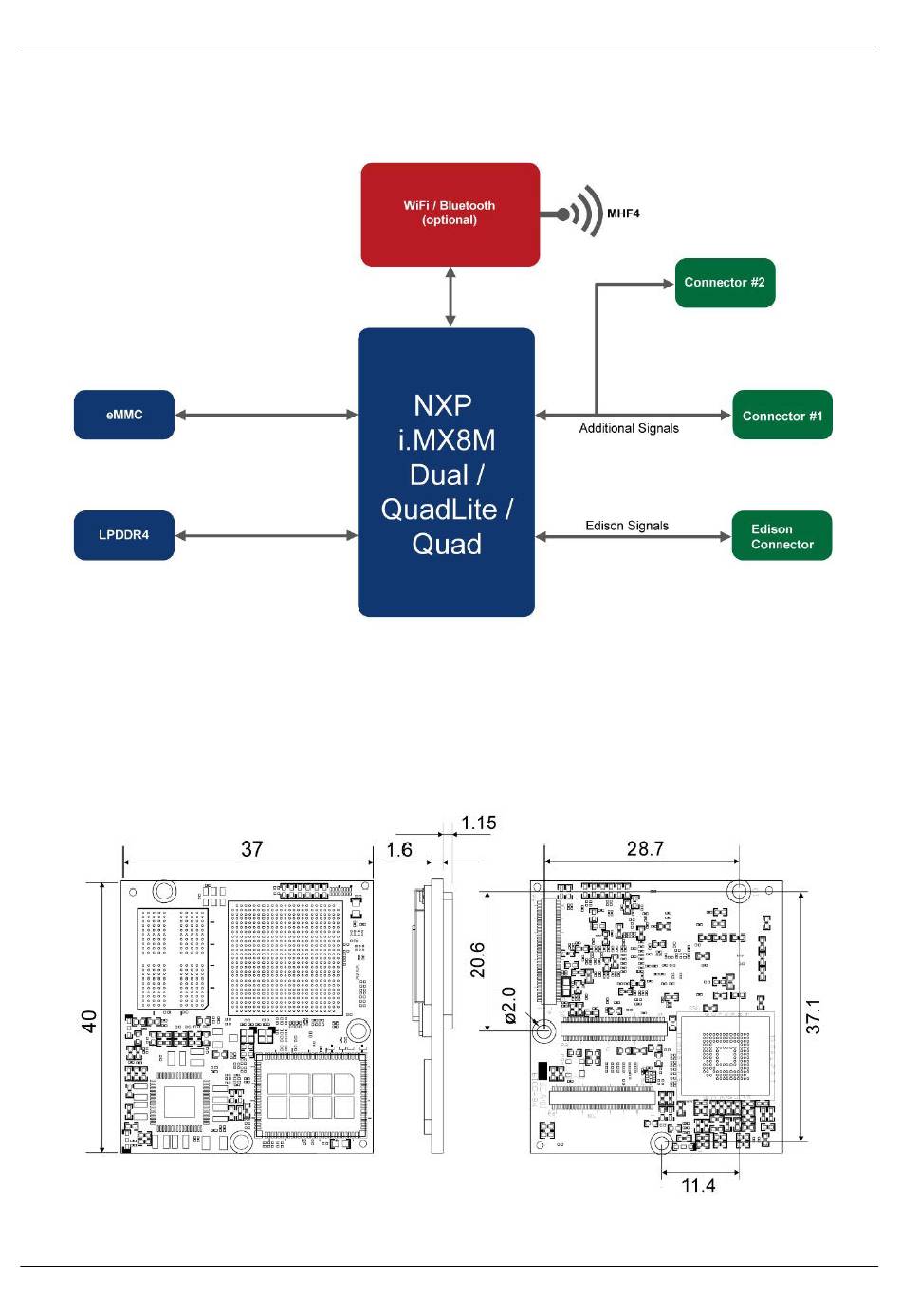

Figure 2 – PICO-IMX8M System-on-Module Block Diagram Overview
2.3. Dimensional Drawing
The PICO-IMX8M System-on-Module is an ultra-compact module in PICO form factor.
Figure 3 – PICO-IMX8M System-on-Module Dimensions
Page 6 of 44
