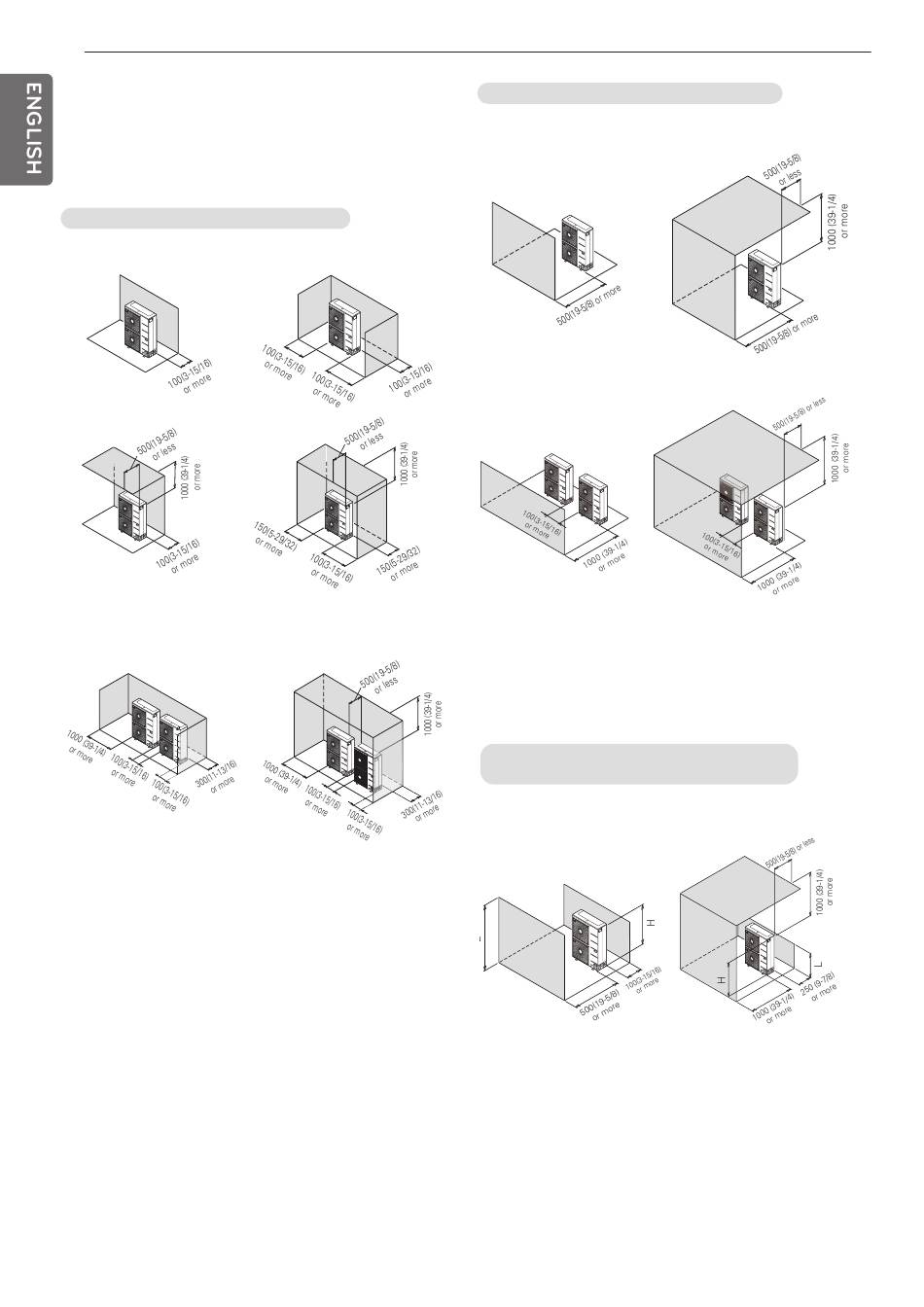

INSTALLATION SPACE
• The following values are the least space for installation. If any service
area is needed for service according to field circumstance, obtain
enough service space.
• The unit of values is mm.
In case of obstacles on the suction side
1. Stand alone installation
2. Collective installation
In case of obstacles on the discharge side
1. Stand alone installation
2. Collective installation
Unit:mm(inch)
In case of obstacles on the suction and the
discharge side
Obstacle height of discharge side is higher than the unit
1. Stand alone installation
L > H
Unit:mm(inch)
Unit:mm(inch)
L > H
Unit:mm(inch)
