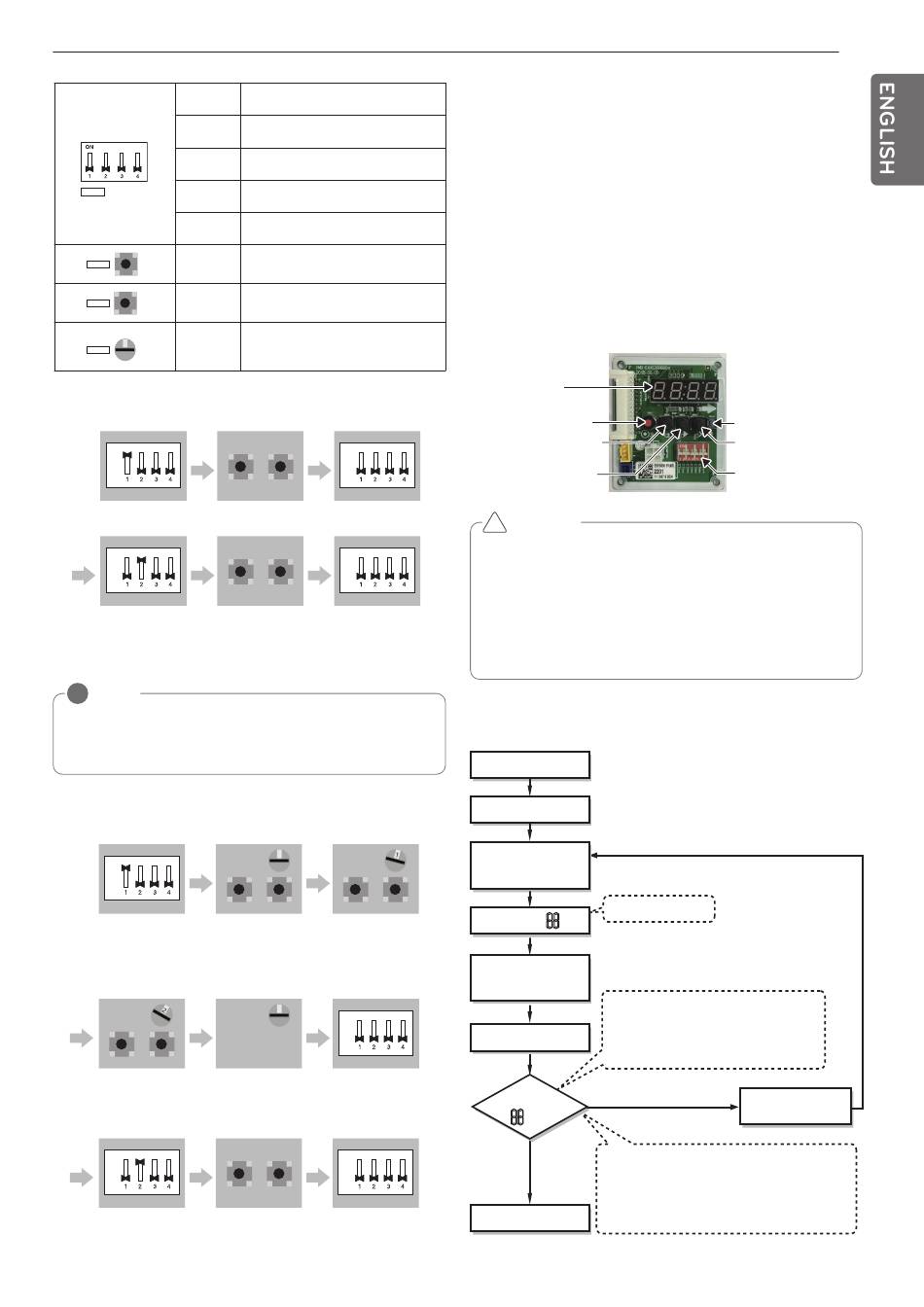

Automatic Addressing - LG MULTI V S ARUB060GSS4 Installation Manual

S/W No.
No.1
No.2
SW01E
No.3
No.4
SW02B
SW02B
SW01B
SW01B
* Use for Zoning setting
0 SW01C
SW01C
1) Normal setting (Non-Zoning setting)
ex) Manual pipe detection of Valve #1, 6.
Master Master
ON
OFF
SW01E
SW #1 On : Select Valve #1 Input the central control
address of Indoor unit
Slave Slave
ON
OFF
SW01E
SW #2 On : Select Valve #6 Input the central control
address of Indoor unit
2) Zoning setting
!
NOTE
Use the Zoning Control when install two or more indoor units at 1 branch of HR
Unit.
The indoor units controlled by Zoning Control can be selected collectively as the
cooling/heating mode.
ex) Manual pipe detection of Valve #5 with three zoning indoor units,
#6 without zoning unit.
Slave Slave
ON
OFF
SW01E SW02B
SW #1 On : Select Valve #5 After selecting No.1 zoning
indoor unit, input the central
control address of indoor unit.
Slave Slave
SW01C
SW02B SW01B
After selecting No.3 zoning Setting SW01C to '0'
indoor unit, input the central
control address of indoor unit.
Slave Slave
ON
OFF
SW01E SW02B
SW #2 On : Select Valve #6 Input the central control
address of Indoor unit
Setup
Manual addressing of valve #1 (Master)
/ #5 (Slave)
Manual addressing of valve #2 (Master)
/ #6 (Slave)
Manual addressing of valve #3 (Master)
/ #7 (Slave)
Manual addressing of valve #4 (Master)
/ #8 (Slave)
Increase in the digit of 10 of valve ad-
dress
Increase in the last digit of valve ad-
dress
Manual addressing of zoning indoor
units
Master
ON
OFF
SW02B SW01B SW01E
SW #1 Off : Finish Valve #1
Slave
ON
OFF
SW02B SW01B SW01E
SW #2 Off : Finish Valve #6
Slave
0
SW01C SW01C
SW01B SW02B SW01B
After selecting No.2 zoning
indoor unit, input the central
control address of indoor unit.
Slave
0
ON
SW01C
OFF
SW01E
SW #1 Off : Finish Valve #5
Slave
ON
OFF
SW01B SW01E
SW #2 Off : Finish Valve #6

Automatic Addressing

The address of indoor units would be set by Automatic Addressing
- Wait for 3 minutes after supplying power.
(Master and Slave outdoor units, indoor units)
- Press RED button of the outdoor units for 5 seconds. (SW01C)
- A "88" is indicated on 7-segment LED of the outdoor unit PCB.
- For completing addressing, 2~7 minutes are required depending on
numbers of connected indoor units
- Numbers of connected indoor units whose addressing is completed are
indicated for 30 seconds on 7-segment LED of the outdoor unit PCB
- After completing addressing, address of each indoor unit is indicated
on the wired remote control display window. (CH01, CH02,
CH03, ......, CH06 : Indicated as numbers of connected indoor units)
[Heat Recovery (SERVICE PCB)]
7-Segment
SW01C(●:confirm)
SW02C(◀:backward)
SW03C(▶:forward)
! CAUTION
• In replacement of the indoor unit PCB, always perform Automatic
addressing setting again (At that time, please check about using
Independent power module to any indoor unit.)
• If power supply is not applied to the indoor unit, operation error
occur.
• Automatic Addressing is only possible on the master Unit.
• Automatic Addressing has to be performed after 3 minutes to im-
prove communication.
The Procedure of Automatic Addressing
Power On
Waiting 3 minutes
Press RED Button
for 5 seconds.
(SW01C)
Automatic addressing start
7-segment LED = 88
Don't press RED Button
(SW01C)
• Automatic addressing setting end
Numbers of indoor unit connection set whose
addressing is completed are indicated for 30seconds
Waiting about 2~7 minutes
on 7-segment LED after completing setting
NO
7-segment LED
= 88
YES
Indoor address number is displayed on wired remote control or
indoor unit display window. It is not an error message, will
disappeared when on/off button is pressed on remote control
ex) Display of 01, 02, ..., 15 means connection of 15 indoor units
OK and Automatic addressing is completed normally.
27
SW01D(reset)
SW04C(x:cancel)
DIP-SWITCH
Check the connections
of communication cable
