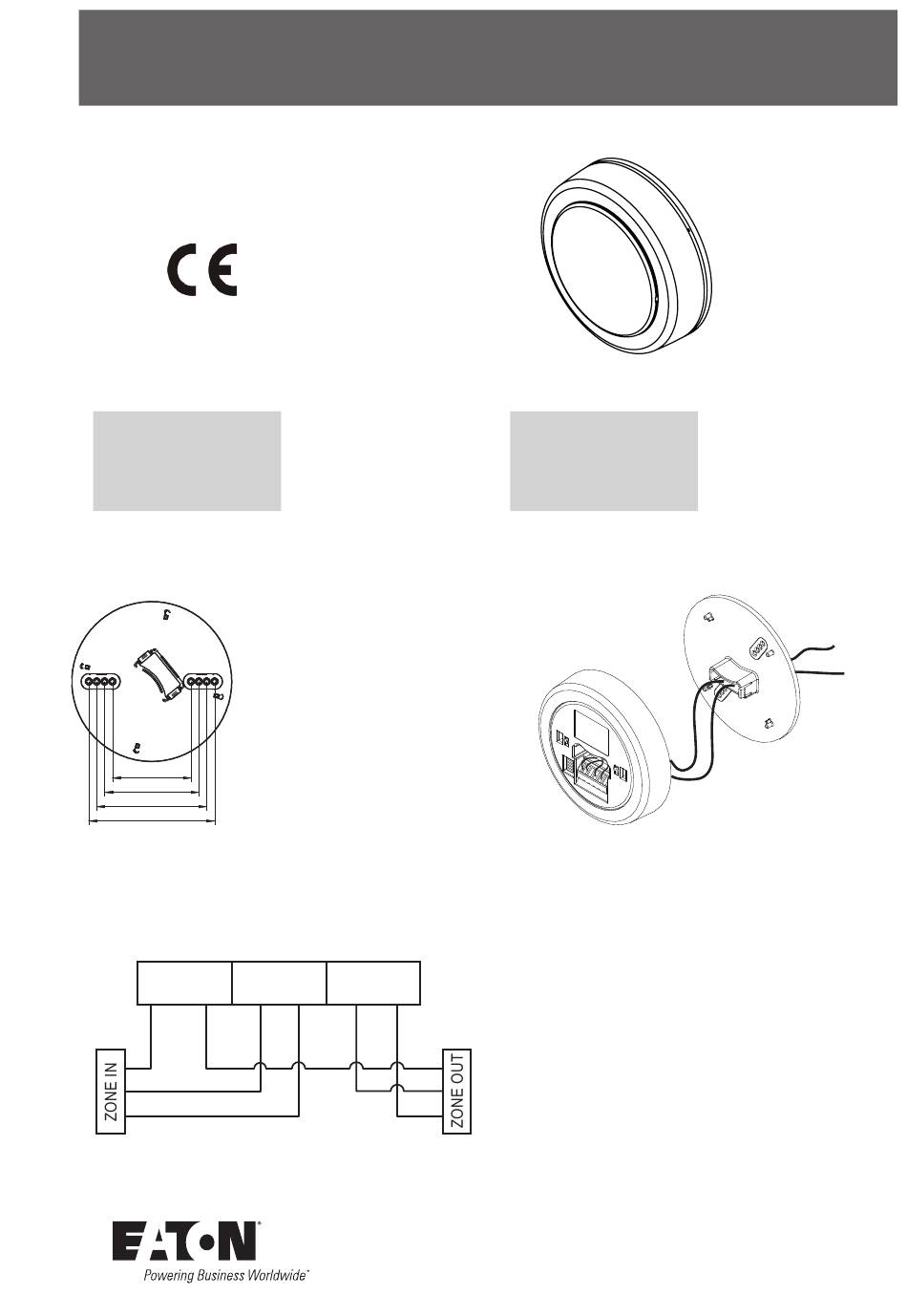

Technical data

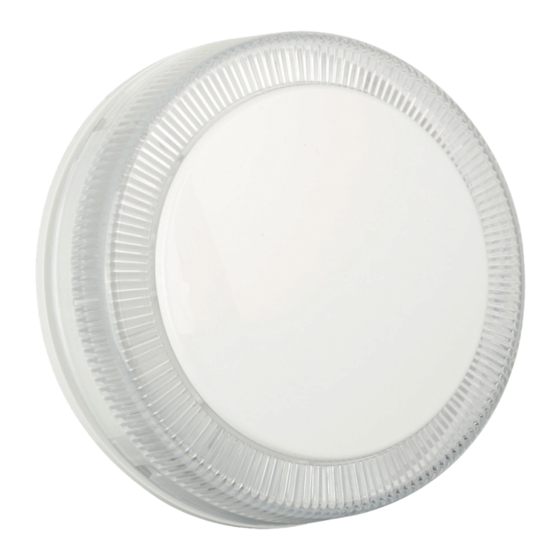

SQG3-23 Base sounder VAD
14
DoP0018
Comp liance EN54-3; EN54-23:2 010
Table 1. Specification
Feature
Supply voltage (conventional)
Cable size/type
Current (high volume)
Current (low volume)
Sound output (high volume)*
Sound output (low volume)*
1. Mounting base
50
60
70
80
3. Connection details
OUT
IN
+VE -VE
SCREEN
ZONE OUT
25-12947-E
Effective July 2019
Value
18~35 Vdc
0.5~2.5mm
/FIRETUF, FP200 or MICC
2
11mA
8.7mA
90 +/- 3dB(A) : All tones
80 +/- 3dB(A) : All tones
(i) Knockout the required
fixing holes.
(ii) Fix to mounting surface
using two suitable screws.
(iii) Please ensure all cable
entry points are sealed
appropriately.
Note
If the base deforms on an
uneven surface, loosen the
screws or move to a flatter
position.
+VE -VE
ZONE IN
Feature
Operating temperature
Material
Environmental category
Tones
Flash rate
Flash on period
2. Sounder/beacon assembly
Note
Screen must be continuous
along entire length of line.
SQG3-23
Value
-10 to +55ºC ( 93% ± 3%RH )
ABS FR plastic
Type A= IP21C
3, see section 4.
0.5Hz
60ms
