Quick install guide

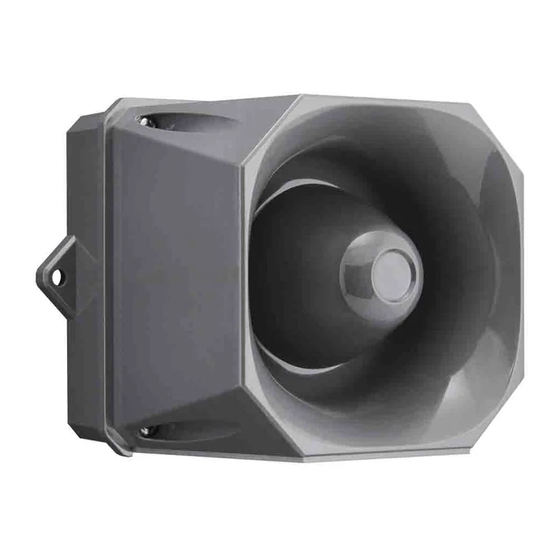

X10 DC
10-60v DC / 10-30v AC

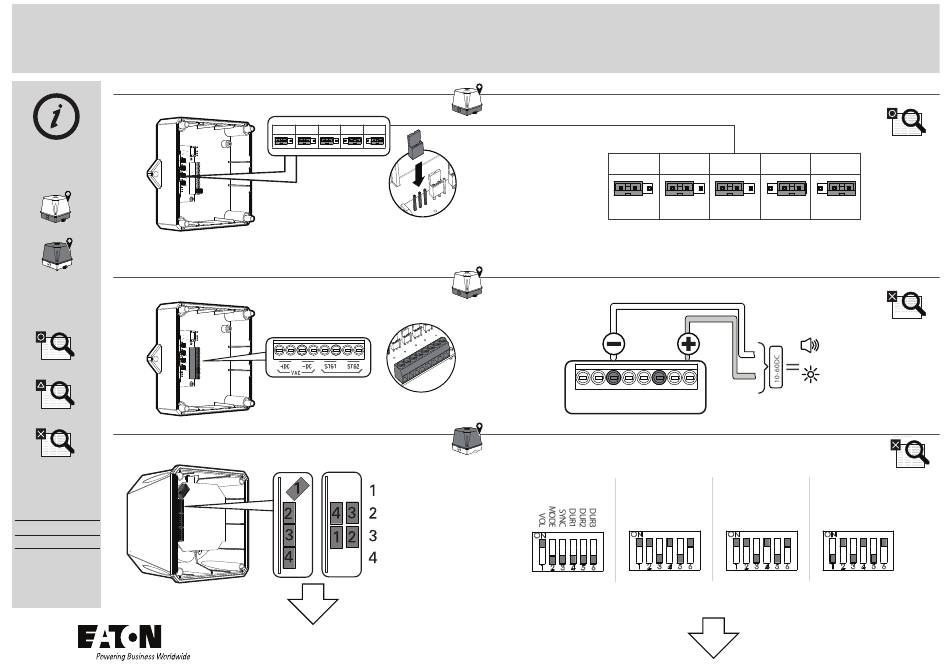

Figure 1
LOCATION
Figure 2
SETTINGS TABLE
Figure 3
CAUTION!
ISOLATE POWER
Only qualified personnel
may install, configure or
repair this product.
JP1
JP2
JP3
JP4
JP5
Mini & Midi
Maxi
Volume control
Tone selection - Stage 1
Tone selection - Stage 2/3/4
Beacon control
JP1
JP2
DC
10-60v
IMPORTANT MAKE SURE JUMPERS ARE CONFIGURED AS ABOVE
+DC
-DC
IN 1
IN 2
Factory Default Setting
1
2
TONE STAGE 1
Stage 1 Tone
Advanced Settings
Max Volume
BS Fire Tone
Standard Mode 3 Stage
Immediate Start
Time out Disabled
JP3
JP4
JP5
Stage 2 1Hz Flash
(60 FPM -
Flash Per Minute)
3
4
TONE STAGE 2, 3 , 4
BCN ST 1/2/3-4
Beacon Pattern
Stage 2 BS Fire Tone
Stage 3 PFEER Toxic
Stage 1 Off
Gas
Stage 2 1Hz Flash
(60 FPM - Flash per Minute)
Stage 3 Off
25-13926-E
