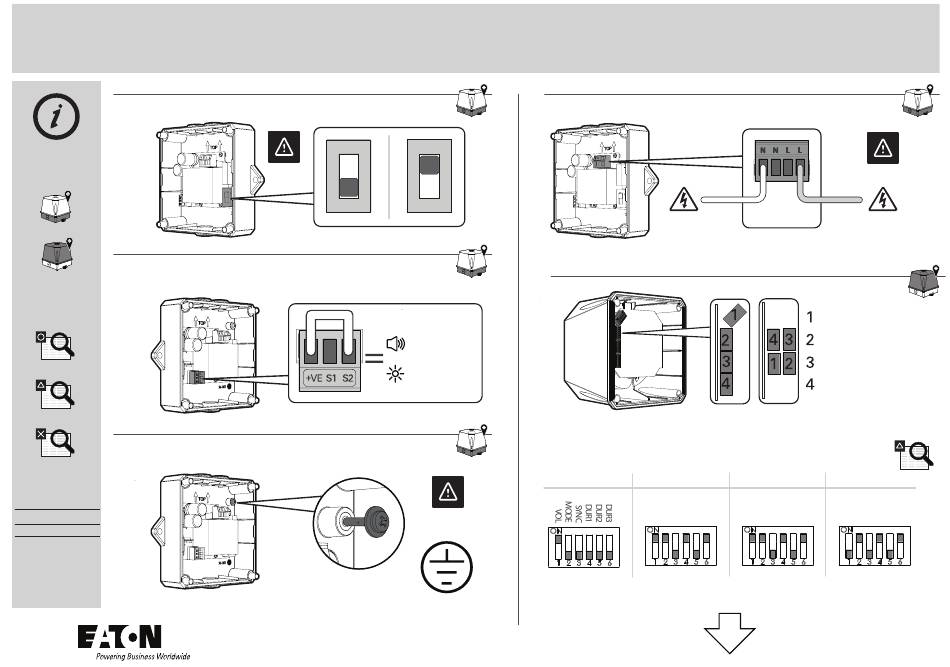

Quick install guide
X10 AC
115V/230V AC
Figure 1
LOCATION
Figure 2
Figure 3
CAUTION!
ISOLATE POWER
Only qualified personnel
may install, configure
or repair this product.
230
115
(60 FPM -
Flash Per Minute)
Figure 4
Figure 5
Mini & Midi
Factory Default Setting
1
2
TONE STAGE 1
Advanced Settings
Stage 1 Tone
Max Volume
BS Fire Tone
Standard Mode 3 Stage
Immediate Start
Time out Disabled
Maxi
Volume control
Tone selection - Stage 1
Tone selection - Stage 2/3/4
Beacon control
3
4
TONE STAGE 2, 3 , 4
BCN ST 1/2/3-4
Stage 2 BS Fire Tone
Beacon Pattern
Stage 3 PFEER Toxic
Stage 1 Off
Gas
Stage 2 1Hz Flash
(60 FPM - Flash per Minute)
Stage 3 Off
25-13925-E
Advertisement
Table of Contents
Related Manuals for Eaton X10
Summary of Contents for Eaton X10
- Page 1 Quick install guide X10 AC 115V/230V AC Figure 1 Figure 4 LOCATION Figure 2 Figure 5 Mini & Midi Maxi Volume control SETTINGS TABLE Tone selection - Stage 1 Stage 2 BS Fire Tone Tone selection - Stage 2/3/4 Stage 2 1Hz Flash...
- Page 2 (60FPM - Flash Per Minute) Stage 3 O Manual: Figure 7 SETTINGS TABLE For more information on how to further adjust and setup the Eaton X10 please refer to the manual: www.eaton.com/manuals/x10 0.55-0.65Nm Contact: Technical support Tel: +44 (0) 1633 628500 Email: FireCustomerService@eaton.com...
