Figure 4-4. Current Measurement
4.4

Disconnecting mEDBG

The target controller ATtiny817 can be completely separated from the mEDBG, but this requires some small
modifications to the board using a soldering iron. By removing the resistors in the sections shown in the figure below,
the mEDBG is completely disconnected from the target controller. To reconnect the mEDBG again, solder in 0Ω
resistors or solder in 100-mil headers on the header footprints and use wire-straps to connect the interfaces.

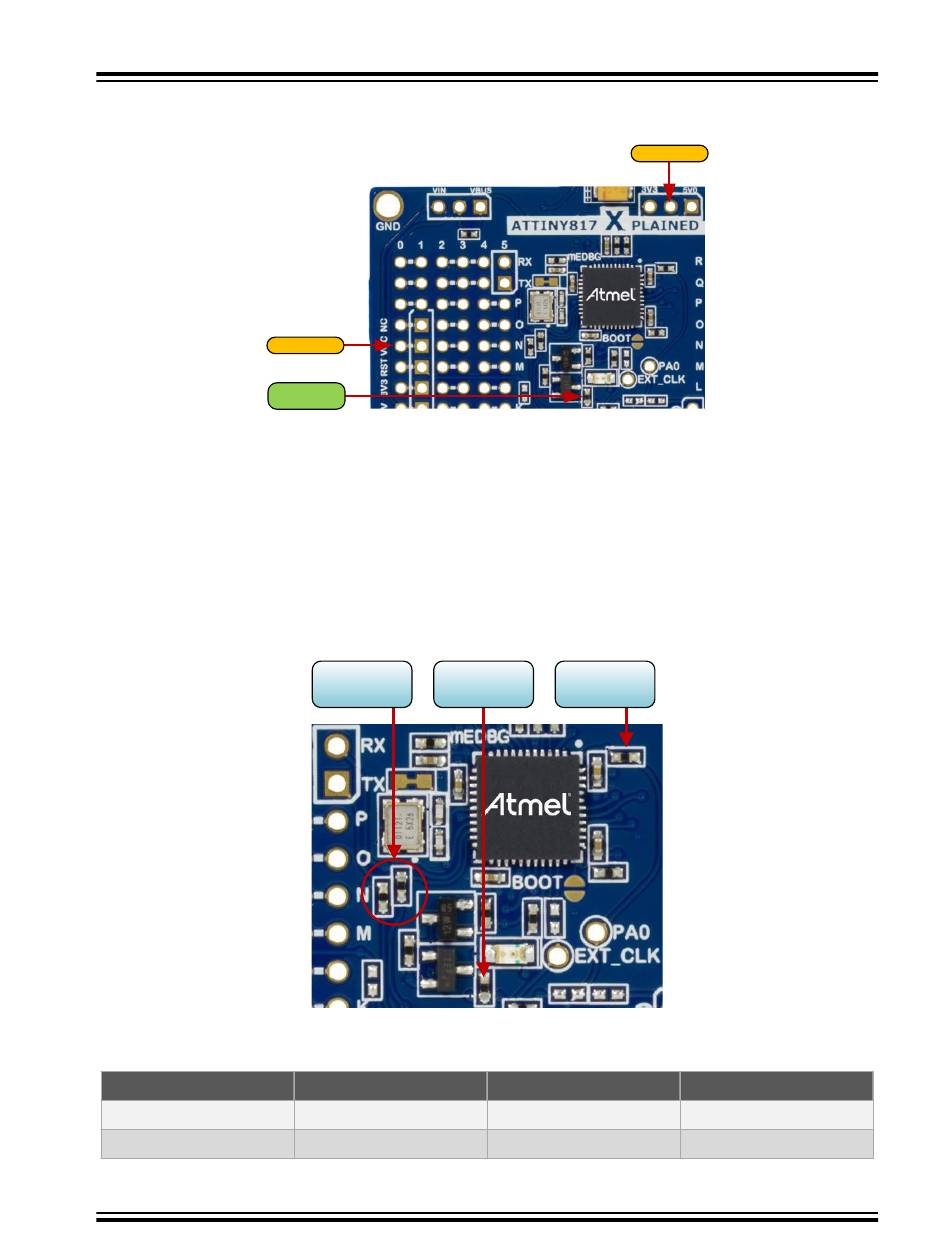

Figure 4-5. Kit Modifications
Table 4-7. mEDBG Connections
Designator
R104
R203
©
2019 Microchip Technology Inc.
VCC_TARGET
Remove
0-Ohm res istor
CDC
disconnect disconnect
Mounted
Yes
Yes
ATtiny817 Xplained Mini
Power UPDI
disconnect
From (mEDBG)
VCC_BOARD
UPDI
User Guide
Hardware User Guide
VCC_BOARD
To (ATtiny817)
VCC_TARGET
PA0 UPDI / RESET
