Altronix Trove T2KSK3F8 Installation Manual page 4

T2KSK7F12: Installation Instructions for Keri Systems Access Controllers
1. Fasten standoffs (provided) into pem configuration (A) or (B) of backplane (Fig. 2, pg. 3).
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 2a, pg. 3).
Note: Keri Systems NXT-2D-MSCNE and NXT-4D-MSCNE boards have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
3. Mount backplane to enclosure with hardware.
If use of NXTWI or NXTRM3 expansion boards is desired, there is no need to remove NXT-2D-MSCNE, NXT-4D-MSCNE or
NXT-4X4NE from the TKS2.
Keri Systems Access Controller Position Chart for the Following Models:
Keri Systems Board
NXT-2D-MSCNE, NXT-4D-MSCNE
NXT-4X4NE

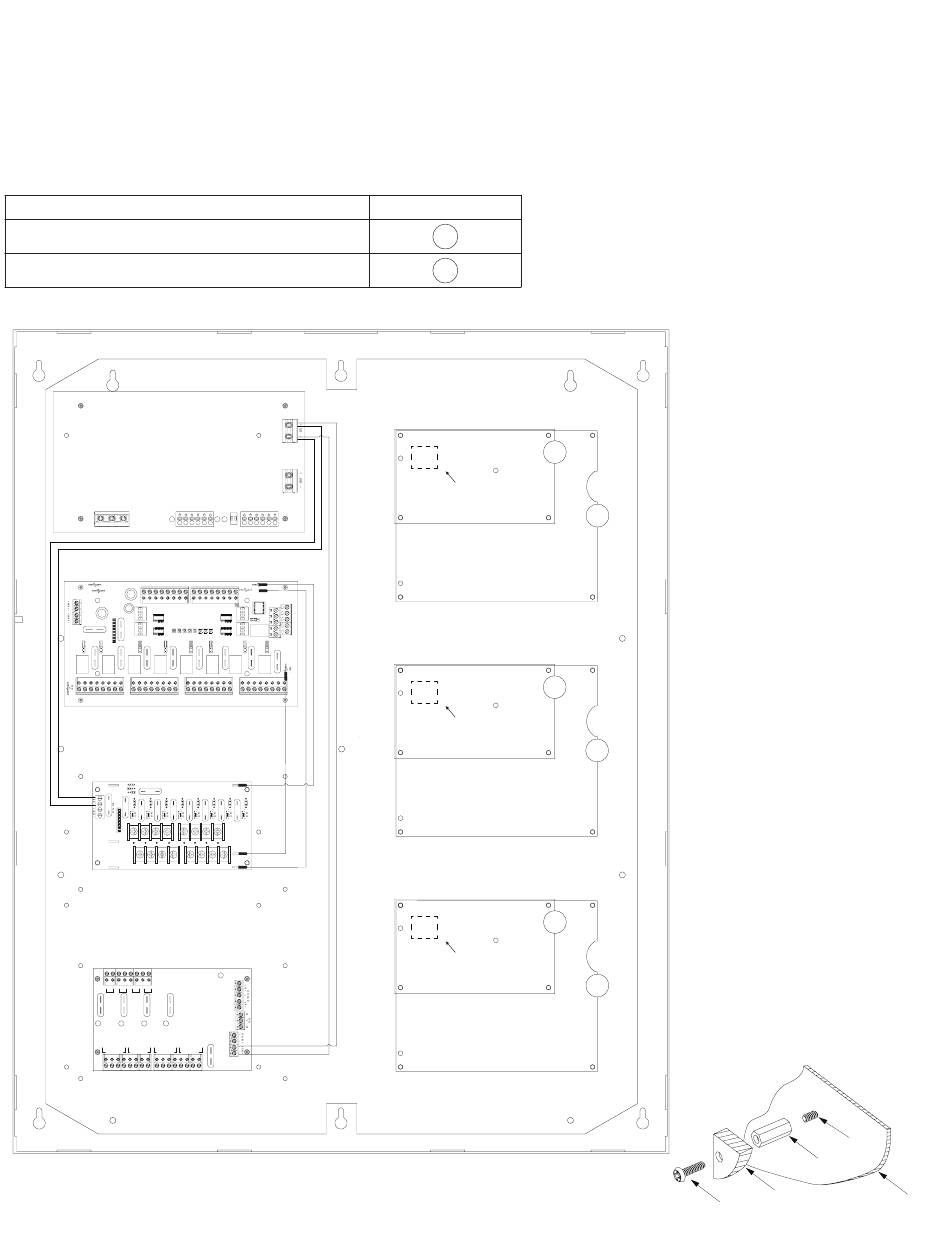

Fig. 2
Altronix
eFlow104NB
L G N
PWR1 +
PWR2 +
Altronix ACMS8
DM1 +
OFF IN1 Fuse
Altronix PDS8
IN1
10
IN2
10
3
3 3 3
P
OUT1 OUT2 OUT3 OUT4
Common (--- )
N
DM2 +
1 2 3 4
Common Power Outputs (NEG)
Altronix VR6 mounted under PDS8
TRIGGER
INPUT
IN GND IN GND IN GND IN GND
1 2 3 4
LED1 LED2 LED3 LED4
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
- 4 -
PWR1 +
PWR2 +
DM1 +
3 3 3 3
OUT5 OUT6 OUT7 OUT8
Common (--- )
DM2 +
5 6 7 8
TRG
Altronix
ACM4
MAIN
ACM4
ACCESS POWER
CONTROLLER
Pem Mounting
A
B
B
RJ45 Jack
B
RJ45 Jack
B
RJ45 Jack
A
A
A
Pan Head
Screw
Fig. 2a
Pem
Standoff
Keri Systems
Backplane
Board
Trove Keri Systems Kits
