Sargent Persona Passport 1000 Installation Instructions Manual

Mortise lock
Hide thumbs Also See for Persona Passport 1000:

Advertisement

Quick Links

Download this manual

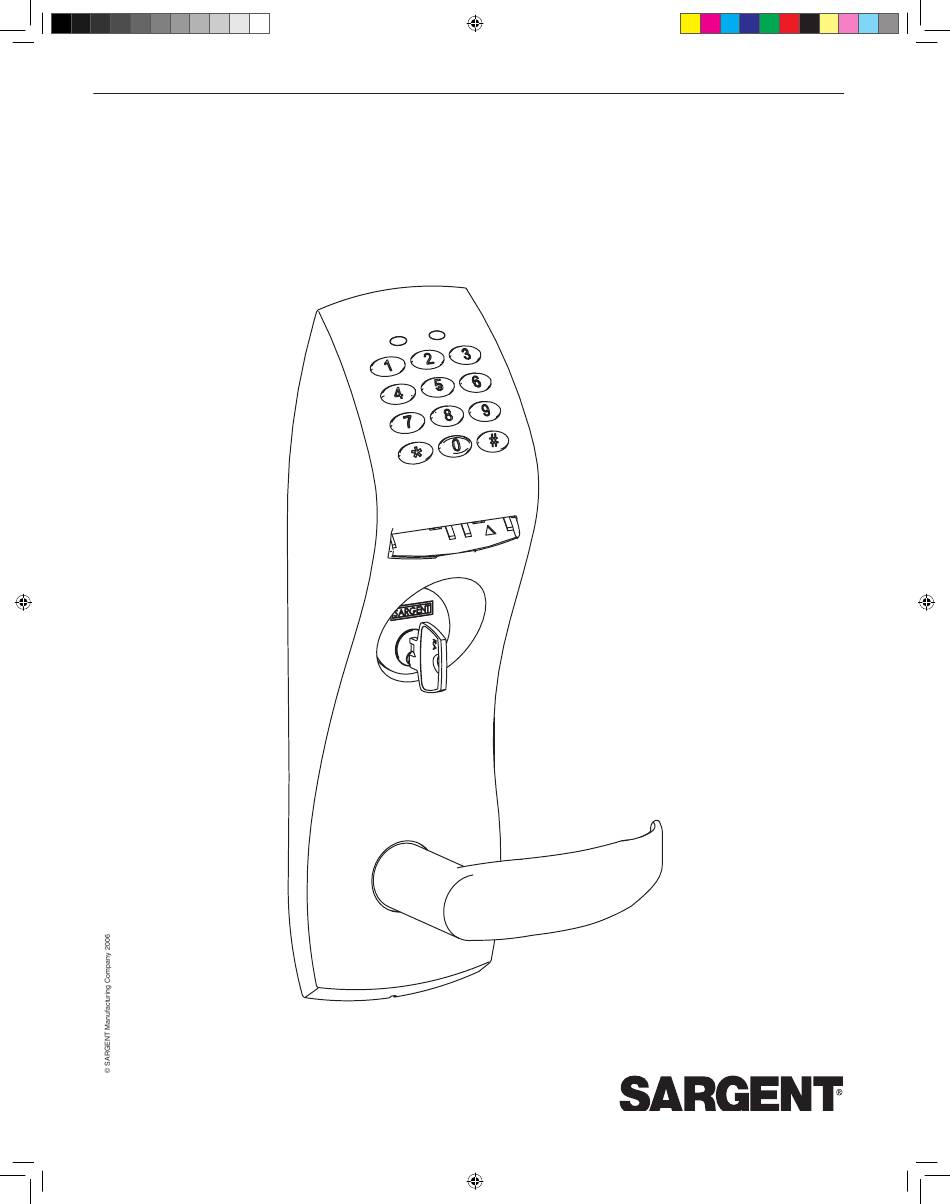

Installation Instructions For
Persona Passport 1000 Mortise Lock
A7807H
www.sargentlock.com
7807A_A7454C Low Profile Mortise Lock.indd 1
9/26/18 2:54 PM

Advertisement

loading

Related Manuals for Sargent Persona Passport 1000

Summary of Contents for Sargent Persona Passport 1000

  • Page 1 Installation Instructions For Persona Passport 1000 Mortise Lock A7807H www.sargentlock.com 7807A_A7454C Low Profile Mortise Lock.indd 1 9/26/18 2:54 PM...

  • Page 2: Table Of Contents

    Cet appareil numérique de la classe B est conforme avec la norme NMB-003 du Canada. To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only. Warning For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 2 9/26/18 2:54 PM...

  • Page 3: General Description

    Note that a weather protective gasket is recommended for the outdoor applications. The Persona Passport 1000 Offline version is a new breed of electronic lock providing offline card access control. This product is operated by six (6) “AA” alkaline batteries. SARGENT mortise locks are designed with quality components to provide high security, performance and durability.

  • Page 4: Parts Breakdown/Parts Table

    Persona Passport 1000 Mortise Lock Parts Breakdown For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 2 9/26/18 2:54 PM...
  • Page 5 8-32 x 7/16 PH FL HD Machine Screw 01-0297 TORX Pin HD Socket Key 52-0634 Grounding Assembly 52-0653 Gasket (Not Shown, See Page ?) For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 3 9/26/18 2:54 PM...

  • Page 6: Installation Instructions

    Mortised Thumb turn lever hole area Lock w/cylinder Lever handle hole Lever handle hole Deadbolt Override (Shown) Thru-bolt hole Latchbolt End Cap Guardbolt For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 4 9/26/18 2:54 PM...
  • Page 7 Connector and (Note: Latch can not be unscrewed) wires Front End cap Deadbolt Triangular slot Latchbolt Latchbolt Dead latch Rotate Outside of Door For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 5 9/26/18 2:54 PM...
  • Page 8 2. Feed keypad/card reader connector cable, programming connector cable, and the grounding harness through gasket then through hole in door. For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 6 9/26/18 2:54 PM...
  • Page 9 SARGENT must turn without rotated as shown interference. Fig. 1 Correct Incorrect Correct Incorrect Fig. 3 For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 7 9/26/18 2:54 PM...
  • Page 10 Fig. 3 Fig. 4 NOTE: Connectors go on only one way, do not offset connector and be sure they are completely seated. Fig. 1 For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 8 9/26/18 2:54 PM...
  • Page 11 3. Insert the #8-32 X 3/8” screw using security tool through inside escutcheon and thread into the fixed hinge plate. Note: All wires should be placed inside to avoid being pinched For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 9...

  • Page 12: Operational Check

    4. Inside lever retracts latch and deadbolt (if provided) After programming the new lockset, verify operation by inserting the mag strip card or by pressing the keys. For installation assistance, contact SARGENT at 800-810-WIRE (9473) CARD READER INSERTION VIEW 7807A_A7454C Low Profile Mortise Lock.indd 10...

  • Page 13: Lockset Programming

    • Otherwise, click “Programs” to launch the Programs list and then select the PERSONA LockLink™ icon: 2. Logging into the LockLink™ • Select your username from the list that appears For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 11 9/26/18 2:54 PM...
  • Page 14 7. Repeat this procedure for each lock to be programmed with lock data. For installation assistance, contact SARGENT at 800-810-WIRE (9473) 7807A_A7454C Low Profile Mortise Lock.indd 12 9/26/18 2:54 PM...
