Installation instructions

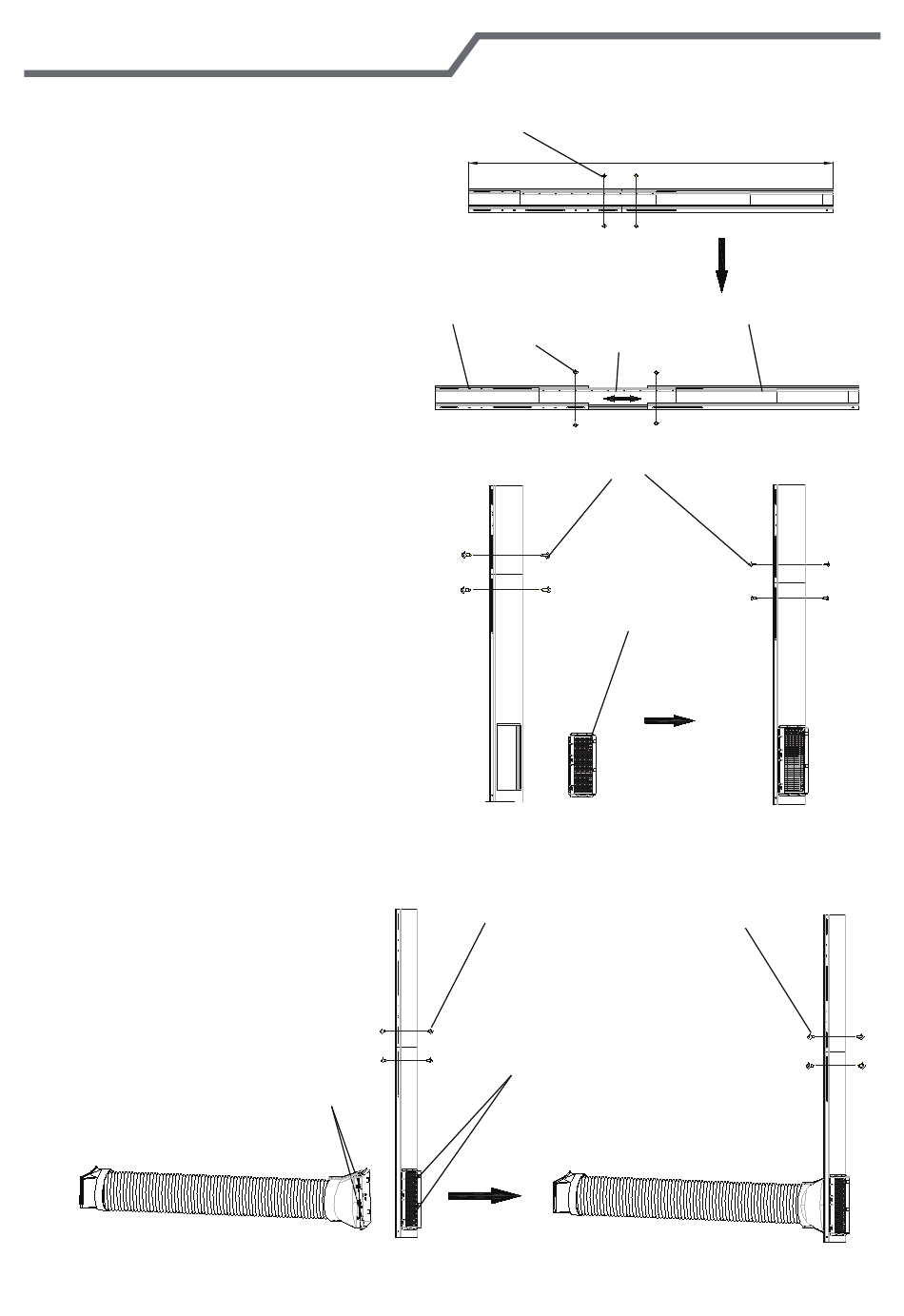

The length of rear plate 1 and rear
plate 2 can be adjusted according
to user's requirement. Loosen the
screws fixing the rear plate 1, rear
plate 2 and adjustable plate to move
the rear plate 2 and adjustable plate
(can slide freely in the sliding
groove of rear plate 1 and rear
plate 2) to the required length, and
then fix the rear plate 1 and
rear plate 2 with screws.
Install protective grille — aim the
protective grille at the air outlet of rear
plate 1 and then press the clasp of
protective grille inwards to fasten the
rear plate 1.
Install the exhaust hose sub-assy
at the rear plate — aim the rear
clip of exhaust hose sub-assy at
the air outlet of rear plate 1 and
then press the clasp of rear clip
into the groove of protective grille
firmly.
rear plate 2
screw
clasp of protective grille
rear clip
74
screw
This length can be adjusted
according to user's requirement
adjustable plate
(can slide in the
sliding groove of
rear plate 1 and
screw
rear plate 2)
screw
clasp of protective
grille
rear plate 1
screw
