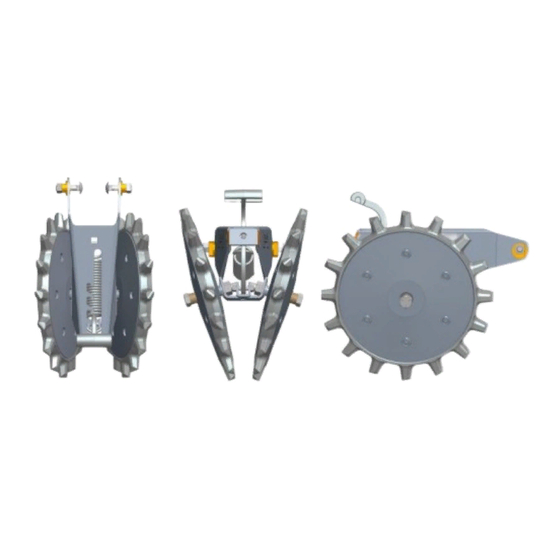

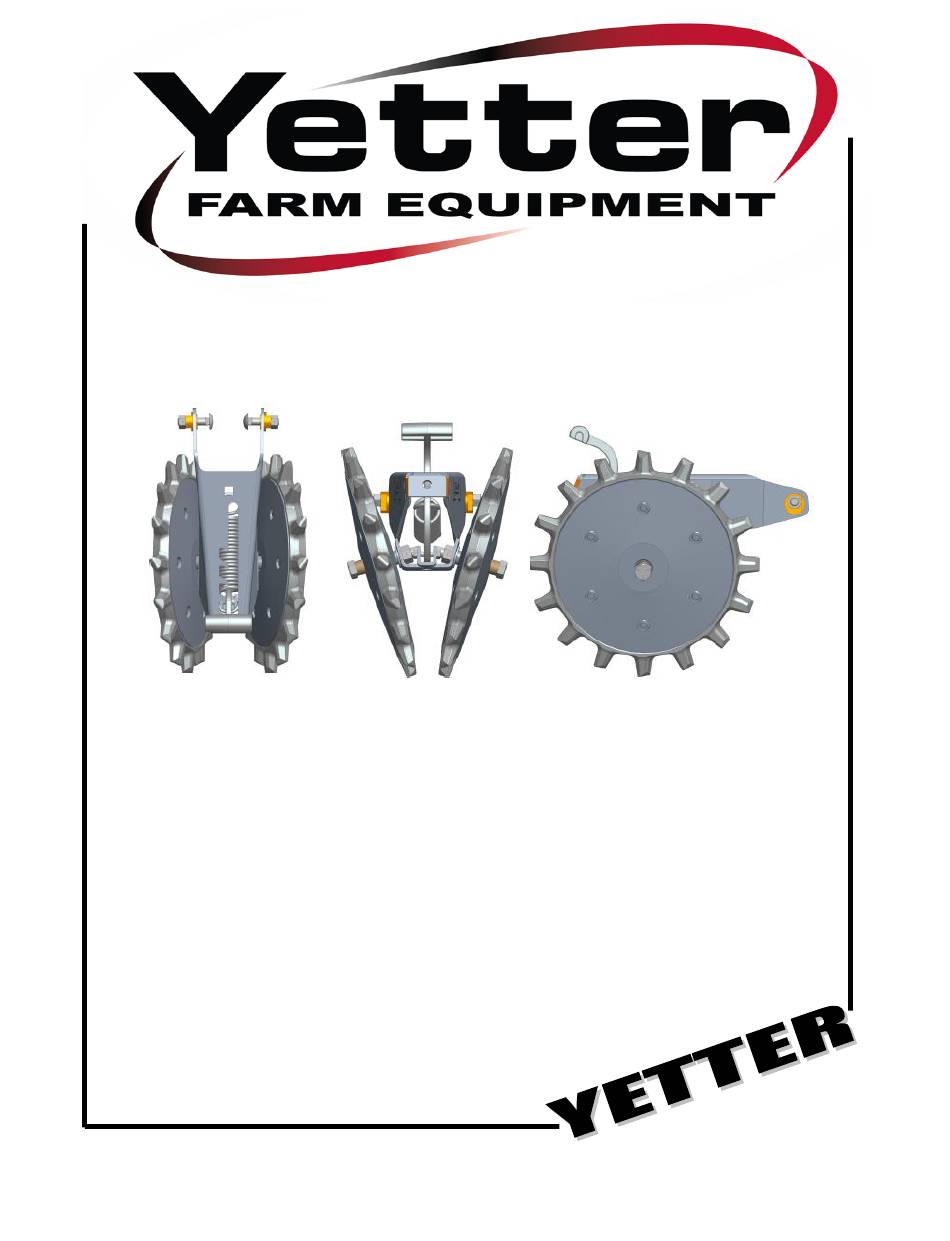

- Page 1 6200-184 CLOSE WHEEL ATTACHMENT ASSEMBLY OWNER’S MANUAL PART IDENTIFICATION ● 08/2020 2565-980 YETTER MANUFACTURING CO. Founded 1930 Colchester, IL 62326 Toll free: (800)447-5777. Fax: (309)776-3222 Website: yetterco.com E-mail: info@yetterco.com...
- Page 2 WARRANTY Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection.
- Page 3 BE ALERT! YOUR SAFETY IS INVOLVED WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY PRECAUTIONS. IT MEANS “ATTENTION – BE ALERT!” It is your responsibility as an owner, operator, or supervision to know and instruct everyone using this machine at the time of initial assignment and at least annually thereafter, of the proper operation, precautions, and work hazards which exist in the operation of the machine in accordance with OSHA regulations.
-
Page 4: Bolt Torque
PLEASE READ, VERY IMPORTANT SECURE PLANTER FRAME AGAINST UNWANTED LOWERING BY APPLYING THE LOCKING MECHANISM ON THE HYDRAULIC CYLINDERS! BOLT TORQUE Important: Over-tightening hardware can cause just as much damage as under- tightening. Tightening hardware beyond the recommended range can reduce its shock load capacity. - Page 5 ASSEMBLY INSTRUCTIONS “V” CLOSING WHEEL ADJUSTMENT WARNING: Raise planter to transport position and install all safety locks before adjusting closing wheels. Angled closing wheels trail behind the seed opener to close the seed trench left by the opener. Adjusting spring pressure permits proper firming of the soil beside the seed rather than directly above it.
- Page 6 Two mounting holes for each closing wheel are provided in the closing wheel arm. To stagger the closing wheels, remove one closing wheel from the arm and re-assemble it in the other hole in the closing wheel arm. LUBRICATION Oil the closing wheel bushings weekly with a general-purpose oil. (CLOSING WHEEL ASSEMBLY SHOWN NOT ASSEMBLED TO ROW UNIT FOR VISUAL CLARITY)
-
Page 7: Assembly & Parts Identification
