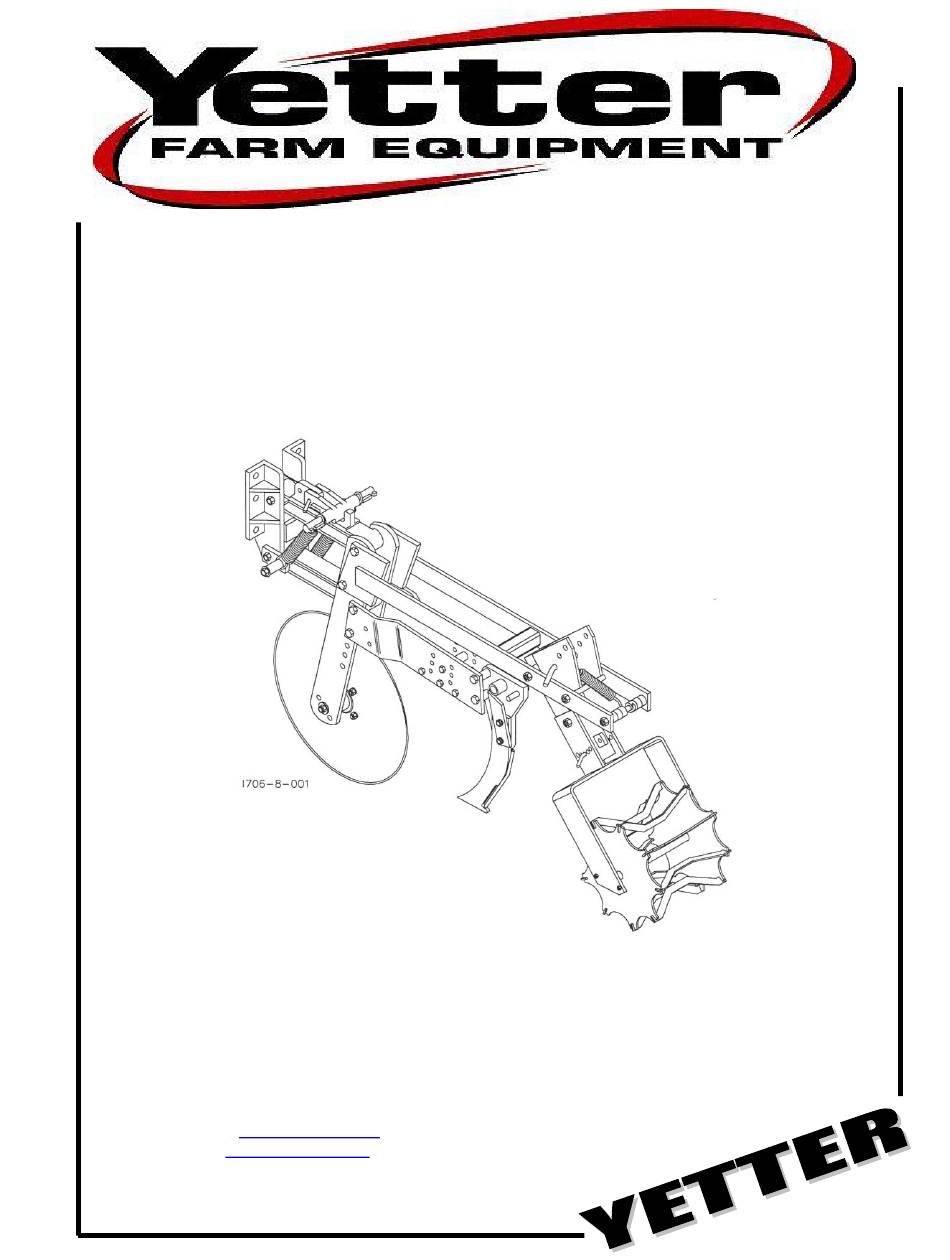

ROLLING BASKET ATTACHMENT 2984-026/2984-027 OPERATOR’S MANUAL PART IDENTIFICATION 2565-738_REV_A 02/2024 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com... -
Page 2: Foreword
WARRANTY Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection. -
Page 3: Safety Symbols And Meanings
SAFETY A brief description of signal words that may be used in this manual: CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices. WARNING: Denotes a specific potential hazard. DANGER: Denotes the most serious specific potential hazard. SAFETY PRECAUTIONS You can make your farm a safer place to live and work if you observe the safety precautions given. -
Page 4: Table Of Contents
TABLE OF CONTENTS Cover Page……….…………………………………………..………………………...1 Foreword….…………………………………….………………….…………………...2 Safety Symbols and Meanings……………………………………….……………..3 Table of Contents……….…………………………………………………..………….4 Torque Specifications……………………………………………….…..……………..4 Adjustments……..….………..…………………………………………..…….……….5 Assembly Instructions….……….…..…….………………..………………..……..6-10 Maintenance….……………………………..…………………………………….…...11 Parts Identification…….………………………………..………….………...…..12-14 Trouble Shooting…………………………………………………………….………...15 The following table shows torque in ft. lbs. for coarse thread hardware. Lubricate all bearings and moving parts as assembled and make certain that they work freely. WARNING: Never work around the toolbar/implement while in a raised position without using safety lockups. -
Page 5: Adjustments
ADJUSTMENTS ROLLING BASKET ATTACHMENT 1) DOWN PRESSURE – SPRING DOWN PRESSURE CAN BE INCREASED BY MOVING SPRING TO HOLE “A”. DECREASE DOWN PRESSURE BY PLACING SPRING IN HOLE “C”. 2) DISENGAGE ROLLING BASKET ATTACHMENT – LIFT BASKET AND INSERT PIN. SEE DIAGRAM BELOW. -
Page 6: Assembly Instructions
ASSEMBLY ROLLING BASKET ATTACHMENT 2984-026 ATTACH ROLLING BASKET MOUNT BRACKET TO THE “C-SHANK” USING THE ½” X 2” X 2 ¼” U-BOLTS, SECURE WITH ½” LOCK HEX NUTS. 2984-027 ATTACH ROLLING BASKET MOUNT BRACKET TO THE MAVERICK ™ OPENER USING THE 5/8” X 6 ½” HEX... - Page 7 ASSEMBLY ATTACH THE PIVOT BRACKET AND BUSHING (APPLY “NEVER SEIZE” LUBRICATION TO THE BUSHING BEFORE INSTALLING) TO THE MOUNT BRACKET USING THE 5/8” X 8” HEX BOLT AND 5/8” LOCK HEX NUT.
- Page 8 ASSEMBLY LIFT THE PIVOT BRACKET AND INSTALL THE 5/8” X 8” HEX BOLT AND 5/8” LOCK HEX NUT. ATTACH THE EXTENSION SPRING TO THE MOUNT BRACKET. USE THE 5/8” X 8” HEX BOLT, (6) ¾” SPACERS AND 5/8” LOCK HEX NUT.
- Page 9 ASSEMBLY INSTALL THE SPRING ADJUSTMENT PIN AND SECURE WITH THE 1/8” HAIRPIN COTTER. USE THE LIGHTEST SPRING PRESSURE THAT WILL PROVIDE A SATISFACTORY BERM. ATTACH THE BASKET MOUNT BRACKET TO THE PIVOT BRACKET USING THE 5/8” X 4 ½” HEX BOLT AND 5/8”...
- Page 10 ASSEMBLY INSTALL THE BASKET WITH FLANGE MOUNT BEARINGS TO THE BASKET MOUNT BRACKET USING (4) 7/16” X 1 ½” HEX BOLT AND 7/16” LOCK HEX NUT. CENTER THE BASKET IN THE BASKET MOUNT BRACKET AND “TRIPLE TIGHTEN” THE SET SCREWS.
-
Page 11: Maintenance
MAINTENANCE ALWAYS LUBRICATE THE IMPLEMENT THOROUGHLY BEFORE TAKING IT TO THE FIELD. ALWAYS LOWER THE IMPLEMENT UNTIL ALL SHANK POINTS REST ON THE GROUND. LUBRICATE FITTINGS AND BUSHINGS AS INDICATED IN THE DIAGRAM BELOW. BE SURE GREASE FITTINGS ARE FREE FROM DIRT AND PAINT SO THE LUBRICANT IS CERTAIN TO ENTER THE PROPER AREAS. -
Page 12: Parts Identification
PARTS INDENTIFICATION... - Page 13 PARTS INDENTIFICATION...
- Page 14 PARTS INDENTIFICATION ITEM PART NO. DESCRIPTION 1310-333 FLANGE MOUNT BEARING 7/16-14 X 1.5” CAP SCREW GRADE 5 2502-266 2502-334 5/8-11 X 4.5 CAP SCREW GRADE 5 2520-267 7/16-14 LOCK NUT 2520-459 5/8-11 LOCK NUT GRADE 5 2570-448 BOWTIE COTTER PIN 2984-213 ROLLING BASKET 2984-267...
-
Page 15: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION BERM SIZE OR SHAPE DISC SEALER BLADES NOT AT ADJUST BLADES TO IS NOT UNIFORM EQUAL ANGLE EXACT SAME ANGLE INSUFFICIENT SPRING PRESSURE CHANGE SPRING ON ROLLING BASKET ATTACHMENT TO INCREASE DOWN PRESSURE (SEE ADJUSTMENTS) LARGE CLODS OR CHUNCKS INSUFFICIENT SPRING PRESSURE CHANGE SPRING... - Page 16 East, the South, the West and now north into Canada. We’re even getting orders from as far away as Australia and Africa. So, when you buy Yetter products . . .you’re buying a name that’s recognized. A name that’s known and respected. A name that’s become a part of American agriculture and has become synonymous with quality and satisfaction in the field of conservation tillage.
