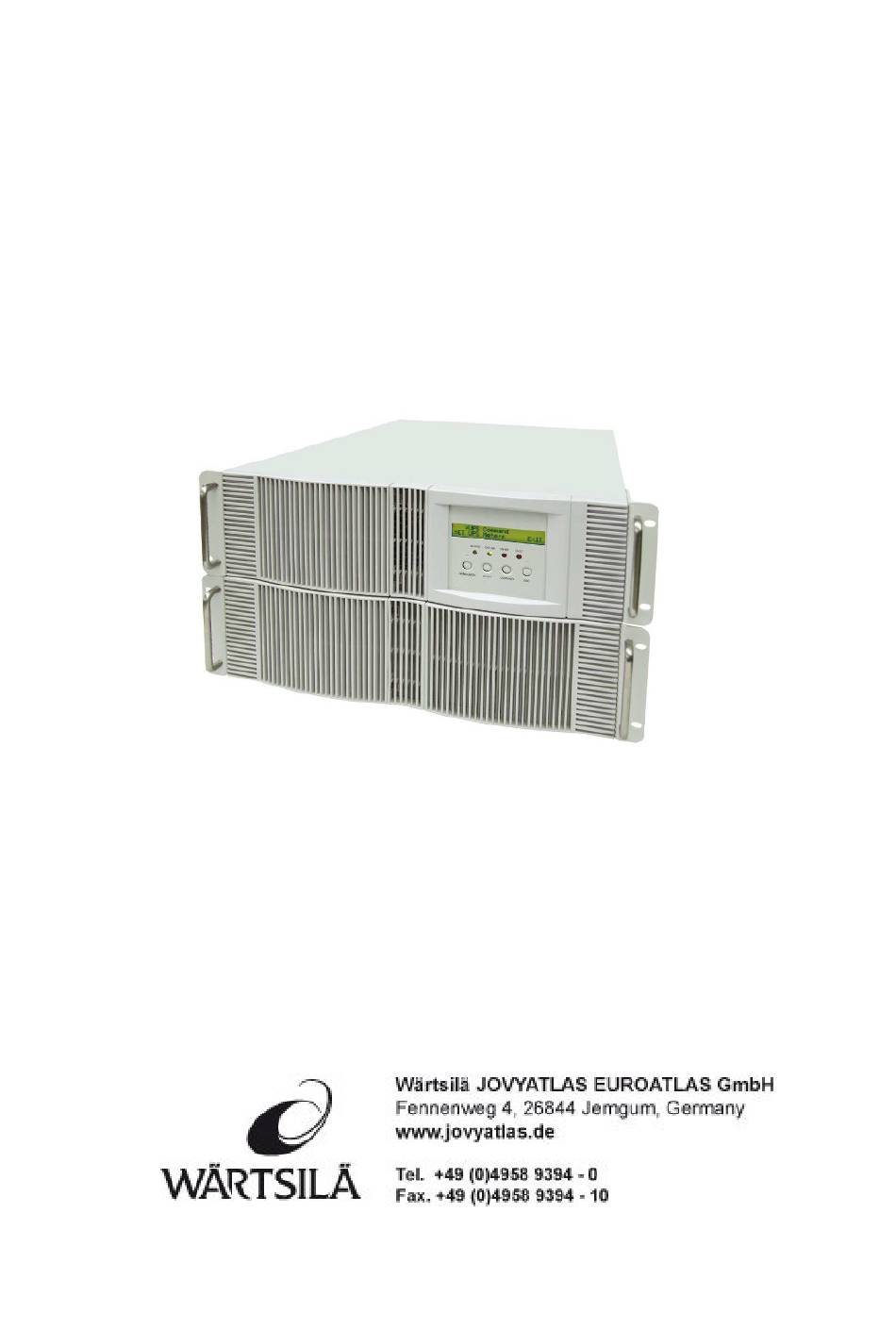

- Page 1 Operating Manual UPS - System POWERMASTER S 6000-P BAX 4469E JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 1 -...
- Page 2 Index Date Name Remarks 2012-04-23 Chr. Fechteler Original 2014-06-13 Chr. Fechteler 14/349 2014-11-06 Chr. Fechteler 14/608 2015-07-22 Chr. Fechteler 15/381 2015-09-25 Chr. Fechteler 15/494 JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 2 -...
- Page 3 Any passing on, duplication and/or transfer by means of electronic or mechanical means, also extracts thereof, of this operating manual, requires express prior written permission from WÄRTSILÄ JOVYATLAS EUROATLAS GmbH. Copyright WÄRTSILÄ JOVYATLAS EUROATLAS GmbH. All rights reserved. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 3 -...
-
Page 4: Table Of Contents
Table of Contents GENERAL NOTES ................................5 DESCRIPTION OF THE SYSTEM ............................5 GENERAL DESCRIPTION OF THE FUNCTION ........................6 TECHNICAL DATA ................................8 VIEWS OF JOVYATLAS POWERMASTER S 6000-P ......................9 – ............................... 9 RONT POWERPACK S 6000 ........................10 RONT ELECTRICAL CONNECTION ............................ -
Page 5: General Notes
(online operation). Any disturbances in the mains such as voltage peaks, voltage drops, harmonic distortions or noises etc. are filtered out. The installed battery is constantly being charged JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 5 -... -
Page 6: General Description Of The Function
The output of the UPS unit also carries a voltage in the case of a power failure! This is why the installation engineer must mark the outputs and power sockets on the UPS unit clearly according to EN 62040. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 6 -... - Page 7 In the case of a fault occurring in the inverter or an overload, a switch-over device switches the load back to the mains. This means that, in the case of a power failure, the connected consumers will no longer be supplied with power. Figure 3: Block Diagram „Fault Inverter“ JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 7 -...
-
Page 8: Technical Data
66 kg incl. batteries incl. battery UPS unit POWERMASTER S 6000 P Battery rack POWERPACK S 6000 (according to backup time: 1-3) Scope of delivery Hardware/software Manual BAX 4469E Interface cable Software UPSMON JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 8 -... -
Page 9: Views Of Jovyatlas Powermaster S 6000-P

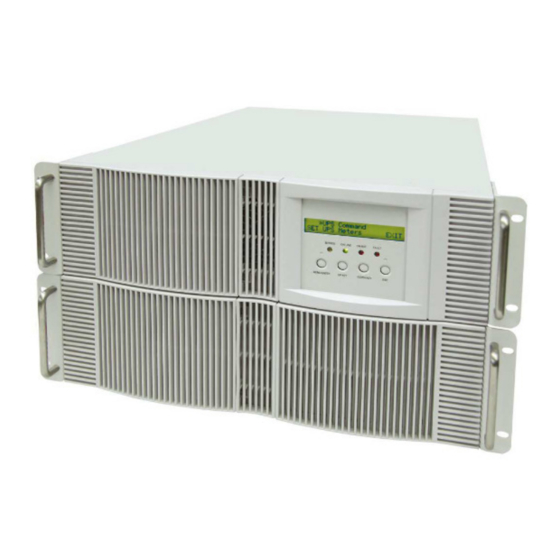

Views of JOVYATLAS Powermaster S 6000-P Front – and Rear View FAN COVER ON/OFF FUNC STATUS ON-LINE ON-BAT BYPASS FAULT ENTER ESCAPE Panel Mounting Angles Figure 4: Front View Figure 5: Rear View and Terminal Block JOVYATLAS POWERMASTER S 6000-P... -
Page 10: Front - And Rear View Powerpack S 6000
Figure 7: Rear View POWERPACK S 6000 Position Designation Cover Plate, left and right (removable) Mounting- and Retaining Bracket for 19“ mounting (removable) Battery cable UPS Battery Jack (for further Battery Packs) JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 10 -... -
Page 11: Electrical Connection
9. Connect the battery pack to the battery jack on the rear side of the ups. 10. Switch on the output switch. 11. The electrical connection is herewith already done. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 11 -... -
Page 12: Using The Reverse Voltage Protection
If the reverse voltage protection is not used, please connect the inputs like shown in picture below: CN2-1 CN2-2 Reverse CN2-3 Voltage Protection CN2-4 CN2-5 Figure 9: Without using Reverse Voltage Protection JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 12 -... -
Page 13: Connection Of External Battery
Paralleling of three UPS´s: One cable will be connected from UPS 1 to UPS 2, than the next cable from UPS 2 to UPS 3. A ring compound is not allowed. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 13 -... - Page 14 MAINS Figure 11: Connection of a Parallel-System Load JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 14 -...
-
Page 15: Commissioning The Ups
3. Push Button “MENU/ENTER” to choose Menu “UPS runs to Bypass” 4. Open all external Switches 5. Open Output Breaker 6. Open Input Breaker All Display Announcements and LED are dark JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 15 -... -
Page 16: Commissioning The Ups In Parallel Operation
5. Push button “Menu/Enter” on display panel, to select menu “UPS Command” 6. Now push button “Menu/Enter” to select “Start UPS ON/OFF” 7. Now push button “Menu/Enter” to select “UPS runs to shutdown” 8. Must be done at all UPS JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 16 -... -
Page 17: Operation- And Displaypanel
3. “DOWN KEY” button: Use “DOWN KEY” button to scroll down the various menus. 4. “ESC” button: Use “ESC” button to return to the superior-menu or to cancel the function. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 17 -... - Page 18 1 / 2 / 3 DISABLE COLD START ENABLE LANGUAGE ENGLISH FAULT REC. TIME FAULT-RECORD CLEAR FAULT REC LCD VERSION UPS-INFORMATION CORE VERSION UPS-SERIAL No. Figure 13: System block, main and sub - menus JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 18 -...
-
Page 19: Parameter Of Ups
Quantity of used Battery Packs BAT PACK NUM = 3 Quantity of used UPS Parallel No.: 3 Battery Voltage Pos. DC BUS = 370V Battery Voltage Neg. DC BUS = 370V JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 19 -... -
Page 20: Troubleshooting
The UPS has an alarm-memory for up to four messages. These can be read by means of the menu of the panel. The time-format is as follows: ddd:hh:mm:ss ddd = Current uptime of the UPS hh:mm:ss = Hours : Minutes : Seconds JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 20 -... -
Page 21: Service-Information
Pin assignment for the RS 232 interface RS 232 interface (Rear side of UPS) SIGNAL DIRECTION FUNCTION Output TxD output Input RxD/inverter out Input Graphic 14: RS232 interface JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 21 -... -
Page 22: Special Equipment
STOP switch must be reset and the UPS restarted. There is still a voltage inside and at the terminals even after the electronic STOP function was activated. Graphic 15: Electronic STOP JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 22 -... -
Page 23: Volt-Free Messages Via The Relay Card (Optional)
Output 7 – 5 opened closed Free Power failure Output 9 – 5 opened closed When using opening contacts the contact positions must be set appropriately opposed to each other!! JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 23 -... -
Page 24: Circuit Diagram Relay Board
Circuit diagram relay board JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 24 -... -
Page 25: Powerpack S 6000
When the mains power is restored, the consumers begin again to be supplied with power via the inverter. The inverter is switched on again automatically. The battery is charged up again automatically after restoration of the mains power. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E - 25 -... -
Page 26: Service Life Of Batteries
In case of units which cannot be controlled directly, consider the use of a remote control facility. The lifetime of the built-in fans is normally rated for 20.000hours. Please consider a replacement within that period. JOVYATLAS POWERMASTER S 6000-P BAX 4469 E...
