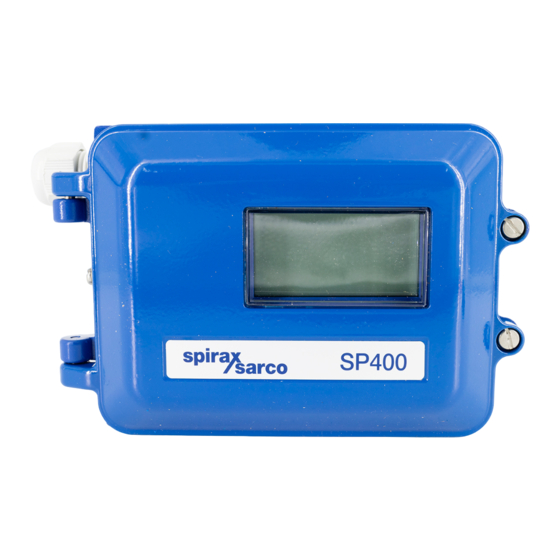

Spirax Sarco SP400 Installation And Maintenance Instructions Manual

Electropneumatic smart positioner
Hide thumbs Also See for SP400:
Table of Contents

Advertisement

Quick Links

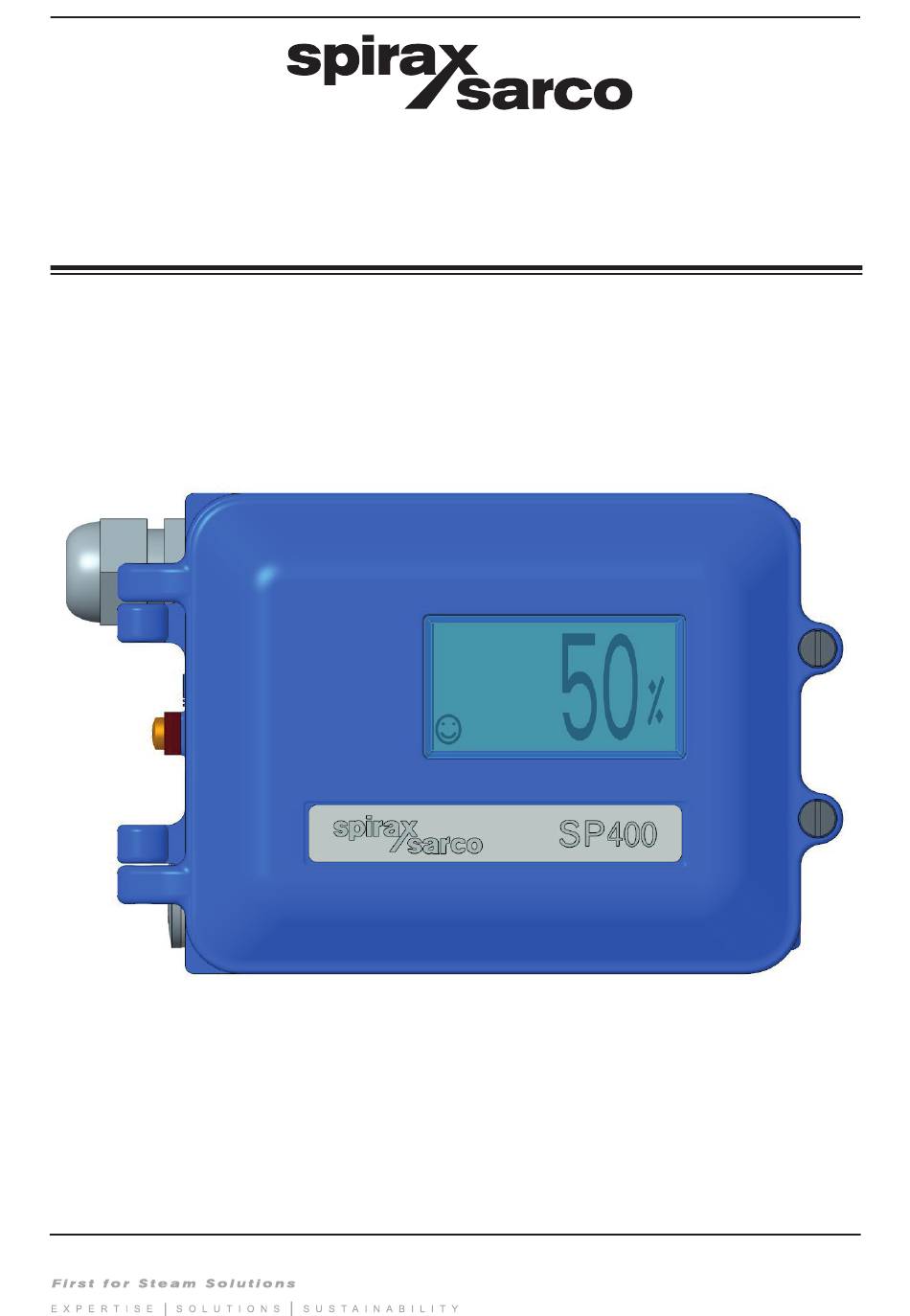

3.568.5275.400
IM-P343-37
CTLS Issue 4
SP400
Electropneumatic Smart Positioner
Installation and Maintenance Instructions
© Copyright 2020
1
IM-P343-37 CTLS Issue 4
Printed in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spirax Sarco SP400

Summary of Contents for Spirax Sarco SP400

  • Page 1 3.568.5275.400 IM-P343-37 CTLS Issue 4 SP400 Electropneumatic Smart Positioner Installation and Maintenance Instructions © Copyright 2020 IM-P343-37 CTLS Issue 4 Printed in Italy...
  • Page 2 SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 3: Table Of Contents

    4. Options Pressure gauge block 5. Installation Mounting the SP400 positioner - General informaton Sequence for mounting an SP400 positioner to a linear actuator Sequence for mounting an SP400 positioner to a rotary actuator Air supply and connections 6. Electrical connections...
  • Page 4 10. Maintenance and troubleshooting 10.1 Air supply quality 10.2 Fitting replacement filter plug kit 11. Default values and program settings 12. Glossary of display data 12.1 Main menu display functions 12.2 Sub-menu display functions SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 5: Safety Information

    2.2 Electrical safety requirements The SP400 is a class III product which must only be powered from Safe Extra Low Voltage (SELV) sources whether by virtue of a 4 - 20 mA control signal or from a separate power supply. Similarly all signal circuits connected to an options board must operate within the confines of SELV systems.

  • Page 6: Technical Information

    3. Technical information 3.1 Description The SP400 smar t valve positioner is loop powered from a 4 - 20 mA input signal to provide accurate adaptive positional control of pneumatic actuated linear and quarter turn valves. Precise control is maintained through valve position feedback that automatically varies the pneumatic output pressure to overcome the effects of stem friction and flow forces to maintain desired valve position.
  • Page 7 Indicates that you're accessing the main programming menus Indicates that the positioner is in manual mode Indicates that the positioner is running the autocalibration Indicates that you're accessing the SET menu Indicates that the positioner is in automatic mode SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 8: Technical Data

    IP65 Characteristics Linear Resolution (maximum) 0.1% F.S Shut-off Shipping weight 2.2 kg 3.3 Materials Part Material Finish Case and cover Die cast aluminium Anti-corrosive paint to RAL5010 Magnet bracket Die cast aluminium SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 9: Programmable Functions

    Split range range 4 - 13 mA HIGH range 11 - 20 mA 0.5% 1.5% Deadband 3.0% 5.0% Reset Resets all programmed values to default settings Input signal Visualisation of input mA signal SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 10: Options

    4. Options 4.1 Pressure gauge block An optional pressure gauge block (Figure 3) can be fitted onto the SP400 positioner which includes two pressure gauges indicating air supply pressure and output air signal pressure to the actuator. The pressure gauge block can be retrospectively fitted using 2 off M5 socket head screws. Ensure that the gauge block air connection 'O' rings are correctly located before tightening.

  • Page 11: Installation

    VDI/VDE 3845 compliant mounting kit for rotary actuators. 5.1.2 The SP400 has an enclosure rating of IP65 and should be installed in a location that will not exceed its ambient temperature limits of -10 °C minimum and +80 °C maximum.

  • Page 12: Sequence For Mounting An Sp400 Positioner To A Linear Actuator

    5.2 Sequence for mounting an SP400 positioner to a linear actuator Fig.4 Pillar mounting kit for a linear actuator 5.2.1 Loosely attach the magnet bracket (2) to the valve/actuator connector (refer to Figures 4 and 5). Be sure it is positioned horizontally (as shown in Figure 5).
  • Page 13 Spirax Sarco actuator the correct position is impressed on the magnet bracket (Figure 7). 5.2.3 If you’re not using a Spirax Sarco actuator, slide the bracket till the distance 'A' between the center of the magnet and the inner side of the mounting plate is 25 mm (Figure 8).
  • Page 14 Loosely attach the positioner mounting plate to the actuator as shown in the following pictures: for the pillar actuator (Figure 9), and for the yoke actuator (Figure 10). 5.2.5 Locate the protection plate onto the back of the SP400 positioner housing and fix in place (Figures 11 and 12). Mounting plate...
  • Page 15 Attach the positioner mounting plate to the positioner as shown in Figures 13 and 14. 5.2.7 Adjust the vertical position of the SP400 positioner and mounting plate assembly, by sliding it up or down on the pillar style actuators, ensuring that the positioner is roughly centred on the actuator/valve stroke (Figure 10).

  • Page 16: Sequence For Mounting An Sp400 Positioner To A Rotary Actuator

    5.3 Sequence for mounting an SP400 positioner to a rotary actuator 5.3.1 Assembly for fitting an SP400 on to a ¼ turn valve. Fig. 17 Mounting kit SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 17 Fig. 19 Fig. 18 Fig. 20 SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 18 Assembled Fig. 21 Fig. 22 SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 19 View from the bottom of the positioner - Magnet orientation for 15° clockwise actuator. 15° 90° 120° Fig. 24 View from bottom of the positioner - Magnet orientation for anti-clockwise 15° actuator. SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 20: Air Supply And Connections

    The filter/regulator should have a coalescing filter or suitable compressed air pipework is used. ¼" NPT air signal to actuator (output 1) ¼" NPT air supply (supply) Fig.25 SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 21: Electrical Connections

    6.2 Wiring diagrams 6.2.1 Terminal block MENU MANUAL AUTOS AUTOMATIC TUNE AUTOSTROKE keep pressed SP400 Fig. 26 Pole Description Not used 4-20 mA current signal input Mainboard Not used Not used Not used SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 22 6.2.2 Single loop applications The SP400 is loop powered using the 4 - 20 mA input signal source providing a minimum signal of 3.6 mA can be maintained. Minimum current 3.6 mA Maximum current 30 mA Maximum voltage drop < 7 V...

  • Page 23: Quick Start Procedure

    Provide a minimum input signal of 3.6 mA to the positioner. SET-UP NOW should be displayed.w 7.1.3 Ensure that upstream isolation valves are closed. Press and hold key for 3 seconds to advance to SP400 MENU. The display will count down the 3 seconds. 7.1.4 Press to advance to MANOP.

  • Page 24: Programming Flow Chart

    Manual operation RETRN PSWRD (MCTL) MANOP % Travel Autostroke activate (TRAVL AUTOS (AUTOS) 0-100% / 100-0%) Note: SET and RUN can only be accessed on completion of a successful autostroke (AUTOS) Fig. 29 SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 25 3 seconds enter Enter Auto return Clear stored values (RESET) Recall stored values (RETRN) Retain temporary values (RTAIN) C-CAL VALVE DBAND SPLIT RANGE CTRLA AUTO mA INPUT OPERATION (% TRAVEL) RETURN (To SP400 MENU) SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 26: Programming And Commissioning

    The positioner fitted to this control valve requires programming. A minimum input signal of 3.6 mA is required to power the positioner. To program the positioner it is necessary to enter SP400 MENU and carry out an autostroke commissioning routine (AUTOS) prior to putting the control valve into automatic operation.

  • Page 27: Sp400 Menu

    Programming notes To view the version of the embedded software (VER-.--) press key. key to return to SP400 MENU. The display will automatically return to SP400 MENU after 10 seconds. Press Press and hold the key for 3 seconds to access the PSWRD menu.
  • Page 28 9.2.2 PSWRD menu This menu allows the user to upgrade an SP400 to an SP500 smart positioner. Contact our offices for further details. 9.2.3 RETRN - RTAIN - RESET • Programming notes Provides the facility to restore previous permanently stored values (RETRN), to retain values stored in the temporary memory (RTAIN) or to reset all values to factory default settings (RESET).

  • Page 29: Manop

    Manual control is also useful during normal operation to manually control the valve position as a commissioning aid or in the event of input signal failure. SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 30 100% 20 mA 20 mA In this way a perfect match is achieved between the setpoint of the PLC and the setpoint of the of the SP400 (i.e. the input current read by the SP400). SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 31: Autos - Automatic Autostroke Commissioning

    Autostroke commissioning will take approximately 1 to 3 minutes to complete depending on air pressure and actuator size etc. Autostroke commissioning must be carried out on start-up or at any other time if the valve performance is not satisfactory. SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 32 Fig. 33 2-port valve normally closed - TRAVL setting = 0 to 100% Display = 0% Display = 100% Fig. 34 2-port valve normally open - TRAVL setting = 0 to 100% SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 33 Fig. 35 2-port valve normally open - TRAVL setting = 100% to 0% Display = 100% Display = 0% Fig. 36 2-port valve normally closed - TRAVL setting = 100% to 0% SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 34 DISPLAY = 0% DISPLAY = 100% TRAVL setting = 100 to 0% TRAVL setting = 100 to 0% DISPLAY = 100% DISPLAY = 0% Fig. 38 3-port valve and spring retract actuator SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 35: Set - Setting Of Valve Functions

    (minimum and maximum) and to split range the input signal. More detailed information is provided for each SET function. SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 36 Selection of direct or reverse action changes the direct of valve plug movement relative to the input signal. Refer to Figures 40 and 41 for further guidance. Increasing input signal Increasing input signal Fig. 40 Fig. 41 Direct action (DIR) Reverse action (REV) SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 37 20 mA 100% (TRAVL) 100% 100 - 0% Manual Selection Automatic determintation Manual Selection of required of required % travel Control Action Spring action only affects (TRAVL) (CTRLA) the rest or fail-safe position SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
  • Page 38 This function is used when 2 positioners are on the same current loop. One set to LOW, the other set to HIGH. When the current rises beyond 11 mA, the second valve starts to open giving its contribution to the overall flow. A single current signal drives 2 valves. SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 39: Run - Automatic Operation

    The valve will move to a position as dictated by the input control signal. To alter or check SET or TUNE values it is necessary to return to the SP400 MENU. Press and hold key for 3 seconds to return to the SP400 MENU. The display will count the 3 seconds.The positioner will vent the actuator and the valve will travel to its fail safe position.

  • Page 40: Air Supply Quality

    6 to 12 months depending on the air quality and valve usage. A spare filter plug kit can be obtained from Spirax Sarco that includes: filter plug, plus 3 off 'O' rings and filter.

  • Page 41: Default Values And Program Settings

    2-port (2-port) 3-port (VALVE) Control action Direct (dIRCT) (dIRCT) (CTRLA) Reverse (REV) Deadband 0.5%. 1.5%, 0.5% (dBAND) 3.0%, 5.0% (range 4-20 mA) Split range (range 4-13 mA) (SPLIT) HIGH (range 11-20 mA) SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...

  • Page 42: Glossary Of Display Data

    12. Glossary of display data 12.1 Main menu display functions Display Description SET UP Indicates that the SP400 positioner fitted to the valve has not been programmed or commissioned. Indicates that you have now entered the SP400 main menu. Provides access to: •...

  • Page 43: Sub-Menu Display Functions

    12.2 Sub-menu display functions Display Description VER x.xx Indicates the version of software embedded within the SP400 positioner. PSWRD Permits the upgrade from SP400 to SP500. RETRN Enables previously stored function values to be recalled. RTAIN Enables temporary changes made to function values to be retained.
  • Page 44 SP400 Electropneumatic Smart Positioner IM-P343-37 CTLS Issue 4...
