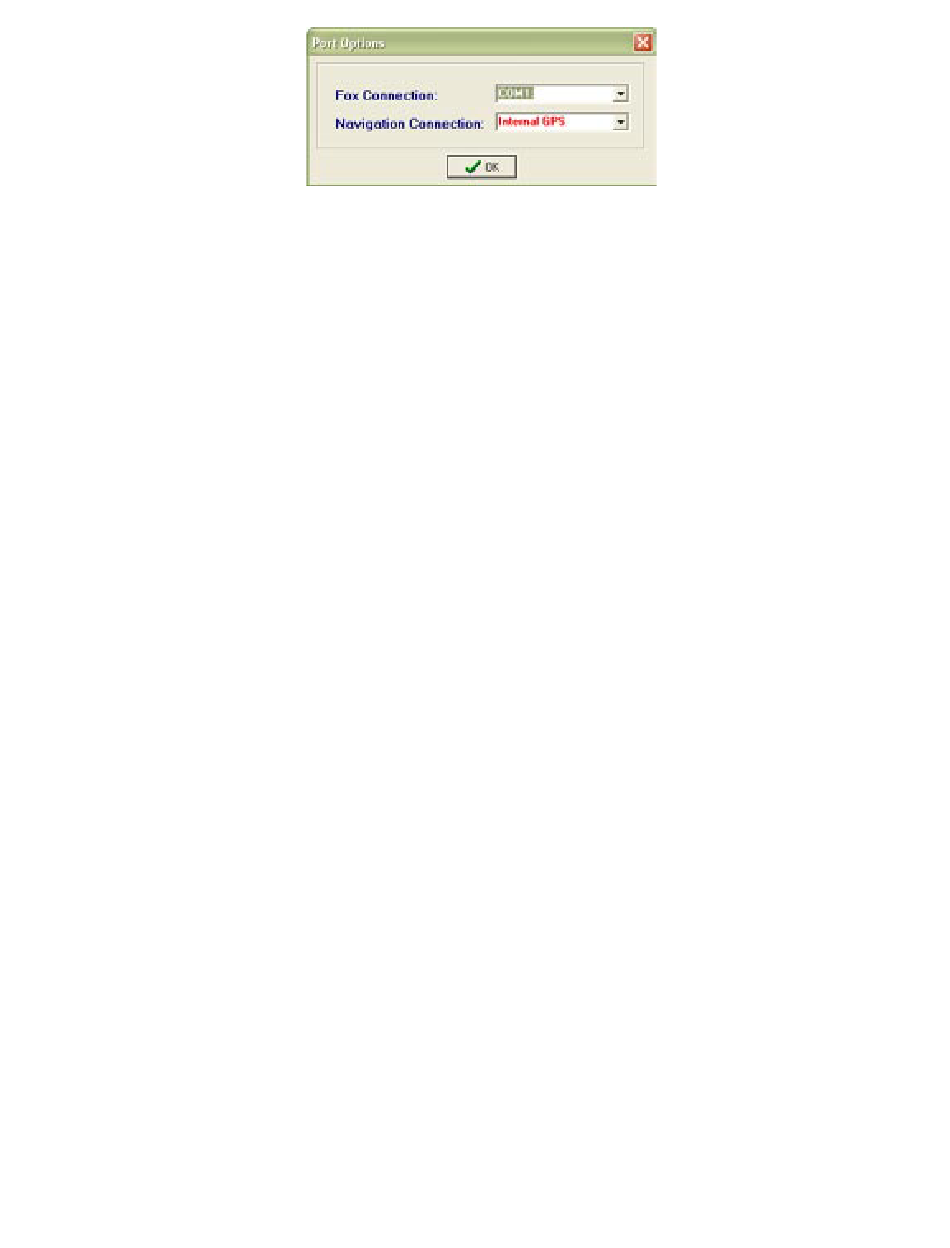

FIGURE 2 – Choosing ports
After the ports have been selected, a message will show up in the Fox information status bar
stating that a connection has been made. The DL will switch to a display representing the current
data type coming through the serial port.

Main Screen

The main screen contains the main menu, toolbar, real-time viewing area, GPS information bar,
and the Fox information bar. The real-time viewing area will display the appropriate information
based on the data coming through the serial port from the Fox.
For instance, if the Fox is in C/I ratio mode, the same screen will be displayed in the DL. The
real-time viewing area can be toggled with the GPS satellite screen by pressing the button locat-
ed in the toolbar.

Toolbar

The toolbar is located directly underneath the main menu.
The first button has a globe icon. This is a button that allows toggling to the GPS satellite screen.
To toggle back to the main viewing screen, choose the next button.
The next button has an R on it and this resets the watermarks on certain measurement screens.
Next is the log filename and whether or not logging is enabled. If the enabled button is pressed,
any real-time data will be logged to the corresponding filename. To browse for a file, choose the
browse button.
The size of the log file will increment next to the browse button when logging is enabled.
Next to that are 'C' and 'F' buttons. Choosing the 'C' button forces all of the screens to display
channels. The 'F' forces all of the screens to display frequencies.
Finally, the rightmost buttons activate editors for channel or CAPCODE tables. See the individual
sections later in this manual to explain the use of these editors.
