Receiver Status Menu; Pcmcia Replay - Berkeley Varitronics Systems Fox Manual

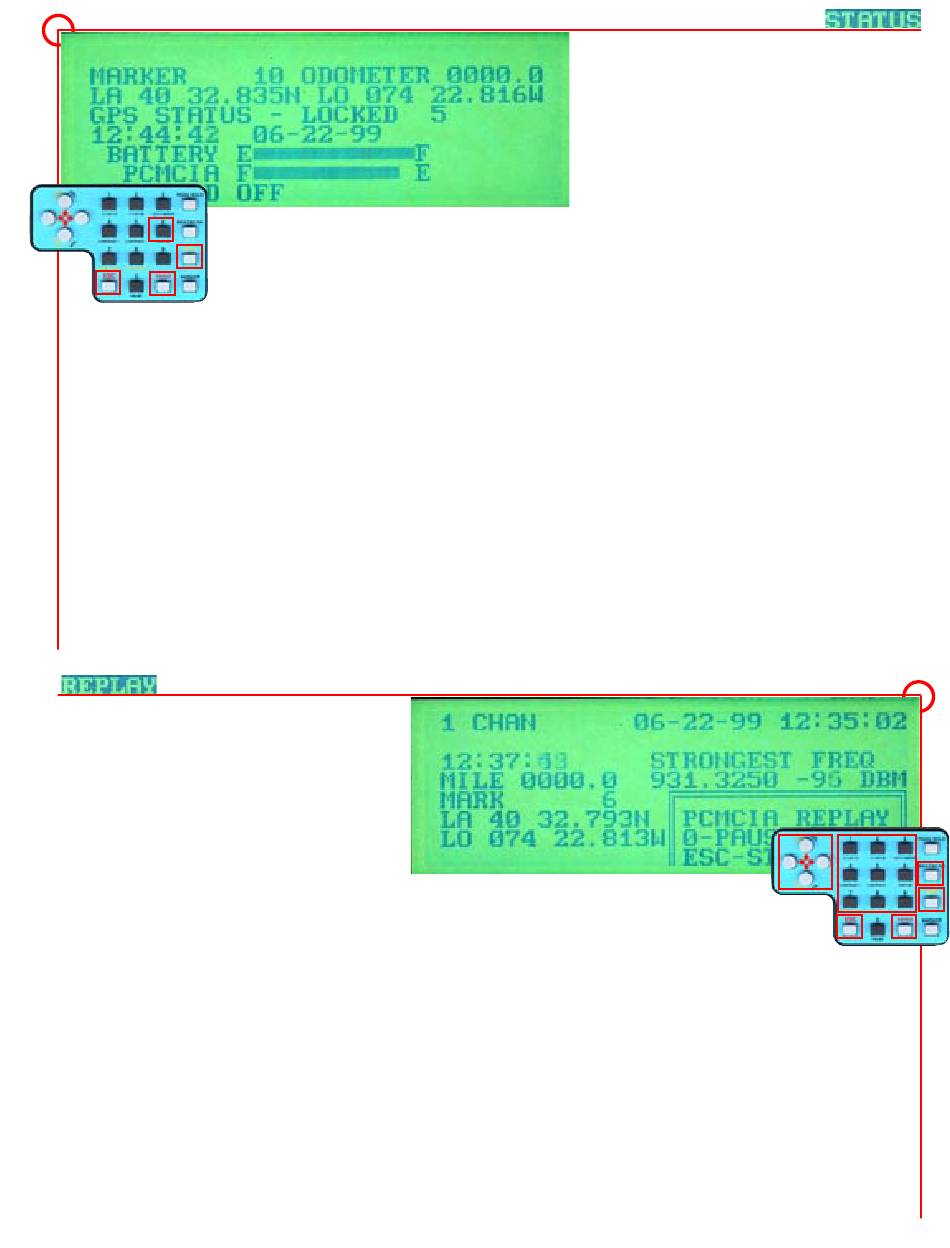

Status is also available by selecting the STATUS item in the main menu. The display shows current
marker, odometer, GPS LAT/LON and GPS status as well as the number of satellites (1-7) that are cur-
rently being tracked by the GPS receiver in the FOX. Current time, date, battery and PCMCIA state are
also displayed below.
MARKER:
ODOMETER:
LA
LO
GPS STATUS-LOCKED 5
GPS STATUS - NO LOCK GPS position is unknown
GPS STATUS - D LOCK 4 Differential Lock, GPS position is OK, 5 satellites
GPS STATUS-OFF
HH:MM:SS
MM-DD-YY
BATTERY
PCMCIA
Both gauges show state of battery or PCMCIA card from empty to full. When battery is empty, it needs to be charged. When
PCMCIA is full, there is no more room in the card to save measurements. The PCMCIA gauge is only displayed if a card is in
the socket and the PCMCIA option 'SAVE ON' is selected.
FOX
The comes standard with a 8 Megabyte SRAM
memory card. To view data collected on the
PCMCIA memory card, select the MAIN MENU
replay function. Before taking measurements,
you must install the PCMCIA SRAM memory card.
Insert the memory card with the text facing up, and
the arrow at the bottom of this side of the card fac-
ing the unit. Push the card into the slot until the
ejector button on the front pops out. After you have collected your data, you may remove the card by pressing the
same ejector button.
The REPLAY screen displays the following data saved on the PCMCIA card:
1 Measurement type, start time and date of measurement.
2 Time and strongest frequency (in dBm) found during measurement.
3 Mile marker (odometer).
4 User marker.
5 GPS LAT and LON. A "?" is displayed for LAT/LON if GPS status was UNLOCKED during measurement.
During card replay, press 0 KEY
current user marker value
if using the odometer option, shows current trip mileage.
GPS latitude (if ?, unknown)
GPS longitude (if ?, unknown)
GPS position is ok, 5 satellites
GPS power switch in OFF position
real time (hour, minute, second, 24 hour)
date (month, day, year)
empty / full gauge
empty / full gauge

PCMCIA REPLAY

FOX
to pause the display. Press the
Page 11
RECEIVER STATUS
Use this screen to monitor unit status during mea-
surement by pressing the
continues while the status is displayed (but is invis-
ible). To restore measurement display, press
again. While status is displayed during measure-
ment, all keys but
ESC key to stop the replay.
6 key. The measurement
ESC and 6 are ignored.
6 key
