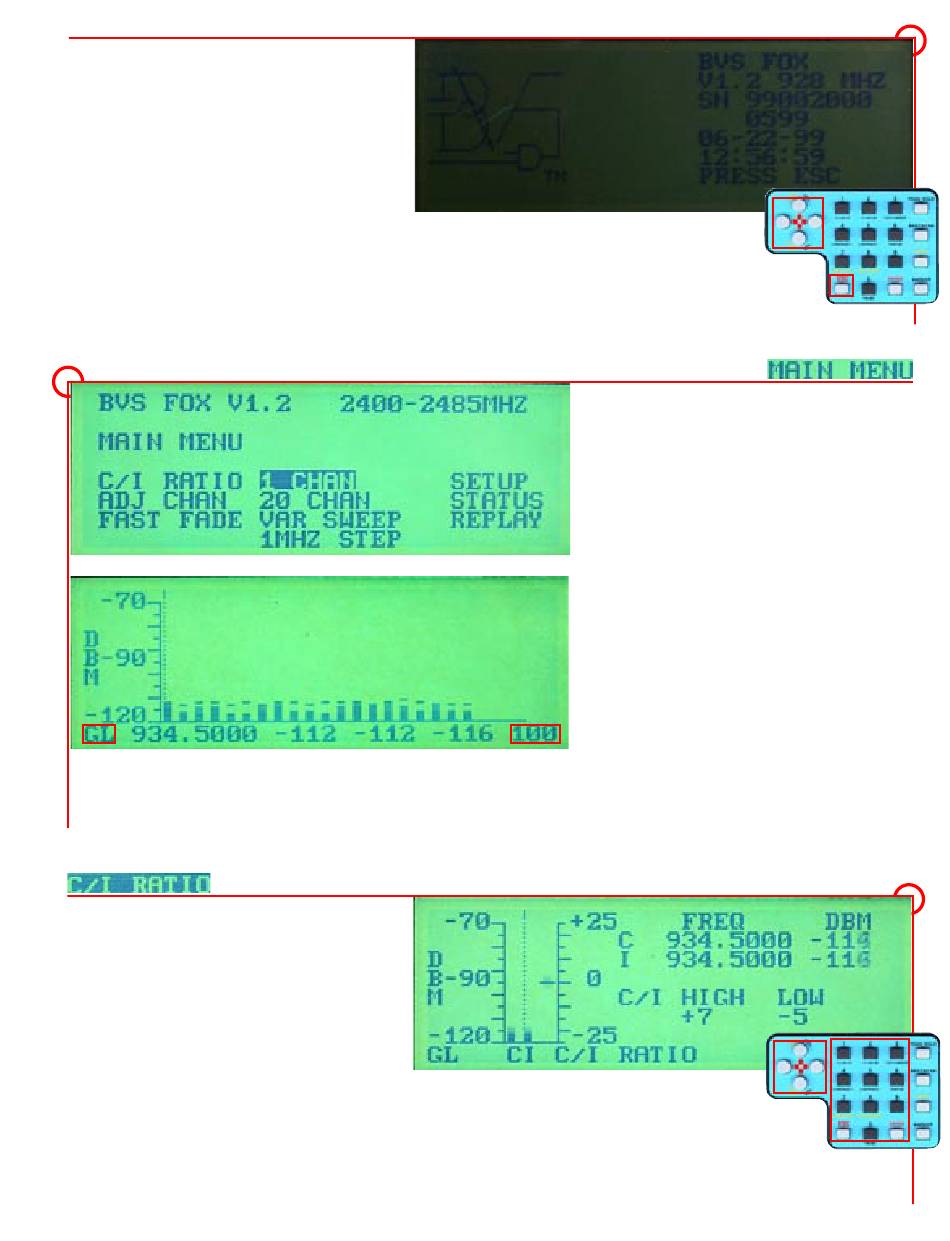

FOX POWER-UP SCREEN
After power switch is turned to the ON position, the
POWER UP screen is displayed on the LCD. There
is no backlight for this screen. The backlight will
activate as soon as any key is pressed. Use the
and DOWN ARROW keys to adjust contrast while
in this screen. If, after power on, the screen is
too dark, press the DOWN ARROW
contrast. If the screen is too light, press the
UP ARROW key to increase the contrast. Once out of the power up screen, you may adjust contrast at any
time by using the 4 / CONTRAST+
After pressing ESC from power up screen, the ONE CHAN measurement option is automatically highlighted in the
MAIN MENU.
the internal GPS receiver cannot track the required number of satellites required to provide valid LAT/LON. The percentage of
card storage remaining (0-100) is displayed as a number in far lower righthand corner.
This measurement is used to compare (Carrier /
Interferer) two frequencies against each other. To
enter the "C" frequency, use the
ARROW keys to move the dotted line cursor over
the "C" column. When the cursor is positioned,
press ENTER and enter the "C" frequency. To enter
the "I" frequency, use the
keys to move the dotted line cursor over the "I"
column. When the cursor is positioned, press
The C/I RATIO screen displays in both text and as a bar graph, the dBm level of both the "C" and "I" frequency.
The compare value in dBm of I-C is also displayed. If C > 1, this compare value (in dBm) is plus (+). If I > C, the compare
value is negative
UP
key to reduce
and 5 / CONTRAST- keys instead of the arrows. Press
C / I RATIO
RIGHT or LEFT
RIGHT or LEFT ARROW
ENTER
MAIN MENU
This screen is displayed after the power up screen
and is used to select the RF desired measurements,
setups or unit status. To select any menu item, use
the right,left,up and down arrow keys to highlight
the item. When the item required is highlighted,
press the
item. Remember that MAIN MENU screens and
their sub-menus can vary depending upon which
model of
covers all
menus may not apply to your own custom Fox.
The current GPS status is displayed in the lower
lefthand comer of the display. If
means the GPS is locked to at least 3 satellites and
LAT/LON is valid. If "DL" appears, it means the
GPS is DIFFERENTIAL locked to at least 3 satellites
and LAT/LON is valid. If "??" is displayed, it means
and enter the "I" frequency.
Page 6
ESC to enter MAIN MENU.
ENTER key to execute the highlighted
FOX you have purchased. This manual
FOX models (except for EAMPS) so some
GL appears, it
