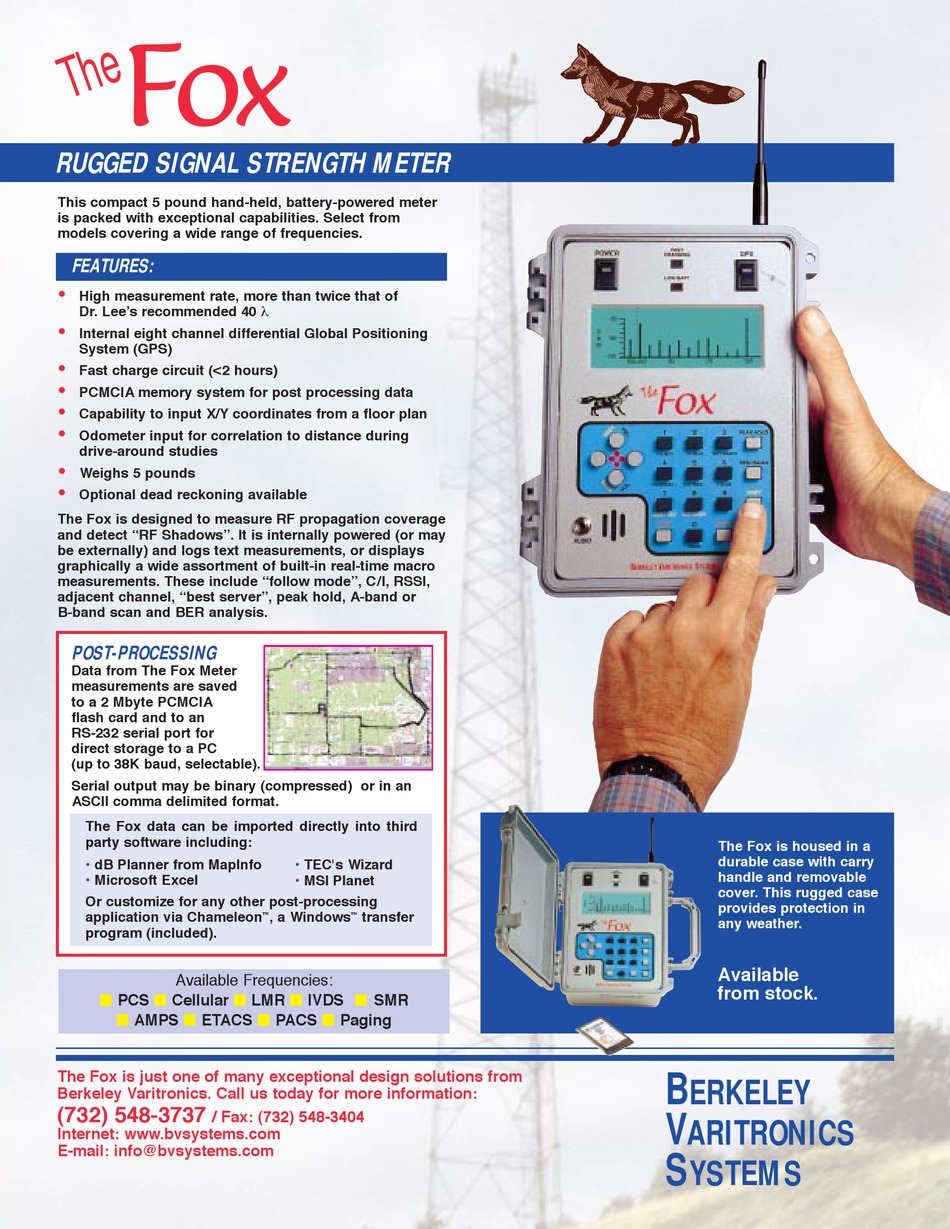

Fox
RUGGED SIGNAL STRENGTH METER
This compact 5 pound hand-held, battery-powered meter
is packed with exceptional capabilities. Select from
models covering a wide range of frequencies.
FEATURES:
¥
High measurement rate, more than twice that of
Dr. LeeÕs recommended 40 l
¥
Internal eight channel differential Global Positioning
System (GPS)
¥
Fast charge circuit (<2 hours)
¥
PCMCIA memory system for post processing data
¥
Capability to input X/Y coordinates from a floor plan
¥
Odometer input for correlation to distance during
drive-around studies
¥
Weighs 5 pounds
¥
Optional dead reckoning available
The Fox is designed to measure RF propagation coverage
and detect ÒRF ShadowsÓ. It is internally powered (or may
be externally) and logs text measurements, or displays
graphically a wide assortment of built-in real-time macro
measurements. These include Òfollow modeÓ, C/I, RSSI,
adjacent channel, Òbest serverÓ, peak hold, A-band or
B-band scan and BER analysis.
POST-PROCESSING
Data from The Fox Meter
measurements are saved
to a 2 Mbyte PCMCIA
flash card and to an
RS-232 serial port for
direct storage to a PC
(up to 38K baud, selectable).
Serial output may be binary (compressed) or in an
ASCII comma delimited format.
The Fox data can be imported directly into third
party software including:
¥ dB Planner from MapInfo
¥ Microsoft Excel
Or customize for any other post-processing
application via Chameleon
program (included).
Available Frequencies:
PCS Cellular
AMPS ETACS
The Fox is just one of many exceptional design solutions from
Berkeley Varitronics. Call us today for more information:
(732) 548-3737
/ Fax: (732) 548-3404
Internet: www.bvsystems.com
E-mail: info@bvsystems.com
¥ TEC's Wizard
¥ MSI Planet
ª , a Windows ª transfer
LMR IVDS SMR
PACS Paging
The Fox is housed in a
durable case with carry
handle and removable
cover. This rugged case
provides protection in
any weather.
Available
from stock.
