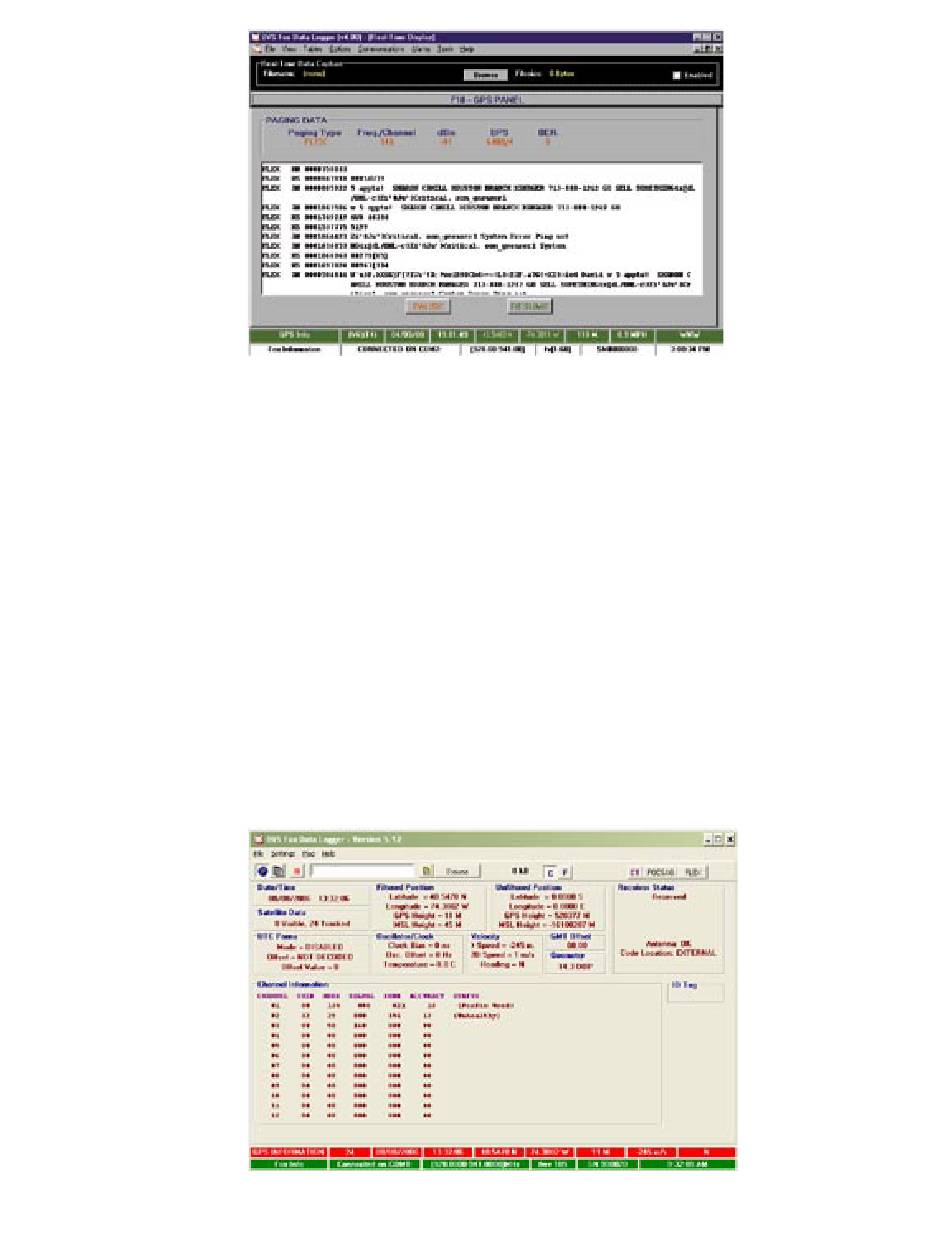

FIGURE 3 – Paging Screen

GPS Information Status Bar

The top status bar on the main screen is the GPS Information status bar. This will contain valid
information when the GPS receiver is locked. When the GPS receiver is locked, the background
color of the data capture bar and the GPS Information status bar will be green. If the receiver is
not locked, the color will be red.
The information from left to right is: Satellites (V=visible, T=tracked), Date, GPS Time, Latitude,
Longitude, Altitude (meters from sea level), Velocity (MPH), and Heading (degrees from North).

GPS Satellite Screen

The GPS satellite screen contains information from the GPS receiver concerning certain flags
and status of the satellites. The receiver can track up to 12 satellites at any one given time.
Information such as satellite ID and status flags are shown on this screen. The receiver generally
needs 3 to 4 satellites tracked in order to achieve a lock condition.
FIGURE 4 – GPS satellite screen
Page 18
