Set Pp Mile (Odometer Setting); Date/Time Setting; Backlight Control - Berkeley Varitronics Systems Fox Manual

Odometer reading can be reset to 0000.0 during measurements using
Pulses Per Mile (PPM) Settings
Note: Fox setup parameter, Pulses Per Mile (PPM), must be set to a minimum value of 10.
Tested:
Signal source: pulse generator (0-12v) pulses.
PPM Rate
(set on Fox) (Generator)
100 1 Hz
100 1 Hz
100 2 Hz
10 100 MHz
10 100 MHz

DATE/TIME SETTING

To enter the date and time, select DATE/TIME in
the setup menu, and press ENTER. Enter current
date and time and press enter. The
using the new date and time the instant
is pressed. Make sure date and time are entered
before making measurements since all data is
tagged with date and time. Date and time can be
verified using the STATUS menu item.
Duty Cycle
(Generator)
80%
20%
80%
80%
20%
FOX begins
ENTER key
5 MIN TIMER Backlight stays on for 5 minutes after the last key press.
ALWAYS ON Backlight stays on till unit shut off.
OFF Backlight stays off till turned on.
Page 15

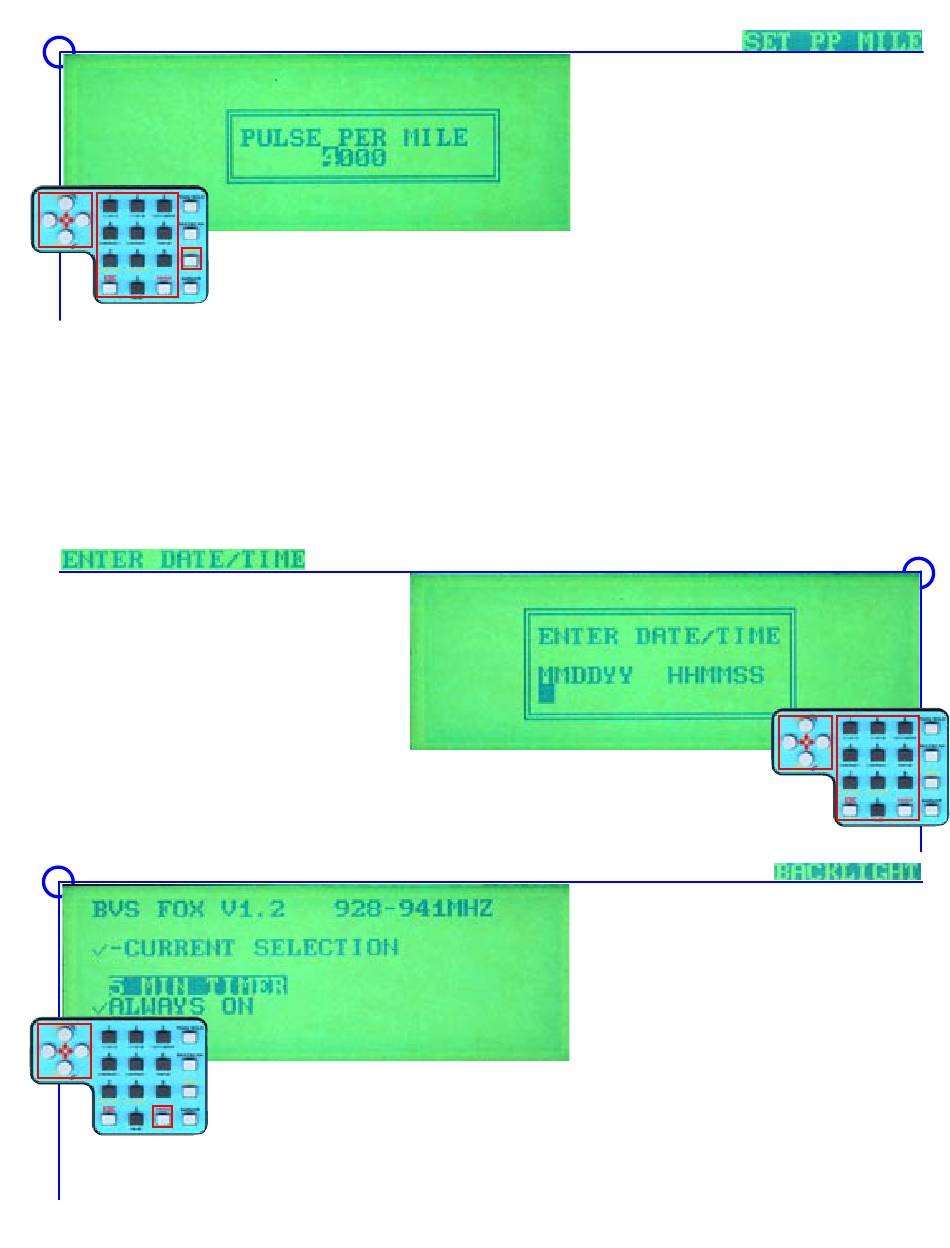

PP MILE ODOMETER SETTING
When using the odometer option, the number of
12-volt pulses per mile traveled is entered using
this setup menu item. Select PP MILE SETUP MENU
item and press ENTER. Enter the number of 12-
volt pulses per mile (this will vary from vehicle to
vehicle) and press ENTER. The current odometer
reading can be viewed using the main menu STATUS
item or by pressing the 9 key during measurement.
SHIFT+7 sequence.
Time per 1 mile
(Measured)
100 sec
100 sec
50 sec
100 sec
100 sec

BACKLIGHT CONTROL

To control the LCD Backlight, select BACKLIGHT in
the setup menu and press ENTER. Use the
keys to place the check mark next to the desired
option and press ENTER. The backlight is required
when using Fox in a dim or dark environment. The
backlight requires a significant amount of battery
power, so using the backlight will reduce battery
run time.
ARROW
