Fox Information Status Bar

The second status bar on the main window contains general information on the Fox. Any status
messages will appear here. The PC system time is also displayed. The serial number, frequency
range of the receiver, and the firmware version number are also displayed.

Thresholds

When the bars on displays are at a certain level, they will turn green. This is due to the user
selectable threshold value. Any bar below this value will appear red. To change this value, look
for "Threshold" in the Settings menu.

20 Channel Table

The user may configure a channel table for upload to the Fox. To choose, select the 'CT' toolbar
button. A dialog box appears which allows the user to select up to 20 frequencies to scan. If the
channel is left as –1, the Fox will not scan I this position of the table.
Choosing a channel will adjust the frequency column. Choosing a frequency will adjust the
channel in the channel column. These tables may be stored as a disk file by choosing the save
option. They may be restored using the open option. Press the upload button to send the table to
the Fox.
Be sure not to be in 20-channel mode on the Fox. In this situation, the table will not be overwrit-
ten.

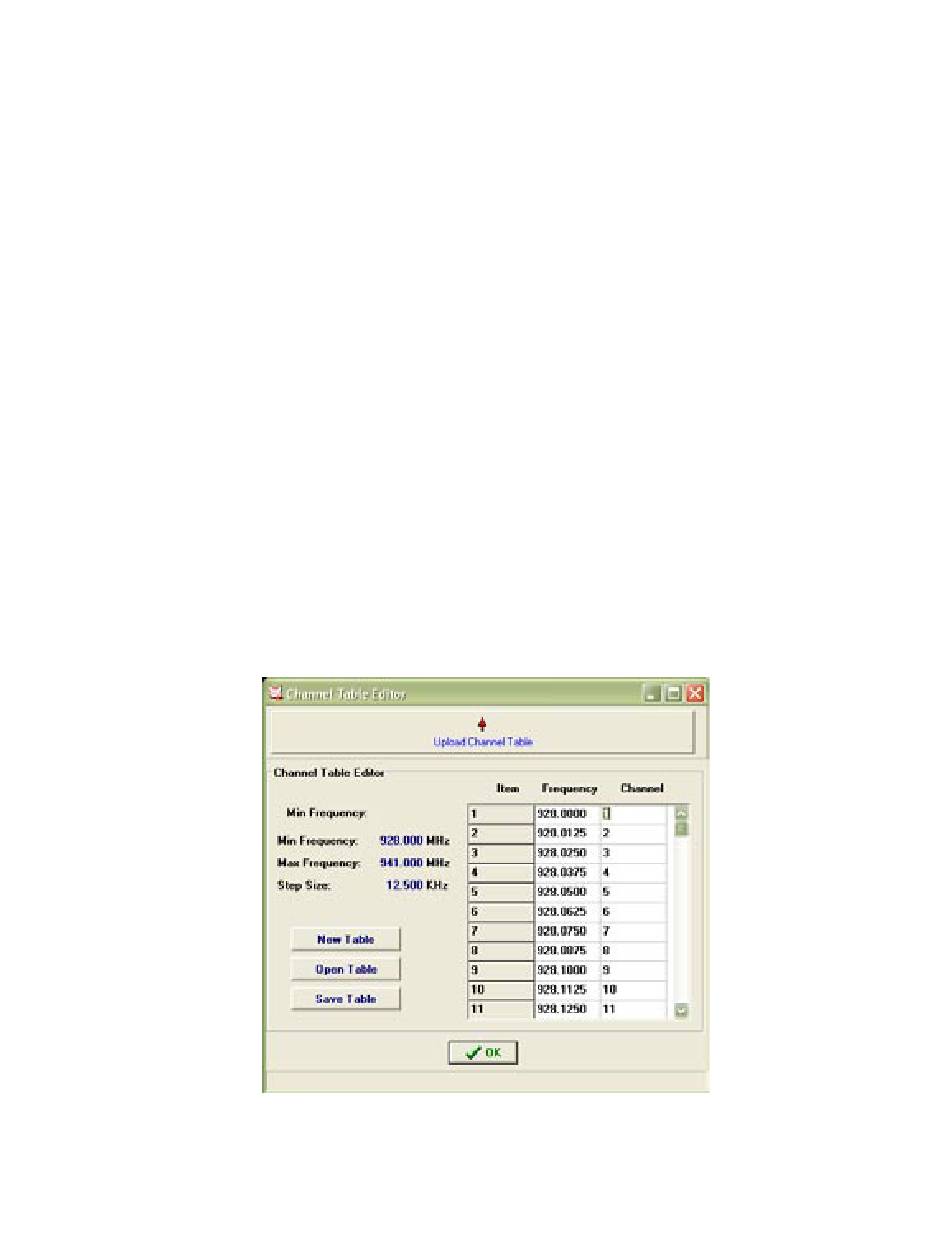

FIGURE 5 – Channel Table Screen
Paging CAPCODE Table
The user of the Fox DL application may upload or download tables of CAPCODES used for
