- Page 1 PRO SERIES OSCILLATING EDGE SANDER MANUAL LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Ph: 800.234.1976 www.lagunatools.com © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
-
Page 3: Table Of Contents
Page number Safety Rules Warranty Noise emission Specification sheet Receiving your oscillating edge sander Introduction to your oscillating edge sander Parts of the oscillating edge sander What you will receive with the oscillating edge sander Where to locate your oscillating edge sander Tools that you will need to assemble the sander... -
Page 4: Safety Rules
Safety Rules As with all machinery there are certain hazards involved with the operation and use of your new machine. Using it with caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. -
Page 5: Warranty
Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machines and accessories sold to be free of manufacturers’... -
Page 6: Noise Emission
All damage must be noted on the delivery documents and signed by you and the delivery driver. You must then contact the seller [Laguna Tools, Inc.] as soon as is practical. If damage is found after delivery, contact the seller as soon as is practical. -
Page 7: Introduction To Your Oscillating Edge Sander

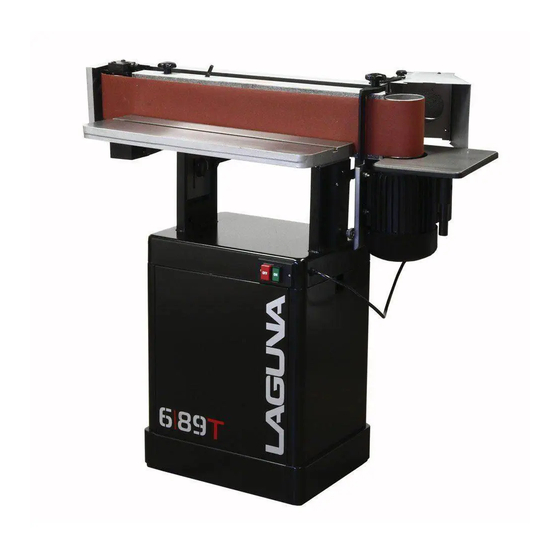

Laguna Tools endeavors to test machines prior to shipping to customers as movement can take place during transportation. It must be noted that additional machine movement can take place between Laguna Tools and delivery to the end user and some adjustments may have to be undertaken by the customer. - Page 8 Miter gauge Fence Belt release handle Sanding belt Dust chute Motor Angle clamp handle Vertical adjustment handle Base / cabinet On / off switch End table Power cable Note: The base of the machine can be assembled with the doors either at the back or front of the machine, to suit your installation.
- Page 9 Dust chute The dust chute takes a 4 inch dust hose. Sanding belt 89 in X 6 in [2260mm X 152mm] The sanding belt is Fence The fence is secured to the main table with two T bolts. The fence has two slots that allow it to be adjusted to suit the width of the job.
-
Page 10: What You Will Receive With The Oscillating Edge Sander
What you will receive with the oscillating edge sander Cabinet box Sander box Belt release handle Tracking adjuster Vertical adjuster handle Cabinet feet... - Page 11 Knobs and screws Stop Miter gauge End table support rod Dust chute panel End table End table support Cabinet front Cabinet base Cabinet side Cabinet back...
-
Page 12: Where To Locate Your Oscillating Edge Sander
Cabinet side Door with fixings and handle Fence Sanding belt Where to locate your oscillating edge sander Before you remove your machine from the packaging, select the area where you will use your machine. There are no hard and fast rules for its location, but below are a few guidelines: 1. -
Page 13: Tools That You Will Need To Assemble The Sander
Tools that you will need to assemble the sander Wrench 12 mm Allen wrench supplied with sander Unpacking your oscillating edge sander Cabinet box Sander box... -
Page 14: Assembly And Setup
Sanding head Cabinet sides To unpack your oscillating edge sander, you will need a knife and tin snips. 1. Using the tin snips, cut the banding that is securing the packing box to the pallet [if fitted]. WARNING: EXTREME CAUTION MUST BE USED, AS THE BANDING WILL SPRING AND COULD CAUSE INJURY. - Page 15 1. Place the sanding head upside down with the table resting on 2”x4” timber ensuring that no stress is placed on the belt tensioning handle. 2. Fit the rubber feet to both cabinet sides. 3. Fit the cabinet sides. Do not fully tighten the bolts. Cabinet side with feet fitted Cabinet side fitted to sanding head...
- Page 16 Cabinet front with door fitted 7. Align all the cabinet panels so that they are level with the sides of the sanding head and fully tighten all the fixing bolts and screws. Door handle Sander sitting on the cabinet 8. Move the sander so that it is standing on the cabinet. 9.
- Page 17 Move the sanding head to 90 degrees Release the clamp handle and lift the sanding head to the vertical [90 degree] position. Re- clamp. Note: The sanding head is heavy. Take care when releasing the clamp handle. Note: The fence is packed behind the back cover and will have to be removed.
- Page 18 Fitting the sanding belt 1. Fit the handle to the belt tensioning lever. The handle is a push fit. 2. Move the belt tension lever from tight to loose. 3. Slide the sanding belt over the two rollers. 4. Release the belt tension lever to the tight position.
- Page 19 Vertical adjusting handle Vertical adjusting shaft Fitting the side table 1. Assemble the end table support to the motor. 2. Fit the end table support shaft ensuring that the flat on the shaft is lined up with the clamp knob. If the shaft is not clamped on the flat it will damage the shaft and it will not slide vertically.
- Page 20 Clamp knobs T nuts Fence slots Fitting the miter gauge The miter gauge has a T nut that fits into the table T slot. The handle clamps the miter gauge at the angle that is selected. The miter gauge has a stop that when flipped into the up position lines up with three adjustable stops.
- Page 21 Flip stop Adjustable stop Tracking adjustment All sanding belts will need to be tracked. This is achieved by switching on the sander momentarily. If the sanding belt is running either too high or too low the belt is adjusted as follows: Loosen the clamping knob and adjust the tracking adjustment handle either up or down depending on the direction that the belt needs to be adjusted.
- Page 22 Connecting the dust extraction The dust collection port is located at the end of the sander. It is not possible to be exact when recommending the size of the dust collector to be connected to the sander, as this will depend on the type of work that you will be using the sander for.
-
Page 23: Using The Machine
Using the machine Table height adjustment The table height can be adjusted vertically by turning the height adjusting handle. Note. The machine must not be running while adjusting the machine. Sanding head angle adjustment The sanding head angle can be adjusted. To adjust the sanding head angle, loosen the clamp handle then move the sanding head to the required angle and re-clamp. - Page 24 All bearings are sealed for life and do not require any maintenance. If a bearing becomes faulty, replace it. Rust The oscillating edge sander is made from steel and cast iron. All non painted surfaces will rust if not protected. It is recommended that they are protected by applying wax or a Teflon based lubricant Sanding head oscillation syste.
- Page 25 Sanding belt slows down during a cut 1. Dull sanding belt. Replace the sanding belt. 2. Feeding the wood too fast. Slow down the feed rate. 3. Low voltage. Check the incoming voltage to the machine. 4. Motor run capacitor faulty. Replace the run capacitor. Machine vibrates 1.
- Page 31 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
