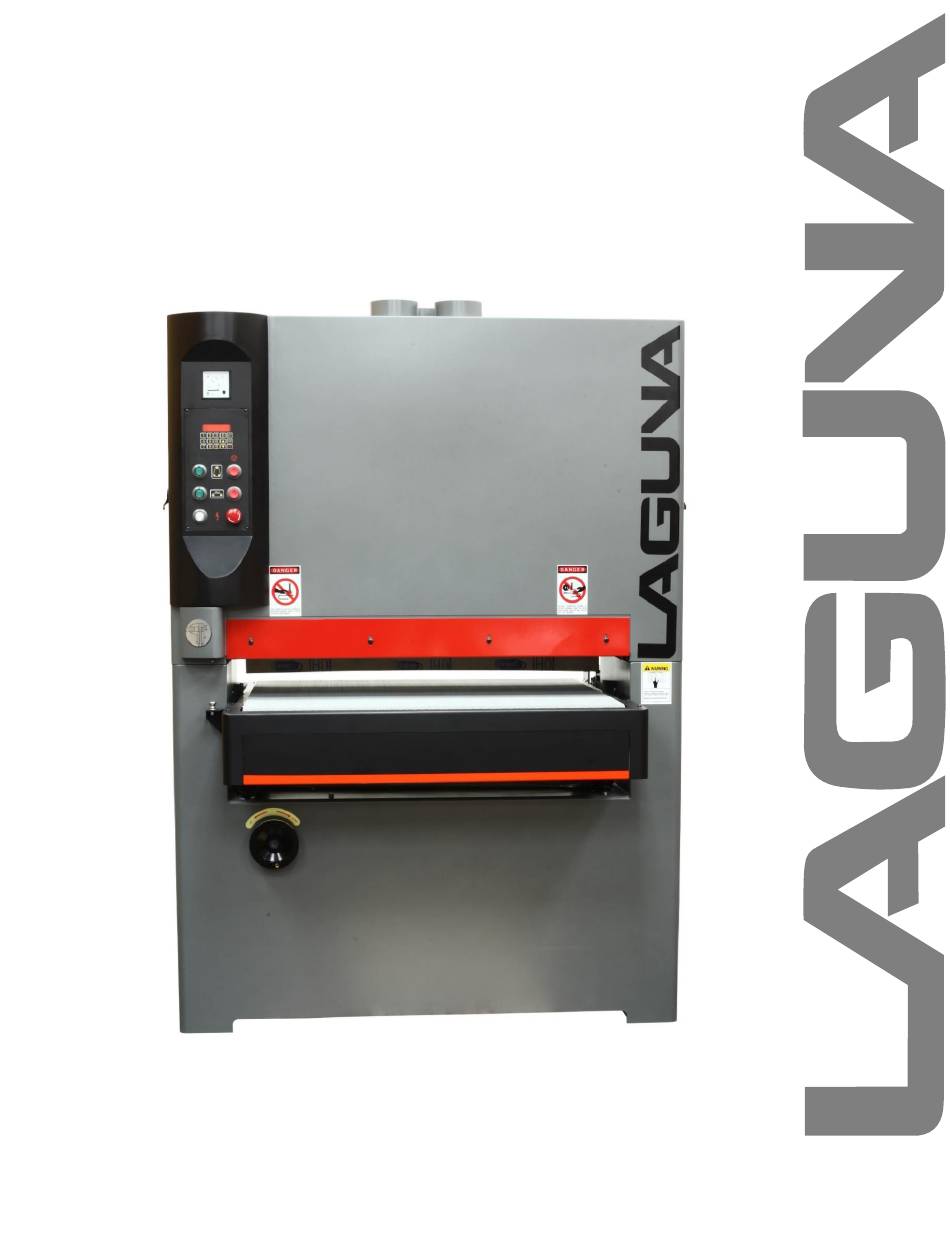

WIDE BELT SANDER
METAL PRO SERIES 37"
MANUAL
Model # MSANWB37X75-1K-20-0197-1
LAGUNATOOLS.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METAL PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools METAL PRO Series

Summary of Contents for Laguna Tools METAL PRO Series

  • Page 1 WIDE BELT SANDER METAL PRO SERIES 37" MANUAL Model # MSANWB37X75-1K-20-0197-1 LAGUNATOOLS.COM...
  • Page 2 LAGUNA TOOLS 744 Refuge Way Suite 200 Grand Prairie TX Ph: 800.234.1976 www.lagunatools.com © 2023, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page number Safety Rules Warranty Specifications Receiving your wide belt sander Introduction to your wide belt sander Components Control Panel Inventory Unpacking Assembly and setup Electrical Supply Air Supply Installing/Changing Abrasive Belt Adjusting Operating/Sanding Maintenance and Troubleshooting Electrical drawing Exploded view drawings &...

  • Page 4: Safety Rules

    SAFETY RULES: KEEP GUARDS IN PLACE and in working order. SECURE WORK. Use clamps or a vise to hold work when practical. It's safer than using your REMOVE ADJUSTING KEYS AND WRENCHES. hand and it frees both hands to operate tool. Form habit of checking to see that keys and ad- justing wrenches are removed from tool before DON'T OVERREACH.
  • Page 5 SAFETY RULES As with all machinery, there are certain hazards involved with the operation and use. Using it with caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. If you have any questions relative to the installation and operation, do not use the equipment until you have contacted your supplying distributor.

  • Page 7: Specifications

    SPECIFICATIONS 37” metal wide belt sander. SPECIFICATIONS Model # MSANWB37X75-1K-20-0197-1 Main motor 20 HP Conveyor motor, variable feed speed 1 HP Table lifting motor 0.25 HP Voltage 220V / three phase / 60 HZ Max sanding height/thickness 5" (127 mm) *Min sanding height/thickness *1/32"...

  • Page 8: Receiving Your Wide Belt Sander

    All damage must be noted on the delivery documents and signed by you and the delivery driver. You must then contact the seller (Laguna Tools) as soon as practical. If damage is found after delivery, contact the seller as soon as is practical.

  • Page 9: Introduction To Your Wide Belt Sander

    INTRODUCTION This machine is designed to give you years of safe service. Read this owner’s manual in its entirety before assembly or use. Parts of the wide belt sander. The wide belt sander consists of several major parts, which are discussed in this manual.
  • Page 10 1. Control panel. The control panel controls all the electrical functions of the machine. This includes the speed of the drive belt, vertical adjustment of the bed and on/off functions. 2. Bed, vertical setting device. This device is used to set the height of the bed in relation to the sanding rollers.
  • Page 11 11. Main Motor/Sanding 13. Sanding Belt Limiter 12. Conveyor Lift Motor 14. Sanding Belt Sensor 15. Sanding Belt Controls 11. Sanding drum motor. 12. Conveyor bed vertical adjusting motor. The conveyor bed vertical adjusting motor moves a chain that rotates four cogs.
  • Page 12 16. Spacer 19. Sanding Belt Adjuster 17. Clamp 20. Sanding Belt Oscillation Piston 18. Sanding Belt Tension Knob 21. Sanding Belt Tension Piston 16. Spacer. The spacer is used to support the sanding head to the body of the machine. The spacer is removed when changing sanding belts. 17.

  • Page 13: Control Panel

    Control Panel Functions & Features Amp Meter DRO/Thickness display Thickness Control operation pad Sanding Belt ON (green) & OFF (red) Conveyor Belt ON (green) & OFF (red) Power indicator light Emergency STOP Automatic Thickness sensor...

  • Page 14: Inventory

    INVENTORY What you will receive with the wide belt sander. Screwdrivers Door Keys Wrenches Ceramic Belt Limiters and hardware Abrasive Belt Flexible extension, (greasing) Abrasive Belt Hex wrenches (not shown) Toolbox (not shown) Locating the wide belt sander. Before removing your machine from the packaging, select the area where to use the machine.

  • Page 15: Unpacking

    UNPACKING To unpack the sander, you will need tin snips, knife, screwdriver, hammer, and a wrench. 1. Using the tin snips, cut the banding that is securing the packing box (if fitted). WARNING: EXTREME CAUTION MUST BE USED BECAUSE THE BANDING WILL SPRING AND COULD CAUSE INJURY.

  • Page 16: Electrical Supply

    COMPONENTS, electrical box Sanding motor Conveyor 4-amp Control contactor fuses motor system contactor transformer Amp meter current sensor Sanding motor overload relay Input power junction block Conveyor motor Input overload relay cable strain relief ELECTRICAL SUPPLY CONNECTIONS Note. A qualified electrician must carry out the electrical installation. Confirm the main power supply corresponds with that of the machine motor plate and wiring, (typically three-phase, 208-240 V, 60 HZ).

  • Page 17: Air Supply

    Connecting air supply. Air line connection Label Air pressure regulator The input air regulator regulates the air pressure that is supplied to the machine. The machine is supplied with an air connector, to connect the air supply. An air supply that can deliver a constant minimum pressure of 6 bar (87 psi.) is required.

  • Page 18: Installing/Changing Abrasive Belt

    INSTALLING ABRASIVE BELT Note. Disconnect the sander from the electrical supply. Clamp & Spacer Abrasive Belt tension switch Abrasive sanding belt installation 1. Disconnect power to machine. Rotate the roller tension switch counterclockwise to lower the tension roller. 2 Rotate the clamp counterclockwise and lift it out. Note.
  • Page 19 Clamp and spacer assembled Belt sensor Abrasive sanding belt installed Note. Never run the sander without the spacer and clamp assembled, this will damage the machine. Note. The machine is supplied with a sanding belt and may not be the correct one for your work/application.

  • Page 20: Adjusting

    Choosing abrasive belts. Grit Type The grit type (backing and material) that you 24-60 Coarse choose will depend on the type of work and the 80 to 100 Medium finish that the job dictates. It usually saves time 120 to 220 Fine and results in a better finish if you start a job with a coarse grit and then complete the finishing cuts...
  • Page 21 Manual vertical bed adjustment. Thickness adjusting handwheel The manual handwheel is located on the front of the machine under the bed. It is not recommended that the wheel is used for everyday operations and is only used for fine tuning and setting, emergency operations, or when the bed must be moved while no power is connected to the machine.
  • Page 22 Electronic vertical bed adjustment/Control Panel. Control panel The control panel is set on the front of the machine. It has a control pad and several buttons. The numeric pad controls the vertical movement of the bed. 1. Numeric pad for inputting dimensions into the computer. 2.
  • Page 23 Calibrating the control panel. Sand a piece of wood and measure the thickness. The sander must have been adjusted prior to sanding the wood. See sanding belt adjustment. Using the numeric pad, input the thickness of the wood. Press the set button and hold for 2.5 seconds. The computer is now calibrated.
  • Page 24 Setting the depth of cut (sanding depth). • Press any button, and the display will read 000.0". • Input the depth of cut using the numeric keypad (0,005"). • Press the set button and hold for 2.5 seconds. The display will begin to flash; when it stops, the depth of cut is set. •...
  • Page 25 HINT, Setting Depth of Cut. If you are not certain setting the depth of cut; Measure the thickness of the stock. Place the stock on the conveyor under the sanding head (with abrasives installed). Raise the conveyor bed by hand using the handwheel until the stock is touching the abrasive belt and the belt can be rotated using hand pressure.
  • Page 26 The speed of the belt can be adjusted to between 6 and 30 feet per minute. CONVEYOR BELT SPEED The speed is infinitely variable to suit the various applications to be sanded. It is a matter of experience when selecting the correct speed. Change the speed by rotating the belt speed adjuster while the motor is running.
  • Page 27 SANDING BELT ADJUSTMENTS General description of sanding controls and actions. The sanding belt is tensioned by the central belt tension piston. The piston is activated by the sanding belt tension switch. This switch must be activated prior to starting the sander. The sanding belt oscillates along the top and bottom rollers.
  • Page 28 is excessive or the sanding belt runs off center, the sanding belt will hit one of the two ceramic rollers (2). The rollers are attached to micro switches that stop the machine. The sensitivity of the non-contact air sensor can be adjusted by rotating the control knob (5]) This has been factory set and should not need adjustment.
  • Page 29 Sanding belt oscillation adjustment. 1. With no sanding belt fitted, restrict the airflow across the sensor (U) with a piece of wood or something similar. 2. The top roller should pivot, and when the obstruction is removed, the top roller should pivot back to the original position.
  • Page 30 Testing the machine. Note. Remove all tools and other materials from the machine prior to testing it. 1. Connect the electrical supply. 2. Switch “ON” the sanding machine momentarily. Check that the sanding belt is running true and balanced on the rollers. 3.

  • Page 31: Operating/Sanding

    Check that all the safety switches are functioning. Bed upper limit Bed lower limit switch Bed safety switch (Emergency STOP) switch 1. Lower the bed until it hits the lower limit switch. The bed travel must stop once the switch is activated. 2.

  • Page 32: Maintenance And Troubleshooting

    Maintenance and troubleshooting. Note. When conducting maintenance, disconnect the machine from the electricity and the air supply. General. Keep your machine clean. At the end of each day, clean the machine. If dust is not removed, it will cause rust. In general, we recommend that you only use a Teflon-based lubricant.
  • Page 33 Bearing lubrication. The bearings need to be greased. There are several grease points, as shown in the photographs below. It is recommended that the machine be greased after every 40 hours of operation. Greasing the bearings will flush out dust from the seals. After greasing, wipe off any excess. A grease gun extender is supplied to ease access to the bearings.
  • Page 34 Sanding belt non-contact air sensor. There are holes in the sensor for the air to escape through. The holes should be checked regularly, and if they block, they must be cleaned. If the holes block, the belt will not track correctly on the rollers. Ceramic rollers.
  • Page 35 Pressure roller adjustment. Pressure roller adjusting studs & nuts There are four pressure rollers: two on the infeed side and two on the outfeed side of the contact roll. The pressure rollers come factory set but may need to be adjusted during the life of the machine or certain applications.
  • Page 36 of the material and other factors. Experimentation will be required to achieve the correct setting. It is suggested that setting the pressure rollers to 0.020" to 0.030" is a good starting point. Never set the pressure rollers level or higher than the sanding roller (contact roll), as this may result in injury from stock slippage.
  • Page 37 4. If the conveyor is running to the left, turn the left-hand adjusting screw clockwise. 5. Once the conveyor is running centrally, stop the conveyor and replace the steel cover. Conveyor tensioning. To increase the tension on the conveyor belt, turn the adjusting bolts clockwise.
  • Page 38 Conveyor drive motor belt adjustment. The drive belts will need to be adjusted from time to time. To adjust, loosen the lock nut, and turn the adjusting nut (on top of bracket) until the correct tension is achieved. Do not forget to re-tighten the lock not after the adjusting has been completed.
  • Page 39 Accessing sanding head drive motor electrical termination. To access the motor electrical terminations, remove the cover plate located beside the air regulator. Note. Never access the motor with the power connected to the sander. Motor electrical terminations Cover plate (cover plate removed)
  • Page 40 Troubleshooting. Problem Possible cause Solution Display fails to come Breaker tripped. Reset breaker. Power switched off. Switch power on. Display faulty. Replace display. Display shows Incorrect figures input Input correct figures. incorrect figures. into computer. Computer corrupted. Turn power off then on. Display faulty.
  • Page 41 Sanding belt breaks. Belt assembled to Replace belt. machine with arrows in the wrong direction. Burn marks on the job. Sanding belt is too fine Replace the sanding for the job. belt with coarser grit sanding belt. Sanding belt clogged. Clean belt or replace the sanding belt.
  • Page 42 stripped enough and is not causing a bad connection. Check that all the screws are tight. Check the supply voltage is correct. Sander will not stop. This is a very rare Switch faulty. Replace occurrence, as the the switch. machine is designed to fail-safe.
  • Page 43 clogged. Over-feeding the job. Slow feed rate. Excessive ambient Cool area. temperature. Motor overloaded. Reduce load on motor [(educe depth of cut or feed speed). Squeaking noise. Check the bearings. Re-lubricate or replace bearing. Machine vibrates. Machine not level on Re-level the machine, the floor.
  • Page 44 Conveyor belt Clean conveyor belt and check dust contaminated with sawdust. extraction for blockages. Sanding belt hits Tracking out of Re-track the sanding ceramic switch. adjustment. belt. Sanding belt will not Blocked tracking Clear sensor blockage. track correctly. sensor. Oscillation control valve Adjust oscillation not adjusted correctly control valve.

  • Page 45: Electrical Drawing

    Electrical drawing...

  • Page 46: Exploded View Drawings & Parts List

    EXPLODED VIEW DRAWINGS Inventory...
  • Page 47 Inventory 0000 ITEM NO DESCRIPTION LIMIT SWITCH TUBE TOOLBOX 007-1 SANDING BELT #100 007-2 SANDING BELT #180 PHILLIP'S SCREWDRIVER FLAT SCREWDRIVER WRENCH 8 X 10 WRENCH 12 X 14 WRENCH 17 X 19 HEX WRENCH...
  • Page 48 Main Motor...
  • Page 49 1000 1000 Main Motor ITEM NO DESCRIPTION ITEM NO DESCRIPTION MACHINE FRAME LIMIT SWITCH MOTOR BASE LIMIT SWITCH PLATE MOTOR BASE HINGE SCREW 1/4" X 1/2" NUT 1/2" PLAIN WASHER 1/4" MOTOR BASE ADJUSTMENT ROD FLAT HEAD SCREW SPRING WASHER 1/2" SPRING WASHER SCREW BRAKE BRACKET...
  • Page 50 Elevation Components...
  • Page 51 2000 2000 Elevation Components ITEM NO DESCRIPTION ITEM NO DESCRIPTION ELEVATION SCREW HEADLESS SCREW 1/4" X 1/2" SCREW 5/16" X 1" HAND WHEEL PLAIN WASHER 5/16" MOTOR BASE SPRING WASHER 5/16" SCREW 1/4" X 1" SPRING WASHER 3/8" SPRING WASHER 1/4" SCREW 3/8/"...
  • Page 52 Conveyor...
  • Page 53 3000 3000 Conveyor ITEM NO DESCRIPTION ITEM NO DESCRIPTION CONVEYOR TABLE LIMIT SWITCH CONVEYOR BELT ROUND PHILLIP'S SCREW REDUCER FIX PLATE SCREW 1/2" X 3" LONG CUSHION PLAIN WASHER 3/8" INFEED ROLLER SHAFT SCREW 3/8" X 1" INFEED ROLLER OUTFEED ROLLER BEARING BEARING UCF 205 "C"...
  • Page 54 Hold-Down Components...
  • Page 55 4000 Hold-Down Components ITEM NO DESCRIPTION SPRING 3 X 15.6 X 57 HEX NUT 3/8"-18 HEX BOLT 5/16"-18 x 1-1/4" LOCK WASHER 5/16" PISTON ROLLER SHAFT PISTON ROLLER BEARING 6001 2RS SHAFT BEARING COLLAR HEADLESS SCREW 1/4"-20x3/4" HEX NUT 1/4" PISTON ROLLER ADJ.
  • Page 56 Contact Roller...
  • Page 57 5000 Contact Roller ITEM NO DESCRIPTION BEARING UCC206 LOCK WASHER 5/16" KEY 5/16"x5/16"x 30MM LOCK WASHER 1/2" CAP SCREW 1/2"-12 x 1-1/2" CAP SCREW 1/4"-20 x 1/2" FILTER GREASE FITTING 1/16 W/CAP 90 DEG PLUG 30mm PHLP HD SCR 1/4"-20 x 1/2" CAP SCREW M6-1.0 x 6 HANDLE ROLLER LOCKDOWN SHAFT...
  • Page 58 Idle Roller...
  • Page 59 6000 6000 Idle Roller ITEM NO DESCRIPTION ITEM NO DESCRIPTION SQUARE FRAME UPPER ROLLER BRACKET SQUARE FRAME SEAL (RIGHT) UPPER ROLLER SQUARE FRAME SEAL (LEFT) UPPER ROLLER BRACKET FLAT HEAD SCREW 1/4" X 1/2" BEARING UCC205 SPRING WASHER 3/8" HEADLESS SCREW M6 X 6MM SCREW 3/8"...
  • Page 60 Cabinet/Frame...
  • Page 61 7000 Cabinet/Frame ITEM NO DESCRIPTION UPPER FRAME COVER HEAD SCREW M6 LEFT DOOR, UPPER FRAME RIGHT DOOR, UPPER FRAME DOOR LOCK SCREW 5/16" PLAIN WASHER 5/16" RIGHT DOOR, LOWER FRAME 109-1 LEFT DOOR, LOWER FRAME SCREW 1/4" FRONT PROTECTION PLATE SPRING WASHER 1/4"...
  • Page 62 ELECTRICAL PARTS - 37 1K - THREE PHASE...
  • Page 63 8000 8000 Electrical ITEM NO DESCRIPTION ITEM NO DESCRIPTION ELECTRICAL CONTROL BOX 128-1 START SWITCH HINGE 128-2 START SWITCH ELECTRICAL CONTROL BOX OF DOOR 129-1 STOP SWITCH BASE PLATE 129-2 STOP SWITCH NUT 1/4" POWER INDICATION LIGHT SPRING WASHER 1/4" EMERGENCY STOP SWITCH CONTROL PANEL WIRE COLUMN...
  • Page 64 Air System...
  • Page 65 9000 9000 Air System ITEM NO DESCRIPTION ITEM NO DESCRIPTION FILTER CUP FLEXIBLE HOSE BRONZE CONNECTOR FLEXIBLE HOSE FLEXIBLE HOSE FLEXIBLE HOSE AIR SWITCH FLEXIBLE HOSE ELBOW FLEXIBLE HOSE SCREW 3/16" FLEXIBLE HOSE CONNECTOR FLEXIBLE HOSE SOLENOID VALVE FLEXIBLE HOSE T-JOINT FLEXIBLE HOSE CONNECTOR...
  • Page 66 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
