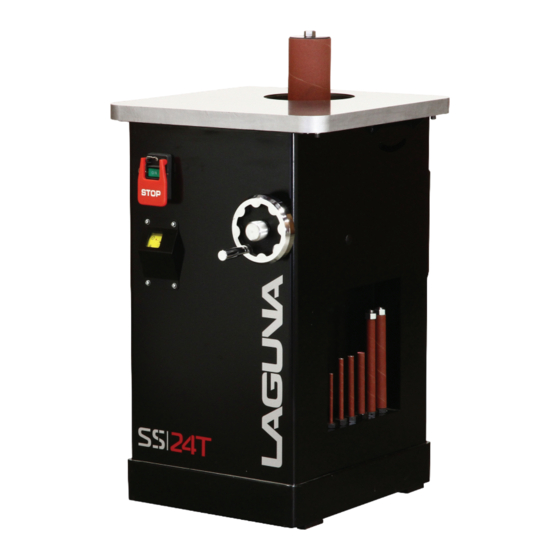

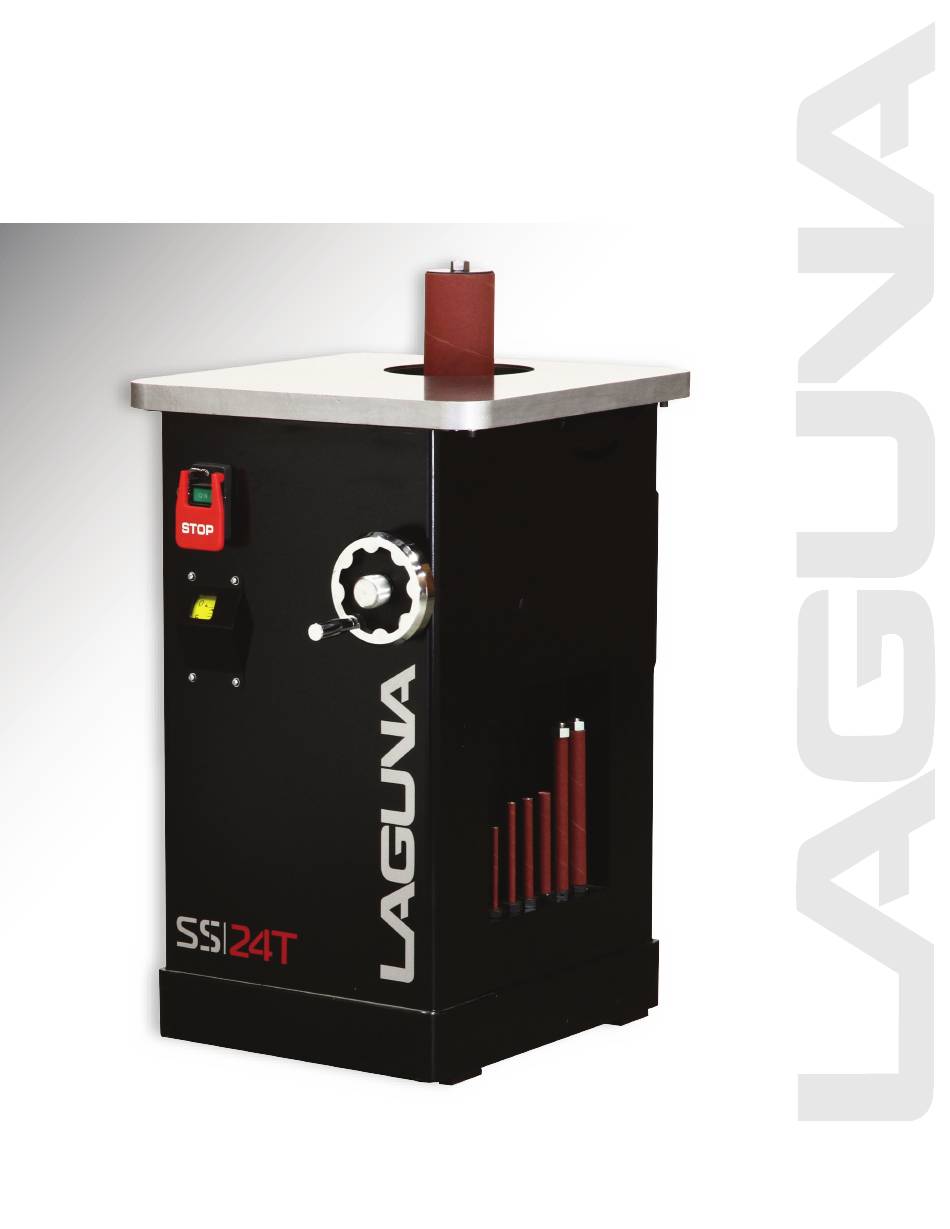

- Page 1 SS|24T Oscillation Vertical Spindle Sander Manual LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Part No. SS24T Ph: 800.234.1976 © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® www.lagunatools.com are the registered trademarks of Laguna Tools, Inc. All rights reserved.
-
Page 2: Table Of Contents
TABLE OF CONTNETS Table of contents ______________________________________________1 Safety rules ___________________________________________________2 Grounding instructions _________________________________________2 Specifications _________________________________________________5 Machine legend ________________________________________________6 Machine dimension ____________________________________________7 Safe operating position _________________________________________7 Power switch on / off ___________________________________________8 ON/OFF switch padlock _________________________________________8 Instructions for operations ______________________________________9 Tilting the spindle ______________________________________________10 Mounting spindle drum _________________________________________10 Adjust the verticality between the table and drum ___________________11 Selection guide for drum to table insert ____________________________12... -
Page 3: Safety Rules
SAFETY RULES SAFETY INSTRUCTION MANUAL REQUIREMENTS The safety instructions shall be as illustrated below or employ equivalent wording. SAFETY RULES KEEP GUARDS IN PLACE and in working order. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on. -
Page 4: Grounding Instructions
DISCONNECT TOOLS before servicing; when changing accessories, such as blades, bits, cutters, and the like. REDUCE THE RISK OF UNINTENTIONAL STATING. Make sure switch is in off position before plugging in. USE RECOMMENDED ACCESSORIES. Consult the owner's manual for recommended accessories. - Page 5 that accept the tool's plug. Repair or replace damaged or worn cord immediately. 2. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating less than 150 volts: This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Sketch A in Fig.
-
Page 6: Specifications
Table A Ampere Rating Volts Total length of cord in feet More Than Not More Than Minimum gage for cord Not Recommended SPECIFICATIONS MODEL OVS-JD Table size (L x W) 615x613mm Table tilt 0~45° Spindle speed 1725rpm Oscillations 60/min Oscillation stroke 38mm Sanding sleeve length 150~230mm... -
Page 7: Machine Legend
MACHINE LEGEND Fig. 2 Fig. 3... -
Page 8: Machine Dimension
MACHINE DIMENSION Fig. 4 SAFE OPERATING POSITION Fig. 5... -
Page 9: Power Switch On / Off
POWER SWITCH ON / OFF Sanding machine assembly - power switch which to start and stop the machine. The switch locations on the cabinet. When starts the machine the cover needs to be opened and press the button” ON “. If you want to stop the machine, please press the button” OFF”. If the machine does not work as usual and it needs to be stopped right away, press the red cover then the machine can stop working. -
Page 10: Instructions For Operations
Fig. 7 Fig. 8 INSTRUCTIONS FOR OPERATIONS Select spindle that is smaller than the curve to be sanded. Use an insert plate that comes closest to the spindle without touching it. Make sure that spindle is properly positioned in taper sleeve socket. With the wrench provided, tighten the nut. -
Page 11: Tilting The Spindle
TILTING THE SPINDLE Release handwheel lock knob. Adjust spindle to whated angle by rotate handwheel. Lock the handwheel knob when pointer was in the wanted angle. Fig. 9. MOUNTING SPINDLE DRUM Make sure that the switch is in “OFF” position and that the power cord is unplugged. Take apart the demounted plate located in the back side. -
Page 12: Adjust The Verticality Between The Table And Drum
Fig. 10 Fig. 11 Fig. 12 ADJUST THE VERTICALITY BETWEEN THE TABLE AND DRUM Install the spindle and rotate it to 0 °. Use angle measurer to make sure spindle and table are in 0° and pointer also return to zero. 2. -
Page 13: Selection Guide For Drum To Table Insert
SELECTION GUIDE FOR DRUM TO TABLE INSERT This machine is furnished with 10 drums. The range of drum diameter is from 1/4” to 4”. If the drum diameter is changed, the table insert needs to be changed to the proper size. The table below shows which table insert to use for various drum diameters. -
Page 14: Maintenance Of Spindle Sander
MAINTENANCE OF SPINDLE SANDER To keep spindle sander in perfect condition, clean machine and attachments at all times. 2. Clean tapered sleeves and tapered socket before use, this will protect spindle sleeves from nicks. 3. Bent sleeves are easily straightened by placing them in the tapered socket and slipping a small pipe over the steel shaft. -
Page 15: Troubleshooting
TROUBLESHOOTING TROUBLE CAUSES CORRECTION Motor does not run when 1. Switch is burned out. 1. Replace the switch. power switch is turned 2. Connection wire is loose 2. Tighten or replace the “ON”. or damaged. wire. Motor does not run at full 1. -
Page 16: Assembly Diagram
ASSEMBLY DIAGRAM... - Page 17 ASSEMBLY DIAGRAM...
- Page 18 ASSEMBLY DIAGRAM...
- Page 19 OVS-JD SPINDLE SANDER SEP. 5, 2011 PART NO. REFERENCE NO. DESCRIPTION Q'TY 30600002 TABLE 30101049 C1206205 BEARING 30101013b OIL TANK LID 30101035 OIL FILLER COVER 30103015 GUIDE SHAFT 30600028 BEARING METAL 30103014a SLEEVE SEAT 30600028b BUSHING 30103018 MAIN SHAFT 30103016 FIX NUT 30103017 WORM (LARGE)
- Page 20 PART NO. REFERENCE NO. DESCRIPTION Q'TY 30103022 TRANSMISSION BAR 30103020 GEAR BUSH 30105087 TRANSMISSION BAR BASE 30103019 GEAR 30103021 TRANSMISSION SHAFT S1017W-2 WIRE CLAMP 30600009 TRUNNION BRACKET 30600027 DUST CHUTE 30101050 CAP NUT S0120300 LOCKING NUT 3/8"-16UNC S0010510 CAP SCREW 5/16"-18UNCx1" S0110503 NYLON NUT 5/8"-11UNC S0400550...
- Page 21 PART NO. REFERENCE NO. DESCRIPTION Q'TY 30600025 TABLE INSERT (SMALL) 30600023 TABLE INSERT 2" 30105000A 1/4" SPINDLE ASS'Y 30105084 1/4" SANDING PAPER 30105000B 3/8" SPINDLE ASS'Y 30105082 3/8" SANDING PAPER 30105000C 1/2" SPINDLE ASS'Y 30105079 1/2" SANDING PAPER 30105000D 5/8" SPINDLE ASS'Y 30105076 5/8"...
- Page 22 PART NO. REFERENCE NO. DESCRIPTION Q'TY 30600011 MOTOR PULLEY S0010510M CAP SCREW M5xP0.8x10L S0210304 FLAT WASHER 11105080 SPRING S0021020M HEX. SCREW M10xP1.5x20L 30600013 MOTOR DUST PROOF PLATE 30600017 TRANSFER 30600014 PATCH PLATE S0010815M CAP SCREW M8xP1.25x15L 30600012 ANGLE ROD 13200040 S0310525 SPRING PIN 13200031...
- Page 23 PART NO. REFERENCE NO. DESCRIPTION Q'TY 12100039 S0210401a FLAT WASHER 1/4"x13x1T 12100040 RUBBER S0210405 FLAT WASHER 1/4"x10x1T S0120600M S0210623 FLAT WASHER 3/8"x23 S0210500a FLAT WASHER 30600004 FIXER 30600021 TABLE INSERT 4" 30600022 TABLE INSER 3" 30600026 TABLE INSERT 3/8" 12300098 SLEEVE 12300104 BOLT...
- Page 24 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
