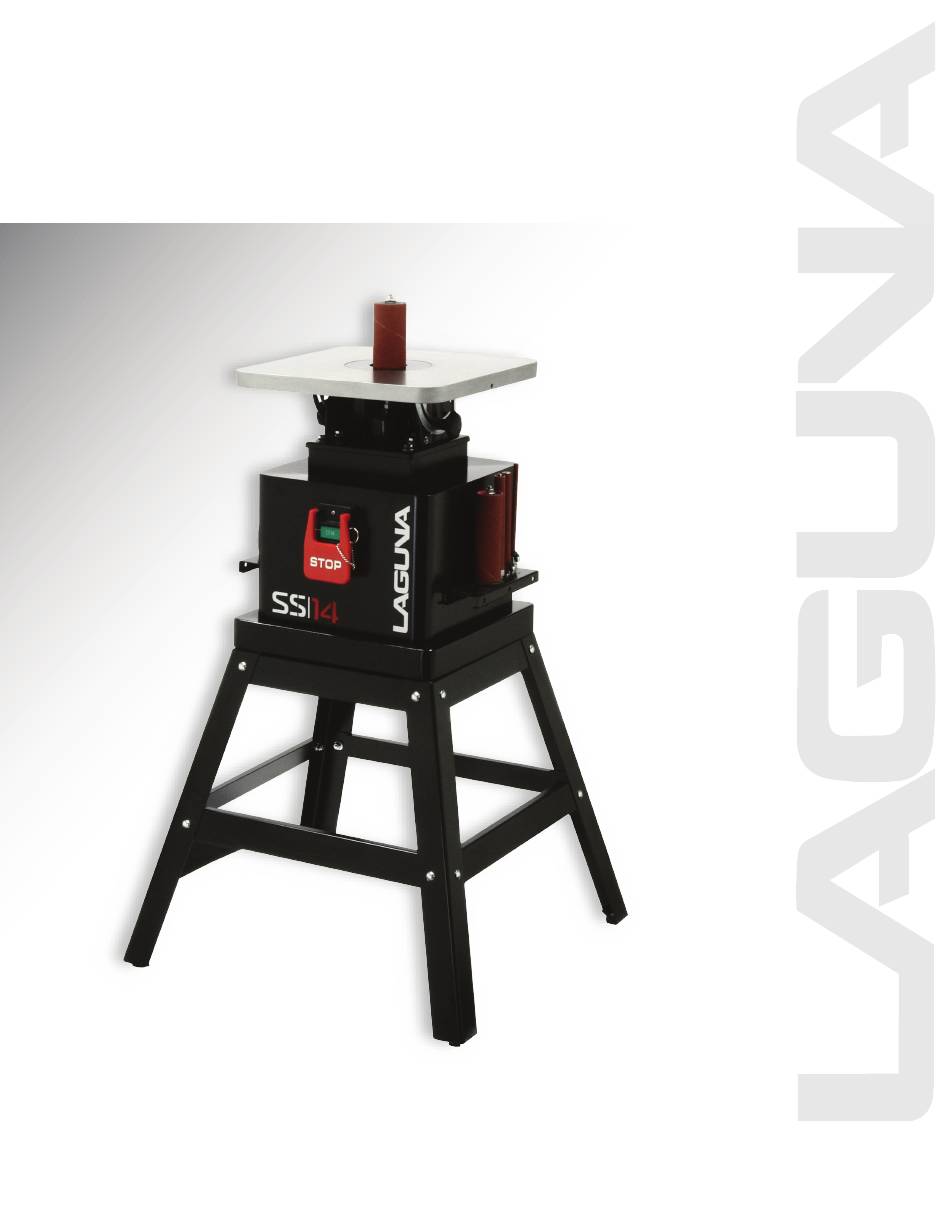

- Page 1 SS|14 Oscillation Vertical Spindle Sander Manual LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Part No. SS14 Ph: 800.234.1976 © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® www.lagunatools.com are the registered trademarks of Laguna Tools, Inc. All rights reserved.
-
Page 2: Table Of Contents
TABLE OF CONTNETS Table of contents _____________________________________________ 1 Additional markings and safety instrucitons _______________________ 2 Safety rules __________________________________________________ 2 Grounding instructions ________________________________________ 3 Specifications ________________________________________________ 5 Machine legend _______________________________________________ 6 Machine dimension ___________________________________________ 6 Safe operating position ________________________________________ 7 Power switch on / off __________________________________________ 7 On/Off switch padlock _________________________________________ 8 Instructions for operations _____________________________________ 8 Tilting the table _______________________________________________ 9... -
Page 3: Additional Markings And Safety Instrucitons
ADDITIONAL MARKINGS AND SAFETY INSTRUCITONS The following warning or equivalent wording also appears on the Instruction Manual as well as on the tool per UL987. French equivalent of warning markings also appear on tool for Canada. "WARNING: For Your Own Safety Read Instruction Manual before Operating Sander Wear eye protection. -
Page 4: Grounding Instructions
12. SECURE WORK. Use clamps or a vise to hold work when practical. It's safer than using your hand and it frees both hands to operate tool. 13. DON'T OVERREACH. Keep proper footing and balance at all times. 14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. - Page 5 may be used to connect this plug to a 2 pole receptacle as shown in Sketch B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. This adapter is not permitted in Canada.
-
Page 6: Specifications
SPECIFICATIONS MODEL OVS-TL Table size (L x W) 370x370mm Table tilt 0~45° Spindle speed 1720rpm Oscillations per minute Oscillation stroke 24mm Sanding sleeve length 141mm Max. workpiece height 80mm Dust port diameter 50.8mm Motor 1/2HP /110V Overall (L x W x H ) 370x370x480mm Net weight 35kgs... -
Page 7: Machine Legend
MACHINE LEGEND MACHINE DIMENSION... -
Page 8: Safe Operating Position
SAFE OPERATING POSITION POWER SWITCH ON / OFF Sanding machine assembly - magnetic switch which to start and stop the machine. The switch locations on the cabinet. When starts the machine the cover needs to be opened and press the button”... -
Page 9: On/Off Switch Padlock
ON/OFF SWITCH PADLOCK To avoid accidental staring by young children or others not qualified to use the tool, the use of a padlock is required. To lock out an on/off switch: 1. open the padlock. See fig.A 2. insert through hole in the star button. See fig.B 3. -
Page 10: Tilting The Table
TILTING THE TABLE Loosen the two table lock knobs (A), located under the table at both sides of the machine 2. Tilt the table forward to the desired angle with your hands. 3. An angle scale is provided at the right side of the trunnion to indicate the degree of table tilt. 4. -
Page 11: Mounting Spindle Drum
MOUNTING SPINDLE DRUM Disconnect the sander from the power source. 2. Select the proper diameter of spindle drum. 3. Clean the taper part of the spindle drum before mounting it into the spindle. 4. Use an open-end wrench to lock the spindle by holding its flat surface. At the same time, use another open-end wrench to tighten the spindle drum. -
Page 12: Selection Guide For Drum To Table Insert
SPARE PARTS FOR OVS-TL Key no. Part no. DISCRIPTION Quantity 30201001L BASE 101a 30201001a TOP PLATE S1006P1 STRAIN RELIEF L000133a POWER CORD S0030622M PHILIPS HEAD SCREW 10107098 RUBBER FEET S0210403 FLAT WASHER S0011600M HEX. NUT S0230300 SPRING WASHER S0030318 PHILIPS HEAD SCREW M329G211 MOTOR S0430650 S0040415M FLAT HEAD SCREW... -
Page 13: Troubleshooting
SPARE PARTS FOR OVS-TL Key no. Part no. DISCRIPTION Quantity 30202012 STORAGE PLATE FOR SPINDLES 30202013 STORAGE PLATE FOR INSERTS 30202014 OIL PLUG S0030304 ROUND HEAD SCREW 3/16"-24UNC*1/4" 30203001 HOUSING 304a 30203003 BRACKET (RIGHT) 304b 30203003a BRACKET (LEFT) S0020825M HEX. SCREW S0020811M HEX. -
Page 14: Assembly Drawing
SPARE PARTS FOR OVS-TL Key no. Part no. DISCRIPTION Quantity S0310312 SPRING PIN 30201003 WRENCH 10105091 WRENCH J8010004 WARNING LABEL WG000007 SWITCH COVER 419a WG000002 SWITCH BOX 419b WG000003 SWITCH PIN 30202039 RUBBER PAD S0520019 RING STW-19 S0110500L HEX. NUT 5/16"*18UNC*LH STAND 30201001B STAND... - Page 15 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
