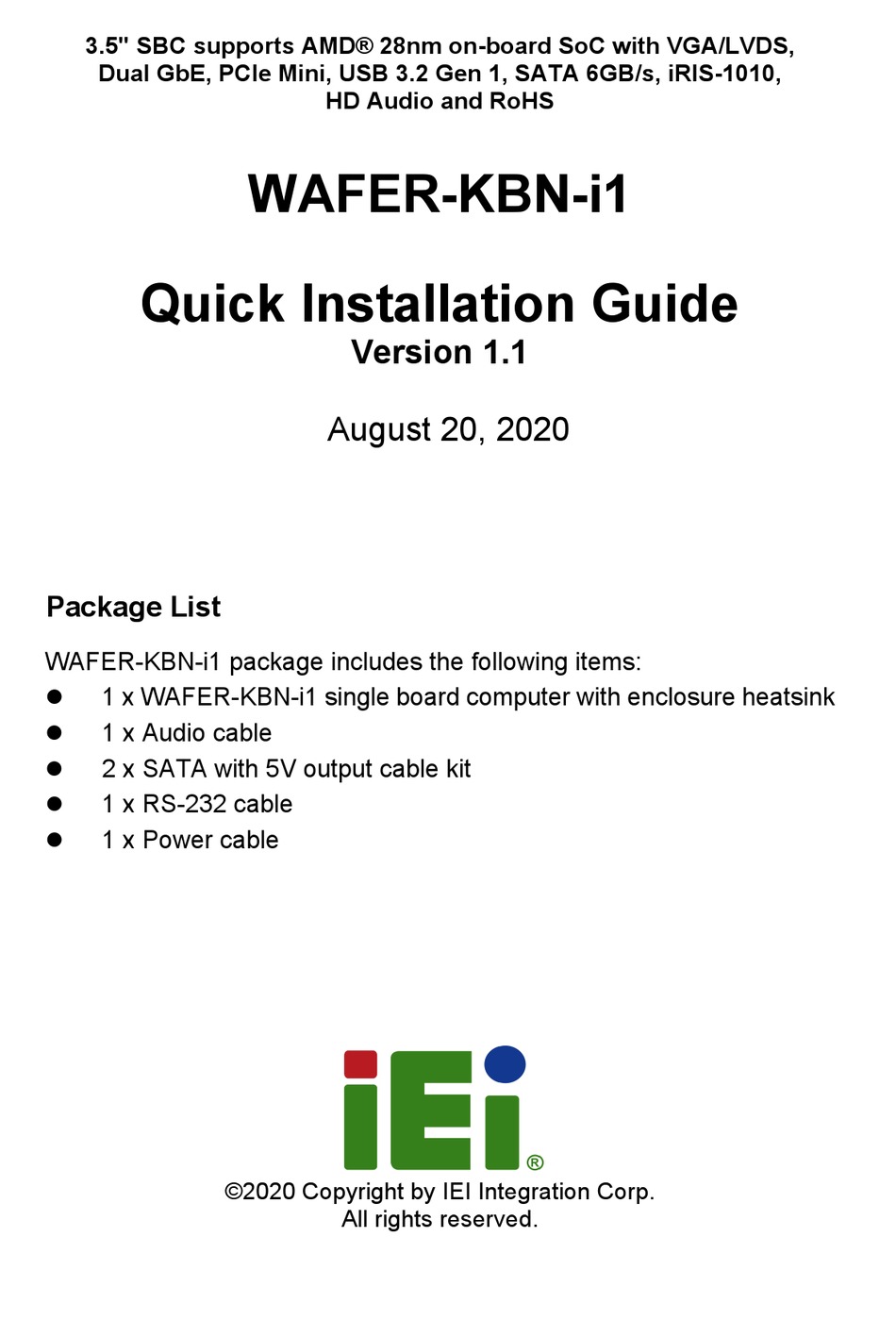

3.5" SBC supports AMD® 28nm on-board SoC with VGA/LVDS,
Dual GbE, PCIe Mini, USB 3.2 Gen 1, SATA 6GB/s, iRIS-1010,
Quick Installation Guide
Package List
WAFER-KBN-i1 package includes the following items:
1 x WAFER-KBN-i1 single board computer with enclosure heatsink
1 x Audio cable
2 x SATA with 5V output cable kit
1 x RS-232 cable
1 x Power cable
HD Audio and RoHS
WAFER-KBN-i1
Version 1.1
August 20, 2020
©2020 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology WAFER-KBN-i1
Summary of Contents for IEI Technology WAFER-KBN-i1
- Page 1 Quick Installation Guide Version 1.1 August 20, 2020 Package List WAFER-KBN-i1 package includes the following items: 1 x WAFER-KBN-i1 single board computer with enclosure heatsink 1 x Audio cable 2 x SATA with 5V output cable kit ...
- Page 2 Specifications SoC: AMD® G-Series 28nm low-power on-board SoC GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W) GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W) GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W) (by request) GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W) (by request) ...
- Page 3 Super IO: Fintek F81866 EC: iWDD Digital I/O: 8-bit digital I/O (4-bit input / 4-bit output) Audio: Realtek ALC892HD audio codec 1 x SPDIF by 4-pin (1x4) header for digital audio 1 x Analog audio by 10-pin (2x5) header ...
- Page 4 Operation Humidity: 5% ~ 95%, non-condensing Dimensions: 146mm x 102mm Weight GW/NW: 600g / 250g Ordering Information WAFER-KBN-i1-4151-R11: 3.5" SBC supports AMD® 28nm Quad-Core GX-415GA 1.5GHz (15W) on-board SoC with VGA/LVDS, Dual GbE, PCIe Mini, USB 3.2...
- Page 5 All the drivers and One Key Recovery IEI Resource Download Center utility for the WAFER-KBN-i1 are https://download.ieiworld.com available on IEI Resource Download Center. Type WAFER-KBN-i1 and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its content.
- Page 6 Power source connector COM2, COM3 RS-232 serial port connectors COM4 RS-422/485 serial port connector SATA1, SATA2 SATA 6Gb/s drive connectors SATA_PWR1, SATA_PWR2 SATA power connectors SMBUS connector C Connector IPMI LED connector CN10 Chassis intrusion connector SPDIF1 SPDIF connector USB2, USB3 Internal USB 2.0 connectors LAN1, LAN2 RJ-45 LAN connectors...
- Page 7 SW1: LVDS panel resolution selection * ON=0, OFF=1; Single=S, Dual=D 4-3-2-1 DESCRIPTION 0000 800x600 18bit S (default) 0001 1024x768 18bit S 0010 1024x768 24bit S 0011 1280x768 18bit S 0100 1280x800 18bit S 0101 1280x960 18bit S 0110 1280x1024 24bit D 0111 1366x768 18bit S 1000...
- Page 8 DIO1: Digital I/O connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 DP1: Display port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUX+ AUX- Lane2+ Lane3+ Lane2- Lane3- Lane0+...
- Page 9 KB_MS1: Keyboard and mouse connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION MSDATA MSCLK KBDATA KBCLK LVDS1: LVDS connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3...
- Page 10 M_PCIE1: PCIe Mini card slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V PCIE_CLK# PCIE_CLK PCIRST# PCIE_RXN(SATA_RX+) VCC3 PCIE_RXP(SATA_RX-) 1.5V SMBCLK PCIE_TXN(SATA_TX-) SMBDATA PCIE_TXP(SATA_TX+) USBD- USBD+ VCC3 VCC3 1.5V VCC3...
- Page 11 CN5: Power & HDD LED connector DESCRIPTION DESCRIPTION Power LED PWR_LED+ PWR_LED- HDD LED HDD_LED+ HDD_LED- RST_BTN1: Reset button connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET+ RESET- PWR_BTN1: Power button connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWR_BTN+ PWR_BTN- CN3: Power source connector PIN NO.
- Page 12 COM4: RS-422/485 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION RXD422- RXD422+ TXD422+/TXD485+ TXD422-/TXD485- SATA1, SATA2: Serial 6Gb/s connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_PWR1, SATA_PWR2: SATA power connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION CN6: SMBUS connector PIN NO.
- Page 13 CN9: IPMI LED connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION ID_LED+ ID_LED- CN10: Chassis Intrusion connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Pull high to +3.3V_ALW CHASSIS_OPEN SPDIF1: SPDIF connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SPDIF OUT SPDIF IN USB2, USB3: Internal USB 2.0 connectors PIN NO.
- Page 14 USB1: External USB 3.2 Gen 1 (5Gb/s) ports PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_VCC USB2_D0- USB2_D0- USB3_RXD0- USB3_RXD0+ USB3_TXD0- USB3_TXD0+ USB_VCC USB2_D1- USB2_D1+ USB3_RXD1- USB3_RXD1+ USB3_TXD1- USB3_TXD1+ LAN1: RJ-45 LAN connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN1_MDI0+ LAN1_MDI2+ LAN1_MDI0- LAN1_MDI2- LAN1_MDI1+...
- Page 15 COM1: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VGA1: VGA connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE DDCDAT HSYNC VSYNC DDCCLK...
- Page 16 Board Layout: Jumper and Connector Locations...
- Page 17 （Unit: mm）...
