Introduction

1.1 Features
• PIC18F47Q10-I/MP Microcontroller
• One Yellow User LED
• One Mechanical User Switch
• On-Board Debugger
– Board identification in MPLAB
– One green power and status LED
– Programming and debugging
– Virtual COM port (CDC)
– One logic analyzer channel (DGI GPIO)
• USB Powered
• Adjustable Target Voltage
– MIC5353 LDO regulator controlled by the on-board debugger
– 1.8-5.1V output voltage (limited by USB input voltage)
– 500 mA maximum output current (limited by ambient temperature and output voltage)
1.2 Kit Overview
The Microchip PIC18F47Q10 Curiosity Nano evaluation kit is a hardware platform to evaluate the
PIC18F47Q10 microcontroller.

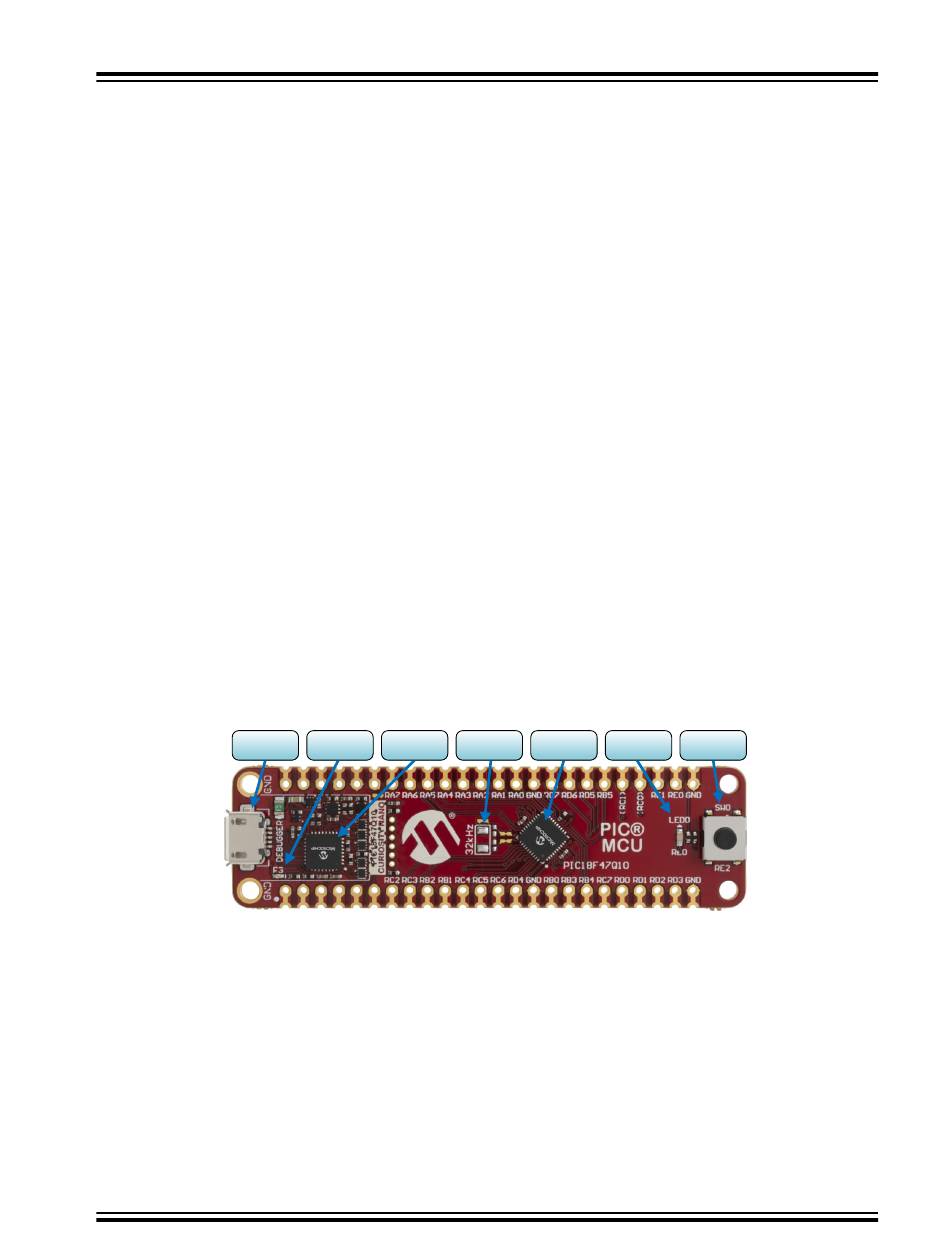

Figure 1-1. PIC18F47Q10 Curiosity Nano Evaluation Kit Overview
©
2019 Microchip Technology Inc.
®
X
Micro USB Power/Status
Debugger
Connector LED
PIC18F47Q10 Curiosity Nano
32.768 kHz
PIC18F47Q10 User LED
Crystal
MCU (LED0)
Footprint
User Guide
Introduction
User Switch
(SW0)
