2�4 Blade assembly
WARNING: Use protective gloves� The tiller
blades are sharp and can cause injury�

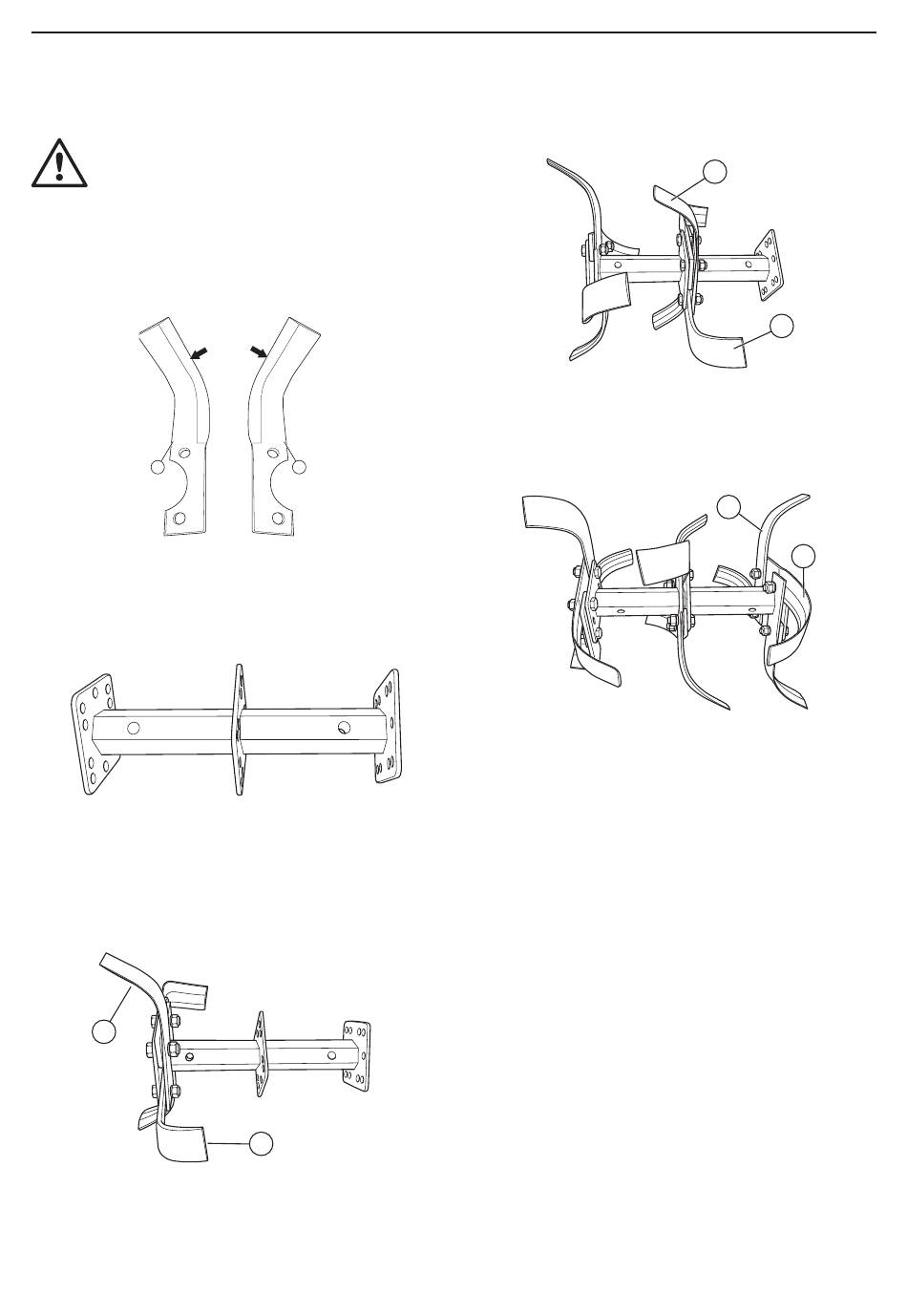

2�4�1 To identify the blades
The right blade (A) and the right blade (B) each have a
sharp edge but they are curved differently.
A
2�4�2

To assemble the main blades

1. Locate two main holders.
2. Attach two right blades (A) and two left blades (B) to
the left main holder.
3. Attach two left blades (A) and two right blades (B) to
the right main holder.
A
4. Attach two right blades (A) and two left blades (B) to
the left main holder.
14 – English
B
B
5. Attach two left blades (A) and two right blades (B) to
the right main holder.
6. Attach two right blades (A) and two left blades (B)
to the left main holder.
7. Attach two left blades (A) and two right blades (B)
to the right main holder.
8. Make sure the sharp edge of the blades point in the
same direction.
A
B
A
B
