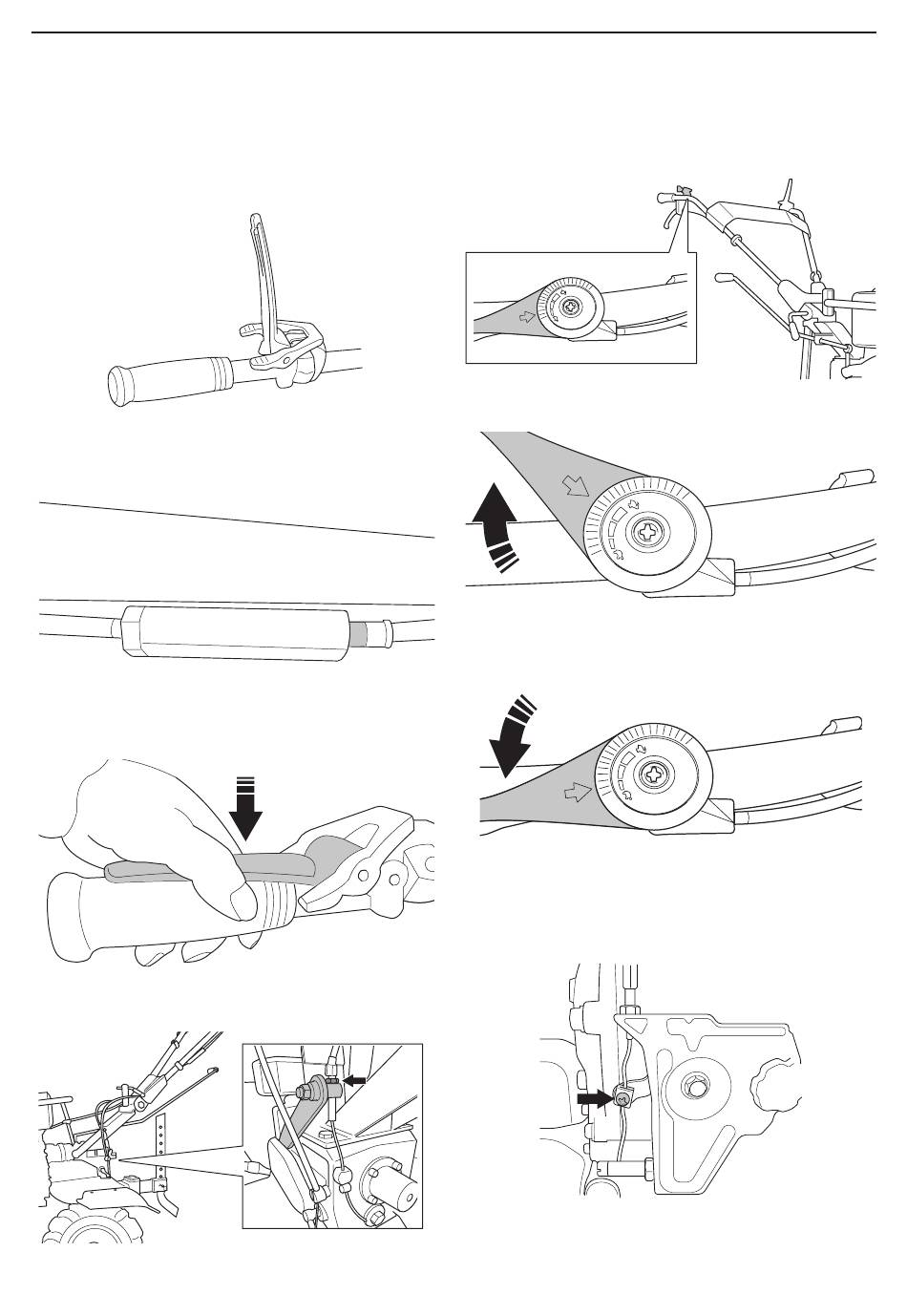

2�3 Machine adjustment
2�3�1 To adjust the clutch cable
1. Disengage the clutch.
2. Do a check that the clutch cable is not damaged.
3.
Engage the clutch and do a check that the clutch
cable contracts 3-5mm.
4.
If the cable is too tight or loose when clutch is en-
gaged, adjust the cable with the cable adjuster.
12 – English
2�3�2 To adjust the throttle control and cable/
stop function
1. Locate the throttle control and start the engine.
2. Turn the throttle control to the maximum. The engine
will reach the maximum speed.
3. Turn the throttle control to the minimum.
4. If the engine does not stop, do a check that the
clutch arm can move freely.
5. Loosen the fitting bolt, make sure the throttle control
is in the "min" position and tighten the bolt.
