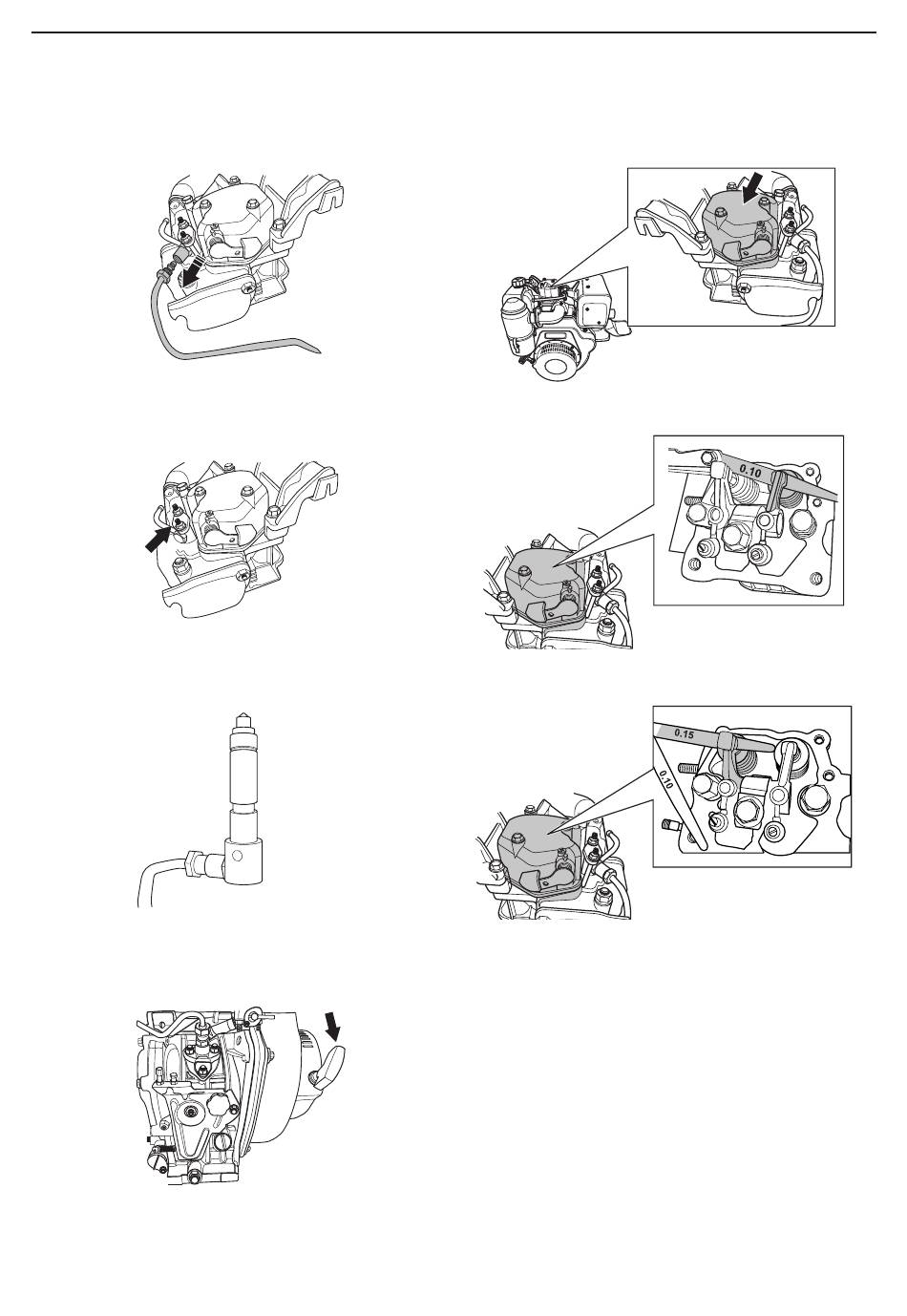

3�2�5 To do a check of the fuel injector
1. Remove the high pressure fuel line.
2. Disassemble the fuel injector retainer plate.
3. Disconnect the injector nozzle and attach it to the
high pressure line.
4. Pull the start handle and do a check of the fuel spray
of the nozzle. Make sure that there are no fuel
dripping.
3�2�6 To do a check of the valve clearance
1. Locate the valves.
2. Make sure the inlet valve clearance is 0.1mm.
3. Make sure the exhaust valve clearance is 0.15mm
