    Jun 25, 2015 1. Overview Purpose This RSK+ is an evaluation tool for Renesas microcontrollers. This manual describes the technical details of the RSK+ hardware. The Quick Start Guide and Tutorial Manual provide details of the software installation and debugging environment.

  • Page 10: Board Specification

    RSK+RX64M 1. Overview Board specification Board specification was shown in Table 1-1 below. Item Specification Part No : R5F564MLCDFC Microcontroller Package : 176-pin LFQFP On-Chip Memory : ROM 4MB+64KB, RAM 512KB+32KB+8KB SDRAM (MT48LC8M16A2P-6A) : 128Mbit On-Board Memory C EEPROM (R1EX24016ASAS0G) : 16Kbit SPI Serial Flash (MX25L3235EM2I-10G) : 32Mbit x 2 RX64M Main : 24MHz RX64M Sub : 32.768kHz...

  • Page 11: Power Supply

    When the RSK+ is purchased, the RSK+ board has the ‘Release’ or stand-alone code from the example tutorial software pre-programmed into the Renesas microcontroller. On powering up the board the LCD panel will show ‘RSK+RX64M’, ‘Tutorial’ and ‘Press Any Switch’ in the bottom left and will respond to any switch press by performing an A/D conversion and displaying the result in the main part of the LCD panel.

  • Page 12: Board Layout

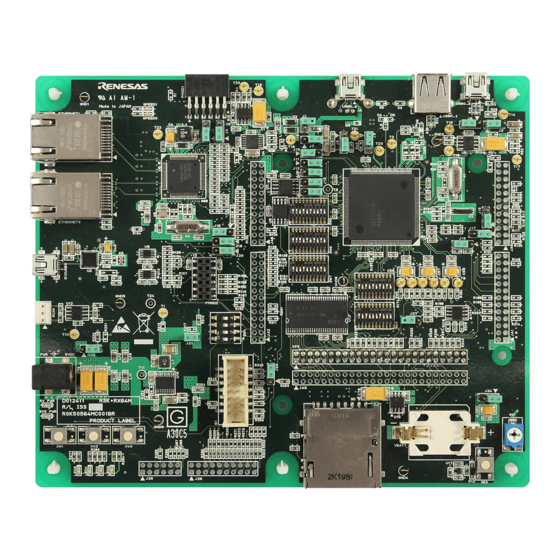

    RSK+RX64M 3. Board Layout 3. Board Layout Component Layout Figure 3-1 below shows the top component layout of the board. Application Board Interfaces (Application Headers) Pmod Connector USB0 USBA USB0 (LCD) Host(RX) Function(RX) Function(RX) Ethernet Status LEDs PMOD1 Ethernet USBA Host(RX) * Reverse ETHERNET1 Connector Serial Flash (RSPI)

  • Page 13: Board Dimensions

    RSK+RX64M 3. Board Layout Board Dimensions Figure 3-2 below gives the board dimensions and connector positions. All the through-hole connectors are on a common 0.1 inch grid for easy interfacing. Corners x 4 3.0 mm radius USBA Host (Reverse) PMOD1 ETHERNET1 (Ethernet Connector) PHY IC...

  • Page 14: Component Placement

    RSK+RX64M 3. Board Layout Component Placement Figure 3-3 below shows placement of individual components on the top-side PCB – bottom-side component placement can be seen in Figure 3-4. Component types and values can be looked up using the board schematics. USBA_2 PMOD1 USB0_2...
  • Page 15 RSK+RX64M 3. Board Layout USBA_3 USBA_1 R321 R327 R323 R324 R336 R331 R333 R503 R320 R335 R334 R322 C101 R326 C100 R332 C124 C102 C104 C103 R343 R359 R340 R341 C106 R339 C108 R342 C107 R353 R345 R346 C109 R344 C110 R349 R352...

  • Page 16: Connectivity

    RSK+RX64M 4. Connectivity 4. Connectivity Internal RSK+ Connections The diagram below shows the RSK+ board components and their connectivity to the MCU. DC PWR IN (5V) USB to Serial Regulator IC VBUS 5V Application Board Interface RL78/G1C (Application Header) E1 Debug Interface Function Direct LCD Drive Header (TFT) USB0 (Function/Host)

  • Page 17: Debugger Connections

    RSK+RX64M 4. Connectivity Debugger Connections The diagram below shows the connections between the RSK+, E1 debugger and the host PC. 5V External Power LCD Display User Interface Cable USB Cable E1 Emulator CPU Board Host PC Figure 4-2: Debugger Connection Diagram R20UT2593EG0110 Rev.

  • Page 18: User Circuitry

    RSK+RX64M User Circuitry 5. User Circuitry Reset Circuit A reset control circuit is fitted to the RSK+ to generate the required reset signal, and is triggered from the RES switch. Refer to the RX64M User’s Manual: Hardware for details regarding the reset signal timing requirements, and the RSK+ schematics for information regarding the reset circuitry in use on the board.

  • Page 19: Leds

    RSK+RX64M User Circuitry LEDs There are 12 LEDs on the RSK+ board. The function of each LED, its colour, and its connections are shown in Table 5-3. Colour Function Port 3V3_PWR Green Indicates the status of the Board_3V3 power rail. 5V_PWR Green Indicates the status of the Board_5V power rail.

  • Page 20: Pmod™ Debug Lcd Module

    RSK+RX64M User Circuitry Pmod™ Debug LCD Module A Pmod™ Compatible debug LCD module is supplied with the RSK+ board, and should be connected to the PMOD1 header. Care should be taken when installing the LCD module to ensure pins are not bent or damaged. The LCD module is vulnerable to electrostatic discharge (ESD);...

  • Page 21: Usb Serial Port

    User Circuitry USB Serial Port A USB serial port implemented in another Renesas low power microcontroller (RL78/G1C) is fitted on the RSK+ board to the microcontroller Serial Communications Interface (SCI) module. Multiple options are provided to allow re-use of the serial interface.
  • Page 22 RSK+RX64M User Circuitry 5.7.1 Reading the Virtual COM Port Number In order for the PC to be able to communicate with the RSK+ board via the USB virtual COM port, the correct COM port number must be determined. If the COM port number is not known, follow this process: 1.
  • Page 23 RSK+RX64M User Circuitry 2. Select the “Port Settings” tab and click “Advanced…” Figure 5-5: Device Manager Properties-2 3. Select the new COM port from the drop down list. Bear in mind that the “in use” label on various ports listed may not actually mean that that port is in use at this current point in time. Figure 5-6: Device Manager Properties-3 4.

  • Page 24: Controller Area Network (Can)

    Table 5-7: CAN Connections Ethernet When running any Ethernet software, a unique MAC address should be used. A unique Renesas allocated MAC address is attached to the RSK+RX64M PCB as a sticker, and should be always be used with this device ensured to ensure full compatibility when using other Renesas hardware on a common Ethernet connection.
  • Page 25 RSK+RX64M User Circuitry Ethernet signal Function Port ET1MDIO Management data serial I/O ET1MDC Management serial clock ET1TXCLK Transmit clock ET1TXEN_RMII1TXDEN Transmit enable. ET1TXER Transmit error. ET1ETXD0_RMII1TXD0 Transmit data bit 0. ET1ETXD1_RMII1TXD1 Transmit data bit 1. ET1ETXD2 Transmit data bit 2. ET1ETXD3 Transmit data bit 3.

  • Page 26: Universal Serial Bus (Usb)

    RSK+RX64M User Circuitry 5.10 Universal Serial Bus (USB) This RSK+ board is fitted with a USB host socket (type A) and a function socket (type Mini B). USB module USB0 is connected to the host and function socket, and can operate as either a host or function device. USB module USBA is connected to the host and function socket, and can operate as either a host or function device.

  • Page 27: Lcd Direct Drive Header (Tft)

    LCD Direct Drive Header (TFT) This RSK+ board is fitted with a LCD Direct Drive thru-hole pattern, which allows connection to compatible Renesas LCD application boards. The pin connections of this header are listed in Table 5-12 below. LCD Direct Drive Header (TFT)

  • Page 28: External Bus

    Table 5-13: External Bus Address Space 5.13 Renesas Serial Peripheral Interface (RSPI) The RX64M features one Renesas Serial Peripheral Interface module (Renesas SPI or RSPI). Table 5-14 below details the connected devices, and their connections to the MCU. Slave Select...

  • Page 29: Sd Host Interface (Sdhi)

    RSK+RX64M User Circuitry 5.16 SD Host Interface (SDHI) A SD Card Slot is fitted to the RSK+ board, and connected to the SD Host Interface (SDHI) MCU peripheral. For further details regarding the SDHI operation, please refer to the RX64M Group User’s Manual: Hardware. The connections for the SDHI signals are listed in Table 5-16 below.

  • Page 30: Serial Sound Interface (Ssi)

    RSK+RX64M User Circuitry 5.18 Serial Sound Interface (SSI) This RSK+ board is fitted with a Serial Sound Interface (SSI) thru-hole pattern. The connections for the PDC signals are listed in Table 5-18 below. SSI Header (J25) Circuit Net Name Circuit Net Name Port Port Board_5V...

  • Page 31: Configuration

    RSK+RX64M Configuration 6. Configuration Modifying the RSK+ This section lists the option links that are used to modify the way RSK+ operates in order to access different configurations. Configurations are made by modifying link resistors or headers with movable jumpers or by configuration DIP switches A link resistor is a 0Ω...

  • Page 32: E1 Debugger Configuration

    RSK+RX64M Configuration E1 Debugger Configuration Table 6-2 below details the function of the option links associated with E1 Debugger configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function MISOA-A J12.Pin1-2 U7.2 J12.Pin2-3, ET0COL SW6.4.OFF U6.21 R379 ET0COL_MISOA-A_PC7 SW6.3.ON J12.Pin2-3,...

  • Page 33: Power Supply Configuration

    RSK+RX64M Configuration Power Supply Configuration Table 6-4 below details the function of the option links associated with power supply configuration. Exclusive Function Connection Reference Function Enable Disable Interface Function J2.Pin2-3, Connects VBUS0 to 5V Power rail. R220 J22.Pin2-3, R221 VBUS0, VBUSA J7.Pin2-3, Connects VBUSA to 5V Power rail.

  • Page 34: Analog Power & Adc & Dac Configuration

    RSK+RX64M Configuration Analog Power & ADC & DAC Configuration Table 6-7 below details the function of the option links associated with ADC & DAC configuration. Exclusive Function Connection Signal name Signal Enable Disable Interface Function Enable Disable R461 JA1.9 R214, R205 (Direct Input via JA1.9) R435...

  • Page 35: Bus & Sdram Configuration

    RSK+RX64M Configuration BUS & SDRAM Configuration Table 6-8 to Table 6-11 below details the function of the option links associated with BUS & SDRAM configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function USBAOVRCUR U3.2 R351 R83, R478 U4.5 R83,...
  • Page 36 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U13.38 R444 SDCLK SDCLK R398 JA3.44 R443 R348 ET0ERXD1_RMII SW6.7.ON SW6.8.OFF U6.54 0RXD1_CS4n ET0ERXD1_RMII0RXD1_CS4n CS4n SW6.8.ON SW6.7.OFF JA3.27 R250 JA3.1 A0_MTIOC6D MTIOC6D R250 JA5.20 R423 U13.23, JA3.2 A1_MTIOC7B MTIOC7B R423...
  • Page 37 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function A19_ET0TXER_QIO JA3.40 A0-A_MTIOC4D SW5.7.OFF, JA3.40, ET0TXER SW5.6.ON SW5.8.OFF U6.47 SW5.6.OFF, SW5.7.ON, JA3.40, A19_ET0TXER_QIOA0- BD_QIOA0-A SW5.8.OFF, R365 U8.5 R364 A_MTIOC4D SW5.6.OFF, JA3.40, SW5.7.ON, TFT_QIOA0-A SW5.8.OFF, R233 R364 TFT.31 R365 SW5.6.OFF,...
  • Page 38 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U13.11, JA3.23, SW8.9.ON SW8.10.OFF TFT.13 D6_SDD0-B SDD0-B SW8.10.ON SW8.9.OFF SD1.7 U13.13, JA3.24, SW9.1.ON SW9.2.OFF TFT.14 D7_SDD1-B SDD1-B SW9.2.ON SW9.1.OFF SD1.8 U13.42, JA3.29, R440 R186 TFT.15 D8_IO0 R186 R440 JA1.15...

  • Page 39: Can Configuration

    RSK+RX64M Configuration CAN Configuration Table 6-12 below details the function of the option links associated with CAN configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function VSYNC R267 J15.Open J26.9 U12.1 R208 CTX0 J15.Pin1-2 R267 JA5.5 CTX0_VSYNC_MTIOC0C_IRQ2-DS R147 R146...
  • Page 40 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function YINPUT1 R238 R131, TFT.44 R505 AN005_YINPUT1_P45 167 P45 AN005 R131 R238, R505 JA5.2 R505 R131, R238 PMOD1.1 R408 XINPUT2 R239 R123, R506 TFT.45 AN006_XINPUT2_P46 166 P46 AN006 R123 R239, R506...
  • Page 41 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U13.2, JA3.17, TFT.7 U13.4, JA3.18, TFT.8 U13.5, JA3.19, SW8.1.ON SW8.2.OFF TFT.9 D2_SDD2-B SDD2-B SW8.2.ON SW8.1.OFF SD1.9 U13.7, JA3.20, SW8.3.ON SW8.4.OFF TFT.10 D3_SDD3-B SDD3-B SW8.4.ON SW8.3.OFF SD1.1 U13.8, JA3.21, SW8.5.ON SW8.6.OFF...

  • Page 42: Ethernet Configuration

    RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U13.50, JA3.34, R228 R162 TFT.20 D13_IO5 R162 R228 JA1.20 SW9.4.OFF, SW9.5.OFF, U13.51, JA3.35, SW9.3.ON SW9.6.OFF TFT.21 SW9.5.OFF, SW9.3.OFF, SDCD-B SW9.4.ON SD1.10 SW9.6.OFF D14_SDCD- B_MTIOC6C_IO6 SW9.3.OFF, SW9.4.OFF, MTIOC6C SW9.5.ON JA5.11...
  • Page 43 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function SW7.2.OFF, ET0TXEN_RMII0TXDEN SW7.1.ON U6.48 SW7.3.OFF ET0TXEN_RMII0TXDEN_QIOA2- SW7.1.OFF, QIOA2-A SW7.2.ON U8.3 SW7.3.OFF A_MTIOC3B SW7.1.OFF, MTIOC3B SW7.3.ON JA2.13 SW7.2.OFF SW7.5.OFF, ET0ETXD0_RMII0TXD0 SW7.4.ON U6.43 SW7.6.OFF ET0ETXD0_RMII0TXD0_QIOA3- SW7.4.OFF, QIOA3-A SW7.5.ON U8.7 SW7.6.OFF A_MTIOC3D...
  • Page 44 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function A20_ET0TXCLK_QIOA1- R339 JA3.41 A_POE0n R339, SW5.10.OF ET0TXCLK JA3.41, U6.49 SW5.9.ON R339, SW5.9.OFF, BD_QIOA1-A SW5.10.ON JA3.41, U8.2 A20_ET0TXCLK_QIOA1- R360, R362 R361 A_POE0n R339, JA3.41, SW5.9.OFF, TFT_QIOA1-A SW5.10.ON R224 R361, R362...

  • Page 45: General Io & Led Configuration

    RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function ET1ERXD0_RMII1RXD0 U6.35 ET1ERXD0_RMII1RXD0 ET1ERXD1_RMII1RXD1 ET1ERXD1_RMII1RXD1 U6.36 ET1ERXD2 R402 R159 U6.37 R370 ET1ERXD2_P96 R159 R402 PMOD2.9 ET1ERXD3 R401 R168 U6.38 R369 ET1ERXD3_P97 R168 R401 PMOD2.10 ET1RXCLK R137 U6.41 ET1RXCLK_REF50CK1 R95, R96,...
  • Page 46 RSK+RX64M Configuration Exclusive Function Connection Signal name Signal Enable Disable Interface Function Enable Disable SW9.4.OFF, U13.51, JA3.35, SW9.3.ON SW9.5.OFF, TFT.21 SW9.6.OFF SW9.3.OFF, SDCD-B SW9.4.ON SW9.5.OFF, SD1.10 SW9.6.OFF D14_SDCD-B_MTIOC6C_IO6 126 SW9.3.OFF, SW9.4.OFF, MTIOC6C SW9.5.ON JA5.11 SW9.6.OFF SW9.3.OFF, SW9.4.OFF, SW9.6.ON JA1.21 SW9.5.OFF SW9.8.OFF, U13.53, JA3.36, SW9.7.ON...

  • Page 47: I2C & Eeprom Configuration

    RSK+RX64M Configuration 6.12 I2C & EEPROM Configuration Table 6-24 and Table 6-25 below details the function of the option links associated with I2C & EEPROM configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U14.6 R203 SCL2-DS J27.Pin1-2 J6.Open...

  • Page 48: Mtu & Tpu & Poe Configuration

    RSK+RX64M Configuration 6.13 MTU & TPU & POE Configuration Table 6-26 to Table 6-29 below details the function of the option links associated with MTU & TPU & POE configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U3.2...
  • Page 49 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function R77, R321 AUDIOCLK R285 R268, J25.5 USBAOVRCURB_AUDIOCLK_ USBAOVRCURB R321 R77, R268, R285 U4.6 PIXD6_MTCLKC PIXD6 R268 R77, R285, R321 J26.12 MTCLKC R268, R285, R321 JA5.17 R75, SSISCK0 R287 R269...
  • Page 50 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function ET0ETXD1_RMII0T SW7.7.ON SW7.8.OFF U6.44 ET0ETXD1_RMII0TXD1_MTIO EDREQ1 SW7.8.ON, R231 SW7.7.OFF, R453 JA6.1, TFT28 C4A_EDREQ1 MTIOC4A SW7.8.ON, R453 SW7.7.OFF, R231 JA2.15 ET0CRS_RMII0CR SW7.9.ON SW7.10.OFF U6.60 R504 R503 ET0CRS_RMII0CRSDV_MTIO C4C_EDACK1 EDACK1 SW7.10.ON,...
  • Page 51 RSK+RX64M Configuration Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function A20_ET0TXCLK_QIOA R339 JA3.41 1-A_POE0n R339, ET0TXCLK SW5.10.OFF JA3.41, U6.49 SW5.9.ON R339, SW5.9.OFF, JA3.41, BD_QIOA1-A SW5.10.ON, U8.2 A20_ET0TXCLK_QIOA1- R360, R362 R361 A_POE0n R339, SW5.9.OFF, JA3.41, R224 TFT_QIOA1-A SW5.10.ON, TFT.30 R361,...

  • Page 52: Irq & Nmi & Switch Configuration

    RSK+RX64M Configuration 6.14 IRQ & NMI & Switch Configuration Table 6-30 below details the function of the option links associated with IRQ & NMI & Switch configuration. Exclusive Function Connection Signal name Interface Disa Signal Enable Disable Enable Function R494 ADTRG0n ADTRG0n JA1.8...

  • Page 53: Pdc Configuration

    RSK+RX64M Configuration 6.15 PDC Configuration Table 6-31 and Table 6-32 below detail the function of the option links associated with PDC configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function TXD6 R508 PMOD1.2 TXD6_SSDA6 SSDA6 R511 J26.19 R303 RXD6...

  • Page 54: Pmod1 Configuration

    RSK+RX64M Configuration 6.16 PMOD1 Configuration Table 6-33 below details the function of the option links associated with PMOD1 Interface configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function TXD6 R508 PMOD1.2 TXD6_SSDA6 SSDA6 R511 J26.19 R303 RXD6 R512 PMOD1.3...

  • Page 55: Pmod2 Configuration

    RSK+RX64M Configuration 6.17 PMOD2 Configuration Table 6-34 below details the function of the option links associated with PMOD2 Interface configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function AN002 R200 R145 JA1.11 AN002_IRQ10-DS IRQ10-DS R145 R200 PMOD2.7 AN003 R199...

  • Page 56: Qspi Configuration

    RSK+RX64M Configuration 6.18 QSPI Configuration Table 6-35 below details the function of the option links associated with QSPI configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function J10.Pin1-2, R95, R96, REF50CK0 U6.33, X5.3 R94, R106 R118 J10.Pin1-2, ET0RXCLK U6.59...

  • Page 57: Rspi Configuration

    RSK+RX64M Configuration 6.19 RSPI Configuration Table 6-36 below details the function of the option links associated with RSPI configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function SSLA1-A J11.Pin1-2 U7.1 A16_ET0ERXD3 J11.Pin2-3 JA3.37 A16_ET0ERXD3_SSLA1-A J11.Pin2-3, ET0ERXD3 JA3.37, U6.56 R54 SW5.1.ON RSPCKA-A...

  • Page 58: Sdhi Configuration

    RSK+RX64M Configuration 6.20 SDHI Configuration Table 6-37 below details the function of the option links associated with SD Host Interface configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U13.5, JA3.19, SW8.1.ON SW8.2.OFF TFT.9 D2_SDD2-B SDD2-B SW8.2.ON SW8.1.OFF SD1.9...

  • Page 59: Serial & Usb To Serial Configuration

    RSK+RX64M Configuration 6.21 Serial & USB to Serial Configuration Table 6-38 below details the function of the option links associated with Serial & USB to Serial configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function R421 AN001 R204 R236,...

  • Page 60: Ssi Configuration

    RSK+RX64M Configuration 6.22 SSI Configuration Table 6-39 below details the function of the option links associated with Serial Sound Interface configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function SSITXD0 R288 R273, R518 J25.12 R288, PIXD3 R273 R518 J26.15...

  • Page 61: Usb Configuration

    RSK+RX64M Configuration 6.23 USB Configuration Table 6-40 and Table 6-41 below details the function of the option links associated with the USB Configuration. Exclusive Function Connection Signal name Interface Signal Enable Disable Enable Disable Function U3.2 USBAOVRCURA R351 R83, R478 U4.5 R83, R464...
  • Page 62 RSK+RX64M Configuration Exclusive Function Connection Reference Interface Function Enable Disable Function Enables Self-powered. USB0VBUS Enables Bus-powered. Sets current limit as 0.7A. U3.4 ILIM Sets current limit as 1.95A. U3.4 VBUSA Enables USBA OTG mode. J7.Open U4.1 Connects VBUSA to J22.3 R220 R221 J22.3...

  • Page 63: Headers

    7. Headers Application Headers This RSK+ board is fitted with application headers, which can be used to connect compatible Renesas application devices or as easy access to MCU pins. Table 7-1 below lists the connections of the application header, JA1.
  • Page 64 RSK+RX64M 7. Headers Table 7-2 below lists the connections of the application header, JA2. Application Header JA2 Function Function MCU Pin MCU Pin Circuit Net Name Circuit Net Name RESET EXTAL RESn CON_EXTAL Vss1 GROUND WDT_OVF SCIaTX A-TXD7 IRQ0 / WKUP / M1_HSIN0 SCIaRX 27 / NC / 27 MTIOC0A_IRQ4...
  • Page 65 RSK+RX64M 7. Headers Table 7-3 below lists the connections of the BUS application header, JA3. Application Header JA3 (Bus) Function Function MCU Pin MCU Pin Circuit Net Name Circuit Net Name WR / SDWE 72 / 136 WRn / WEn CS4n CON_SDCSn A16_ET0ERXD3...
  • Page 66 RSK+RX64M 7. Headers Table 7-4 below lists the connections of the application header, JA5. Application Header JA5 Function Function MCU Pin MCU Pin Circuit Net Name Circuit Net Name ADC4 ADC5 AN004 AN005 ADC6 ADC7 AN006 AN007 CAN1TX CAN1RX CTX0 CRX0 CAN2TX CAN2RX...
  • Page 67 RSK+RX64M 7. Headers Table 7-5 below lists the connections of the application header, JA6. Application Header JA6 Function Function MCU Pin MCU Pin Circuit Net Name Circuit Net Name DREQ DACK EDREQ1 EDACK1 TEND STBYn RS232TX RS232RX RS232TX RS232RX SCIbRX SCIbTX RXD1 TXD1...

  • Page 68: Generic Headers

    RSK+RX64M 7. Headers Generic Headers Generic headers, used to provide easy connections to various pins from devices fitted to the RSK+. Table 7-6 below lists the connections of the LCD Direct Drive (TFT) Header. LCD Direct Drive Header (TFT) Header Name Header Name MCU Pin MCU Pin...

  • Page 69: Code Development

    8. Code Development Overview For all code debugging using Renesas software tools, the RSK+ board must be connected to a PC via an E1/E20 debugger. An E1 debugger is supplied with this RSK+ product. For further information regarding the debugging capabilities of the E1/E20 debuggers, refer to E1/E20 Emulator Additional Document for User's Manual (R20UT0399EJ).

  • Page 70: Additional Information

    Copyright This document may be, wholly or partially, subject to change without notice. All rights reserved. Duplication of this document, either in whole or part is prohibited without the written permission of Renesas Electronics Europe Limited. © 2014 (2015) Renesas Electronics Europe Limited. All rights reserved.
  • Page 71 REVISION HISTORY RSK+RX64M User’s Manual (for e studio) Description Rev. Date Page Summary  1.00 Jun 20, 2014 First Edition issued  Table of Contents was updated. Section 1. Purpose and Target Readers was corrected.  - RSKRX64M Code Generator Tutorial Manual was corrected to RSK+RX64M Code Generator Tutorial Manual.
  • Page 72 Renesas Starter Kit+ Manual: User’s Manual Publication Date: Rev. 1.10 Jun 25, 2015 Published by: Renesas Electronics Corporation...
