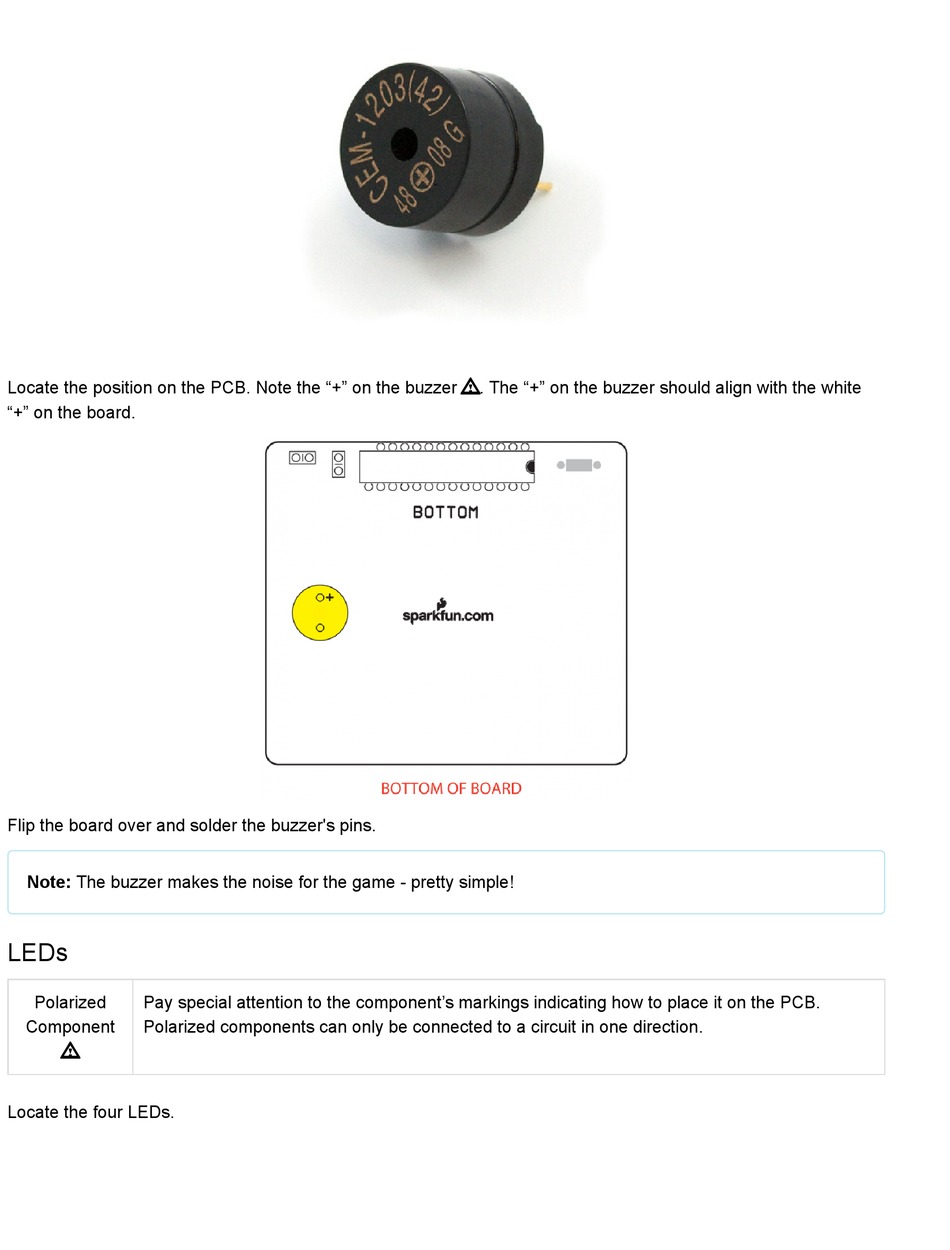

Locate the position on the PCB. Note the "+" on the buzzer
"+" on the board.
Flip the board over and solder the buzzer's pins.
Note: The buzzer makes the noise for the game - pretty simple!
LEDs
Polarized
Pay special attention to the component's markings indicating how to place it on the PCB.
Component
Polarized components can only be connected to a circuit in one direction.
Locate the four LEDs.
. The "+" on the buzzer should align with the white
