Sperry instruments SMART meter Operating Instructions Manual

5 function digital multimeter
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Display
Power / SELECT Button
Test Leads
CAT III 600V
Probe Tip Caps
AUTO
Auto Ranging
-
Negative Value
Low Battery
OL
mV, V
Overload
OPERATING INSTRUCTIONS
SMART meter

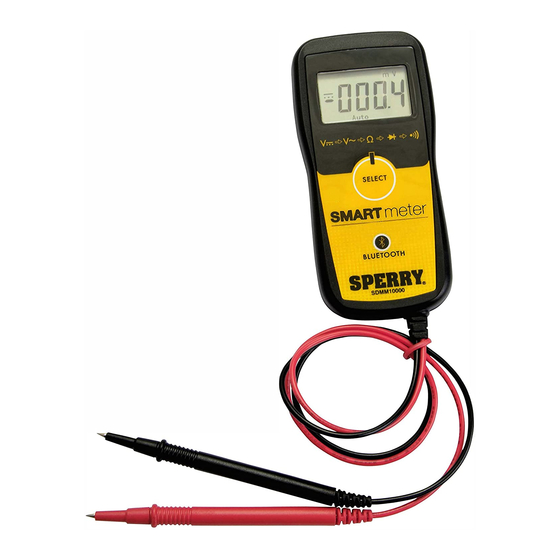

SMART 5 Function Digital MultiMeter
SDMM10000

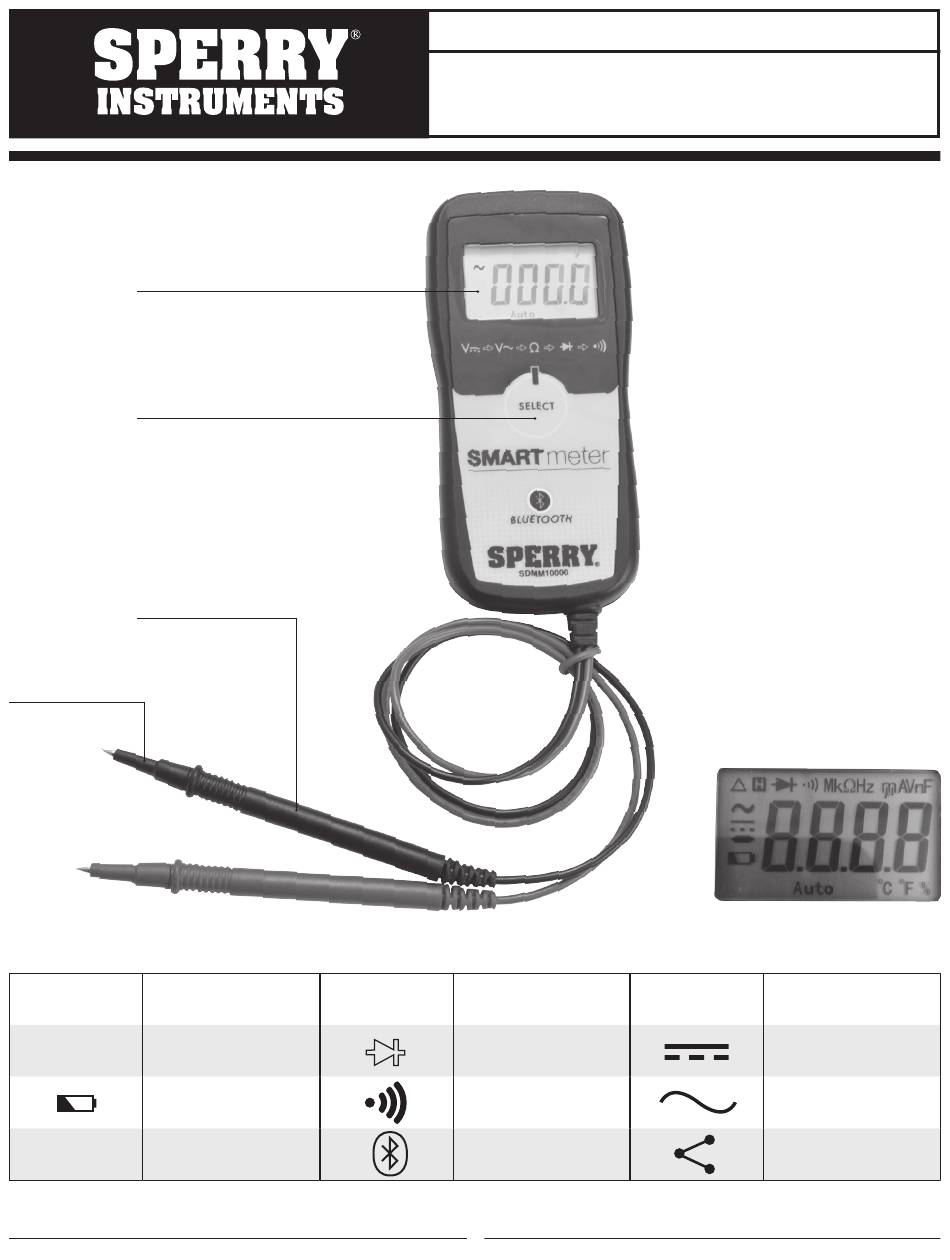

Figure 1
Millivolt, Volt
Diode Check
Audible
Continuity Check
Bluetooth
1
Figure 2
Ohm, Kiloohm,
Ω, kΩ, MΩ
Megaohm (Resistance)
Direct Current
Alternating Current
Sharing
