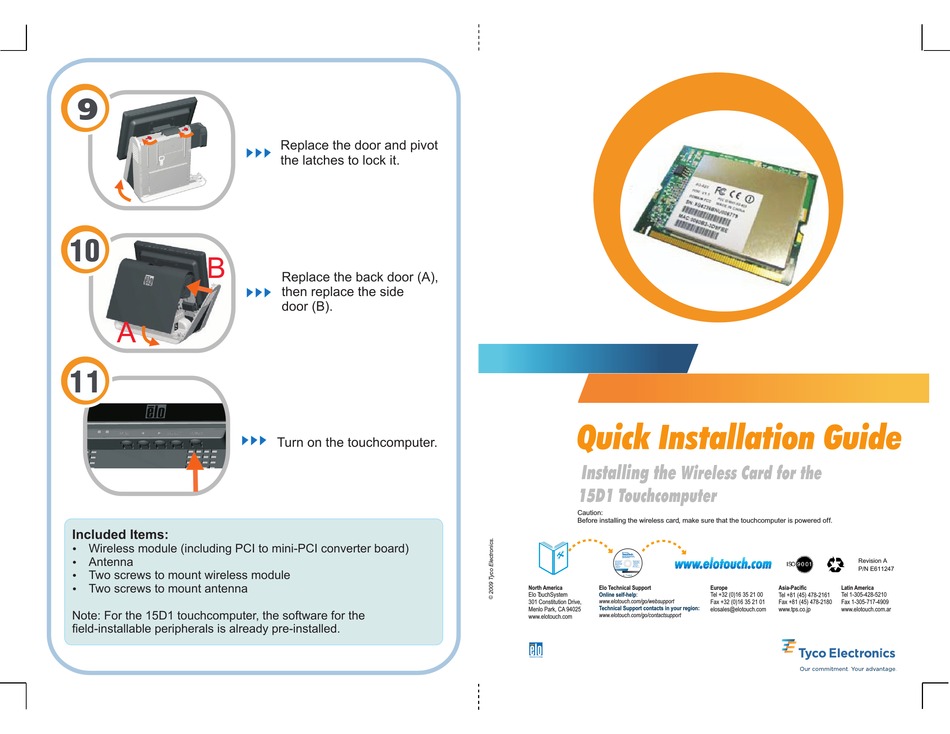

Elo TouchSystems 15D1 Quick Installation Manual

9
10
B
A
11
Included Items:
?
Wireless module (including PCI to mini-PCI converter board)
?
Antenna
?
Two screws to mount wireless module
?
Two screws to mount antenna
Note: For the 15D1 touchcomputer, the software for the
field-installable peripherals is already pre-installed.
Replace the door and pivot
the latches to lock it.
Replace the back door (A),
then replace the side
door (B).
Turn on the touchcomputer.
Installing the
Wireless Card for the
15D1 Touchcomputer
Caution:
Before installing the wireless card, make sure that the touchcomputer is powered off.
North America Elo Technical Support
Elo T ouchSystem Online self-help :
301 Constitution Drive, www.elotouch.com/go/websupport
Technical Support contacts in your region:
Menlo Park, CA 94025
www.elotouch.com/go/contactsupport
www.elotouch.com
Revision A
P/N E611247
Europe Asia-Pacific Latin America
Tel +32 (0)16 35 21 00 Tel +81 (45) 478-2161 Tel 1-305-428-5210
Fax +32 (0)16 35 21 01 Fax +81 (45) 478-2180 Fax 1-305-717-4909
elosales@elotouch.com www.tps.co.jp www.elotouch.com.ar
