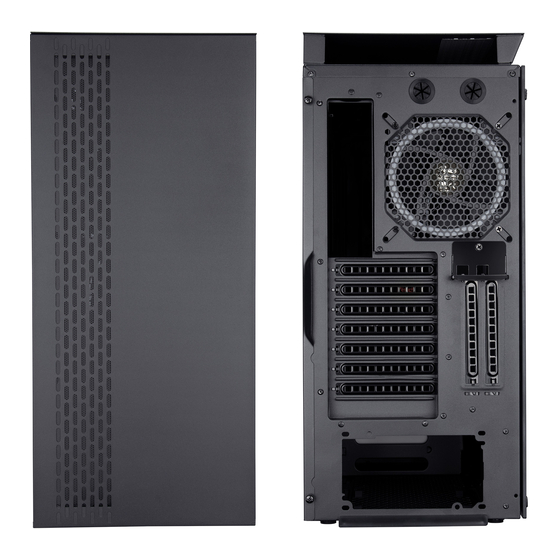

PRISM T
Thank you for purchasing a Rosewill Case.
Please read the instruction manual before use and retain for future reference.
PRODUCT OVERVIEW

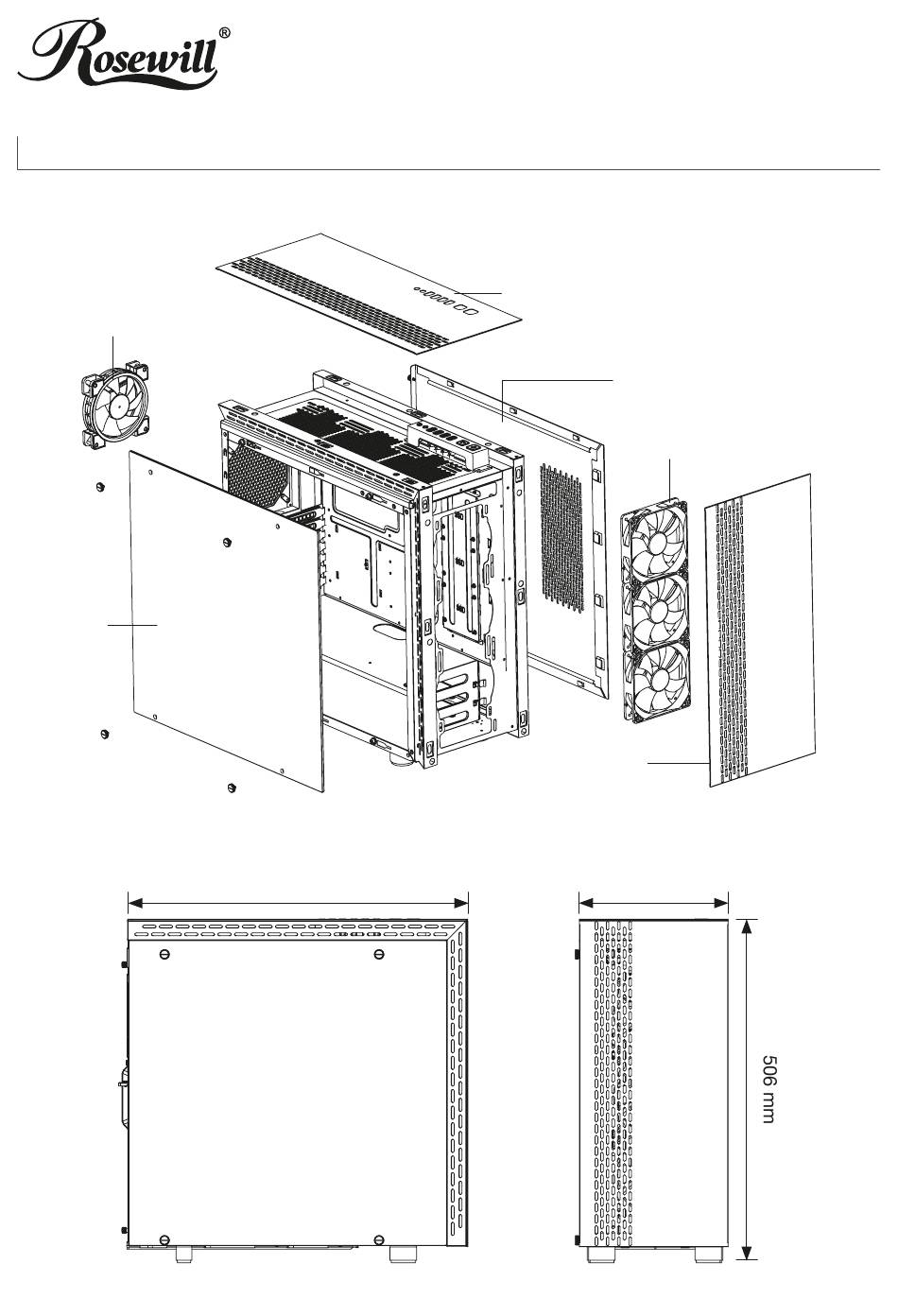

Disassembly Chart (components vary by country)
Top Panel
120 mm Blue LED
Double Ring Fan
Panel R
120 mm Fan
Panel L
Front Panel
Dimensions: 224 x 506 x 513 mm (W x H x D)
513 mm
224 mm
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rosewill PRISM T
Summary of Contents for Rosewill PRISM T
- Page 1 PRISM T Thank you for purchasing a Rosewill Case. Please read the instruction manual before use and retain for future reference. PRODUCT OVERVIEW Disassembly Chart (components vary by country) Top Panel 120 mm Blue LED Double Ring Fan Panel R...
-
Page 2: Accessory Kit
Accessory Kit Screw-A Screw-B Screw-C Screw-D (6-32 x 6 mm) (M3 x 5 mm) (6-32 x 6 mm) (M3 x 5 mm) Motherboard 3.5" Drive 2.5" Drive Standoff Nut Setter Buzzer Cable Tie Motherboard Standoff Motherboard Cable (9 pre-Installed) Installation Alarm Management INSTALLATION GUIDE... -
Page 3: Install Power Supply
1. Open the Unit 1-1. Loosen the thumb screws and take off panels R and L (Figure 1). 2. Install Power Supply 3. Install Motherboard 2-1. Seat the power supply unit at the 3-1. Secure the motherboard down onto bottom-rear of the case and secure with the pre-installed standoff with Screw-B Screw-A (Figure 2). - Page 4 4-2. Loosen the screws to release the vertical slot covers (Figure 4b). Install the add-on card and secure with screws (Figure 4c). 5. Install 3.5” Drive 5-1. Pull out the drive tray from the cage, then secure a 3.5” drive onto the tray with Screw-C (Figure 5a).
- Page 5 6-3. Unscrew to remove the SSD panel (Figure 6c), then secure 2.5” drives onto the panel with Screw-D (Figure 6d). 7. Care To prevent damage, keep all panels closed and secured. 7-1. Put the side panels back in place and secure with thumb screws (Figure 7a). 7-2.
- Page 6 Specifications Table for supported options. 8-2. Liquid Cooling Radiator Installation The PRISM T supports up to 420 mm radiator on the top and 360 mm radiator in the front to more effectively reduce system temperatures. Pull to remove the panels (Figure 8a/8b),...
- Page 7 TOP I/O PINOUT USB 3.0 CONNECTOR HD Audio CONNECTOR TOP I/O DIAGRAM Audio USB 3.0 Reset Power...
-
Page 8: Specifications Table
1 x Rear (optional) Physical Specifications Dimensions 8.82 x 19.92 x 20.20 in (W x H x D) Weight 24.69 lb Technical Support Information techsupport@rosewill.com 1-800-575-9885 Please register your product at www.rosewill.com for complete warranty information and support for your product. PRISM T_A...
