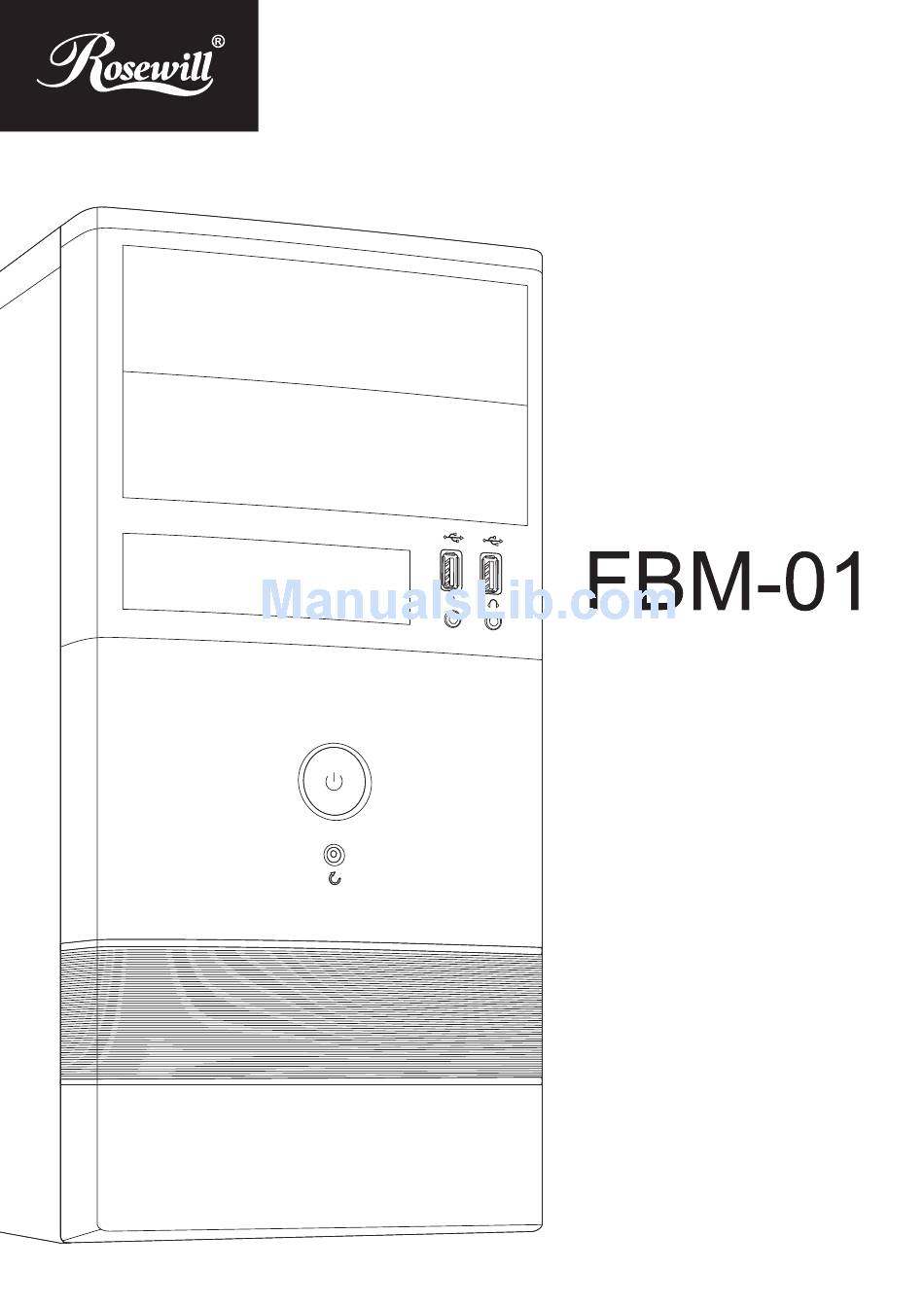

  • Page 1 User’s Manual...
  • Page 2 CASE FBM-01 Contents Product Overview Disassemble Chart Accessory Box Installation Guide Opening Chassis Installing Power Supply Installing Motherboard Installing Add On Card Installing External 5.25" Device Installing External 3.5" Device Installing 3.5” HDD Information © All rights reserved by Rosewill...
  • Page 3: Disassemble Chart

    Left Side Panel Front Panel Front 120mm Fan Front I/O Pin Define USB 2.0 CONNECTOR AC97 CONNECTOR HD CONNECTOR PORT1L AUD GND PORT1R AUD GND MIC~BIAA PRESENCE# RET~R FPOUT~R SENSE1_RETURN PORT2R SENSE_SEND FPOUT~L RET~L PORT2L SENSE2_RETURN © All rights reserved by Rosewill...
  • Page 4: Accessory Box

    Accessory Box 6 x M/B standoff Motherboard Power Supply 8 x Screw A Add-on Card 8 x Screw B 3.5” HDD Motherboard 18 x Screw C 5.25” Device Floppy Motherboard 1 x PC SPEAKER © All rights reserved by Rosewill...
  • Page 5 CASE FBM-01 User’s Manual Installation Guide Unscrew to remove left and right panel. Place the power supply from the left side into the chassis and secure with screws. © All rights reserved by Rosewill...
  • Page 6 CASE FBM-01 User’s Manual Installation Guide -Install motherboard stand-offs according to your motherboard’s screw holes. -Place the motherboard onto stand-offs and secure with screws. © All rights reserved by Rosewill...
  • Page 7 FBM-01 User’s Manual CASE Installation Guide -Confirm which slot you want to install an add-on card then fracture the slot cover with your screwdriver. -Install the add-on card and secure with screws. © All rights reserved by Rosewill...
  • Page 8 -Pull to remove the front panel. -Confirm which bay you want to install device(S) then remove the bay cover. -Reinstall the front panel. -Insert the 5.25” device from the front apnel into the chassis then secure with screws. © All rights reserved by Rosewill...
  • Page 9 FBM-01 User’s Manual CASE Installation Guide Insert the external 3.5” device into its position from front panel and secure with screws. Insert the 3.5” HDD into its position from inside and secure with screws. © All rights reserved by Rosewill...
  • Page 10 Please register your product at : http://www.rosewill.com for complete warranty information and future support for your product. If you have any question while using our products, please visit our website : www.rosewill.com for latest driver & user manual or feel free to contact us.
