  • Page 3: Table Of Contents

    SRM-01 Product Diagram Front I/O Diagram Accessory Kit Open the Unit Install the Power Supply Install the Motherboard Install the Add-in Card Install an External 5.25” Device Install a 3.5”/2.5” Drive Care Options Specifications...

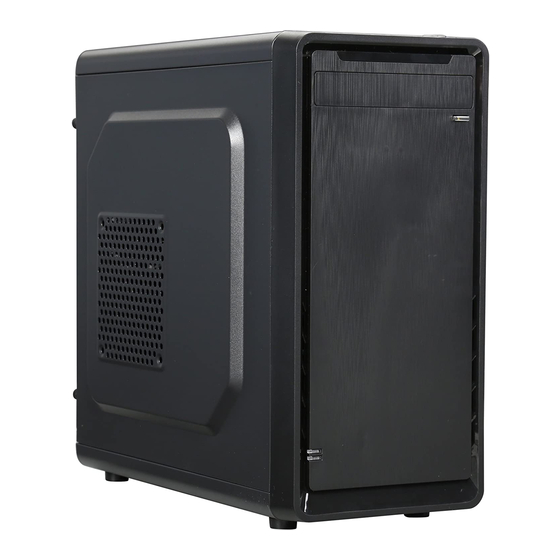

  • Page 4: Product Diagram

    SRM-01 Product Diagram Panel R 80 mm Rear Fan Panel L Front Panel Bottom Dust Filter Front I/O Pinout...

  • Page 5: Front I/O Diagram

    SRM-01 Front I/O Diagram Power Button USB 3.0 USB 2.0 HD Audio In / out Reset Button Accessory Kit Figure Part’s Name Function M/B Standoff Motherboard Screw-A Power Supply Motherboard Screw-B 5.25” Device Screw-C 3.5”/2.5” HDD/SSD...

  • Page 6: Open The Unit

    SRM-01 Open the Unit 1-1. Untwist the thumbscrews and slide out panels R and L (Figure 1). Install the Power Supply 2-1. Secure the power supply unit on the top of the case with Screw-A (Figure 2).

  • Page 7: Install The Motherboard

    SRM-01 Install the Motherboard 3-1. Unscrew to release the HDD panel (Figure 3a). 3-2. Line up the standoffs with the screw holes on the motherboard (Figure 3b).

  • Page 8: Install The Add-In Card

    SRM-01 3-3. Screw the motherboard down with Screw-B (Figure 3c). 4. Install the Add-in Card 4-1. Unscrew to release the HDD panel (Figure 4a).

  • Page 9: Install An External 5.25" Device

    SRM-01 4-2. Install the add-in card and secure with the screws (Figure 4b). 5. Install an External 5.25” Device 5-1. Pull the front panel out and remove it (Figure 5a).
  • Page 10 SRM-01 5-2. Insert the 5.25” drive and secure with screws (Figure 5b). 5-3. Install the front panel back onto the case (Figure 5c).

  • Page 11: Install A 3.5"/2.5" Drive

    SRM-01 Install a 3.5” or 2.5” Drive 6-1. Unscrew to release the HDD panel (Figure 6a). 6-2. Secure a 3.5” HDD/2.5” SSD onto the panel and with screws, and then screw the panel back on (Figure 6b).

  • Page 12: Care

    SRM-01 7. Care To prevent damage, it is recommended that all panels remain closed and secured. 7-1. Slide the side panels back into place and secure with thumbscrews (Figure 7a) 7-2. Clean the dust filter regularly to ensure adequate airflow and to prevent overheating and...

  • Page 13: Options

    SRM-01 8. Options 8-1. Additional Fan Install The SRM-01 has the capacity for additional fans. Please refer to the Specification Table on page 9 for options.

  • Page 14: Specifications

    Stryker M 9. Specification Table Model Model Name SRM-01 Item Number 11-147-248 Specs Type Mini Tower Color Black Case Material Steel/Plastic Power Supply Mounted Motherboard Compatibility Micro ATX, Mini ITX With Side Panel Window Expansion External 5.25" Drive Bays External 3.5" Drive Bays Internal 3.5"...
