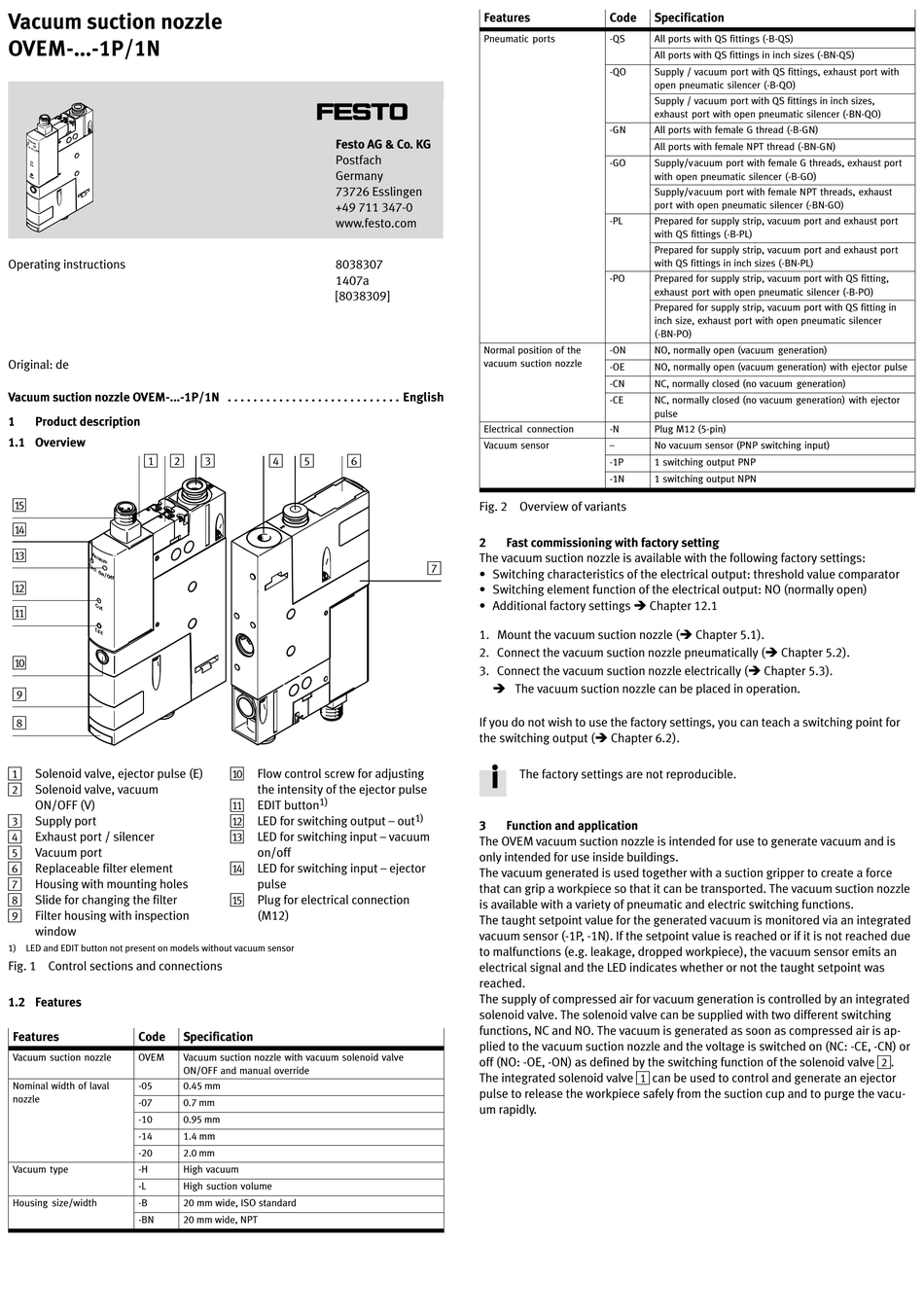

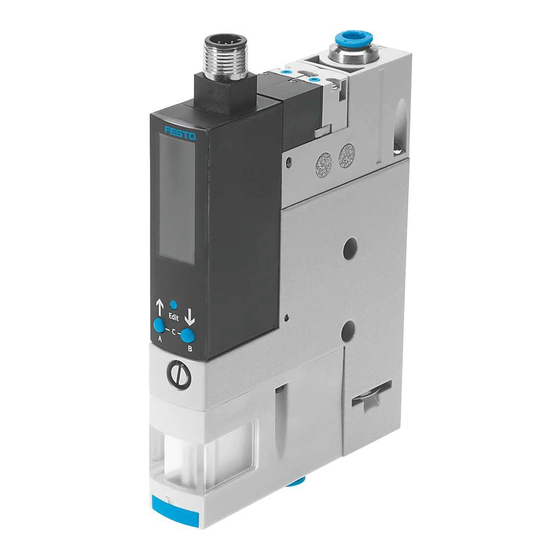

Festo OVEM 1P Series Operating Instructions Manual

Vacuum suction nozzle
OVEM-...-1P/1N
Operating instructions
Original: de
Vacuum suction nozzle OVEM-...-1P/1N
1

Product description

1.1 Overview
1 2
aE
aD
aC
aB
aA
aJ
9
8
1
Solenoid valve, ejector pulse (E)
2
Solenoid valve, vacuum
ON/OFF (V)
3
Supply port
4
Exhaust port / silencer
5
Vacuum port
6
Replaceable filter element
7
Housing with mounting holes
8
Slide for changing the filter
9
Filter housing with inspection
window
1) LED and EDIT button not present on models without vacuum sensor
Fig. 1 Control sections and connections
1.2 Features
Features Code
Vacuum suction nozzle OVEM
Nominal width of laval -05
nozzle
-07
-10
-14
-20
Vacuum type -H
-L
Housing size/width -B
-BN
Festo AG & Co. KG
Postfach
Germany
73726 Esslingen
+49 711 347-0
www.festo.com
8038307
1407a
[8038309]
. . . . . . . . . . . . . . . . . . . . . . . . . . .
3 4 5 6
aJ
Flow control screw for adjusting
the intensity of the ejector pulse
aA
1)
EDIT button
aB
LED for switching output – out
aC
LED for switching input – vacuum
on/off
aD
LED for switching input – ejector
pulse
aE
Plug for electrical connection
(M12)
Specification
Vacuum suction nozzle with vacuum solenoid valve
ON/OFF and manual override
0.45 mm
0.7 mm
0.95 mm
1.4 mm
2.0 mm
High vacuum
High suction volume
20 mm wide, ISO standard
20 mm wide, NPT
Features
Pneumatic ports
Normal position of the
vacuum suction nozzle
English
Electrical connection
Vacuum sensor
Fig. 2 Overview of variants
2

Fast commissioning with factory setting

The vacuum suction nozzle is available with the following factory settings:
7
• Switching characteristics of the electrical output: threshold value comparator
• Switching element function of the electrical output: NO (normally open)
• Additional factory settings è Chapter 12.1
1. Mount the vacuum suction nozzle (è Chapter 5.1).
2. Connect the vacuum suction nozzle pneumatically (è Chapter 5.2).
3. Connect the vacuum suction nozzle electrically (è Chapter 5.3).
è The vacuum suction nozzle can be placed in operation.
If you do not wish to use the factory settings, you can teach a switching point for
the switching output (è Chapter 6.2).
The factory settings are not reproducible.
1)
3

Function and application

The OVEM vacuum suction nozzle is intended for use to generate vacuum and is
only intended for use inside buildings.
The vacuum generated is used together with a suction gripper to create a force
that can grip a workpiece so that it can be transported. The vacuum suction nozzle
is available with a variety of pneumatic and electric switching functions.
The taught setpoint value for the generated vacuum is monitored via an integrated
vacuum sensor (-1P, -1N). If the setpoint value is reached or if it is not reached due
to malfunctions (e.g. leakage, dropped workpiece), the vacuum sensor emits an
electrical signal and the LED indicates whether or not the taught setpoint was
reached.
The supply of compressed air for vacuum generation is controlled by an integrated
solenoid valve. The solenoid valve can be supplied with two different switching
functions, NC and NO. The vacuum is generated as soon as compressed air is ap­
plied to the vacuum suction nozzle and the voltage is switched on (NC: -CE, -CN) or
off (NO: -OE, -ON) as defined by the switching function of the solenoid valve 2.
The integrated solenoid valve 1 can be used to control and generate an ejector
pulse to release the workpiece safely from the suction cup and to purge the vacu­
um rapidly.
Code Specification
-QS All ports with QS fittings (-B-QS)
All ports with QS fittings in inch sizes (-BN-QS)
-QO Supply / vacuum port with QS fittings, exhaust port with
open pneumatic silencer (-B-QO)
Supply / vacuum port with QS fittings in inch sizes,
exhaust port with open pneumatic silencer (-BN-QO)
-GN All ports with female G thread (-B-GN)
All ports with female NPT thread (-BN-GN)
-GO Supply/vacuum port with female G threads, exhaust port
with open pneumatic silencer (-B-GO)
Supply/vacuum port with female NPT threads, exhaust
port with open pneumatic silencer (-BN-GO)
-PL Prepared for supply strip, vacuum port and exhaust port
with QS fittings (-B-PL)
Prepared for supply strip, vacuum port and exhaust port
with QS fittings in inch sizes (-BN-PL)
-PO Prepared for supply strip, vacuum port with QS fitting,
exhaust port with open pneumatic silencer (-B-PO)
Prepared for supply strip, vacuum port with QS fitting in
inch size, exhaust port with open pneumatic silencer
(-BN-PO)
-ON NO, normally open (vacuum generation)
-OE NO, normally open (vacuum generation) with ejector pulse
-CN NC, normally closed (no vacuum generation)
-CE NC, normally closed (no vacuum generation) with ejector
pulse
-N Plug M12 (5-pin)
– No vacuum sensor (PNP switching input)
-1P 1 switching output PNP
-1N 1 switching output NPN
