Vacuum suction nozzle
OVEM-...-1P/1N
Operating instructions
(Translation of the original instructions)
Vacuum suction nozzle OVEM-...-1P/1N
1

About this document

This document describes the use of the above-mentioned product.
For all available product documentation è www.festo.com/pk
2

Safety

2.1 Intended use
The OVEM vacuum generator is used to generate a vacuum.
2.2 General safety information
• The product may only be used in its original status without unauthorized modi­
fications.
• Only use the product if it is in perfect technical condition.
• Use the product only inside buildings.
• Take into consideration the ambient conditions at the location of use.
• The product is intended for use in industrial environments. The product can
generate high frequency interference, which may make it necessary to imple­
ment interference suppression measures in residential areas.
• Observe the specifications on the product labelling.
2.3 Range of applications and certifications
Note
CE Declaration of Conformity è www.festo.com/sp
In connection with the UL marking on the product, the information of this section is
also applicable for compliance with the certification conditions of Underwriters
Laboratories Inc. (UL) for the U.S.A. and Canada.
UL approval information
Product category code
File number
Considered standards
UL mark
Fig. 1 UL approval information
Unit shall be supplied by a power source which complies with the requirements of
a limited-energy circuit in accordance with IEC/EN/UL/CSA 61010-1 or a Limited
Power Source (LPS) in accordance with IEC/EN/UL/CSA 60950-1 or IEC/EN/UL/
CSA 62368-1 or a Class 2 circuit in accordance with NEC or CEC.
3 Service
• Contact the regional Festo contact if you have technical questions
è www.festo.com.
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8085608
2018-01b
[8085610]
. . . . . . . . . . . . . . . . . . . . . . . . . . .
QUYX (USA)
QUYX7 (Canada)
E322346
UL 61010-1
C22.2 No.61010-1
4

Accessories

Designation
Connecting cable M12x1, 5-pin, 2.5 m
Connecting cable M12x1, 5-pin, 5 m
H-rail mounting
Mounting bracket
Silencer extension
Common supply manifold
Blanking plug
Fig. 2 Accessories
Accessories è www.festo.com/catalogue
5

Product description

5.1 Overview
aE
aD
English
aC
aB
aA
aJ
9
8
1
Solenoid valve, ejector pulse
(Eject)
2
Solenoid valve, vacuum
3
Mechanical manual override of the
solenoid valves
4
Supply port (1)
5
Exhaust port / silencer (3)
6
Vacuum port (2)
7
Housing with mounting holes
8
Slide for changing the filter
element
1) LED and EDIT button not present on models without vacuum sensor

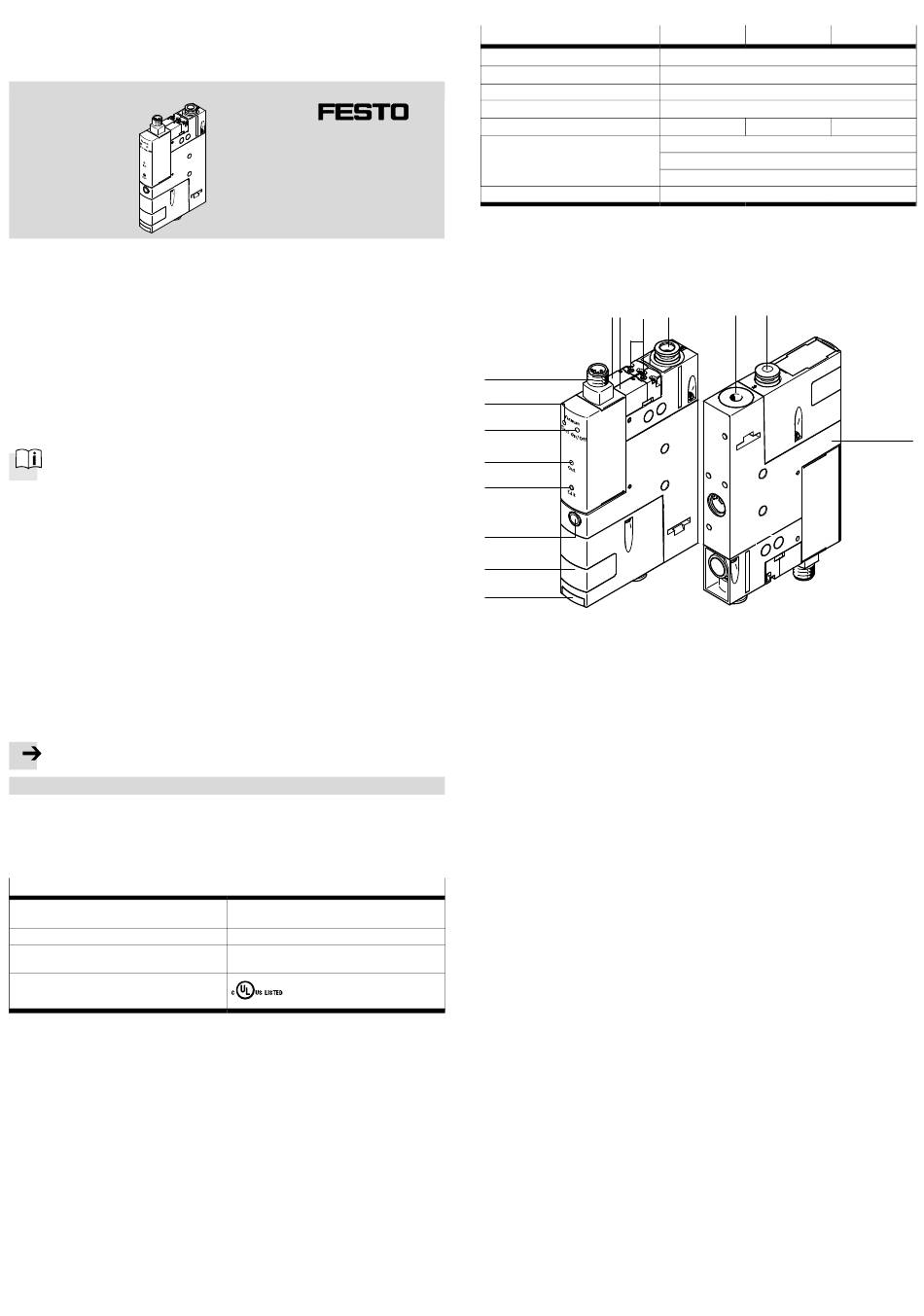

Fig. 3 Control sections and connections
OVEM-05 OVEM-07/10
NEBU-M12G5-K-2.5-LE5
NEBU-M12G5-K-5-LE5
OABM-H
HRM-1
– UOMS-¼
OABM-P-4
OABM-P-6
OABM-P-8
OASC-G1-P
1 2 3 4 5
9
Filter housing with inspection
window
aJ
Flow control screw for adjusting
the ejector pulse
aA
EDIT button
aB
LED for switching output – out
aC
LED for switching input – vacuum
on/off
aD
LED for switching input – ejector
pulse
aE
Electrical connection
OVEM-14/-20
UOMS-¼
6
7
1)
1)
