Product Installation; Dimensions And Mounting - Danfoss JS120 Technical Information

Technical Information
JS120 Single Axis Fingertip Joystick

Product installation

Dimensions and mounting

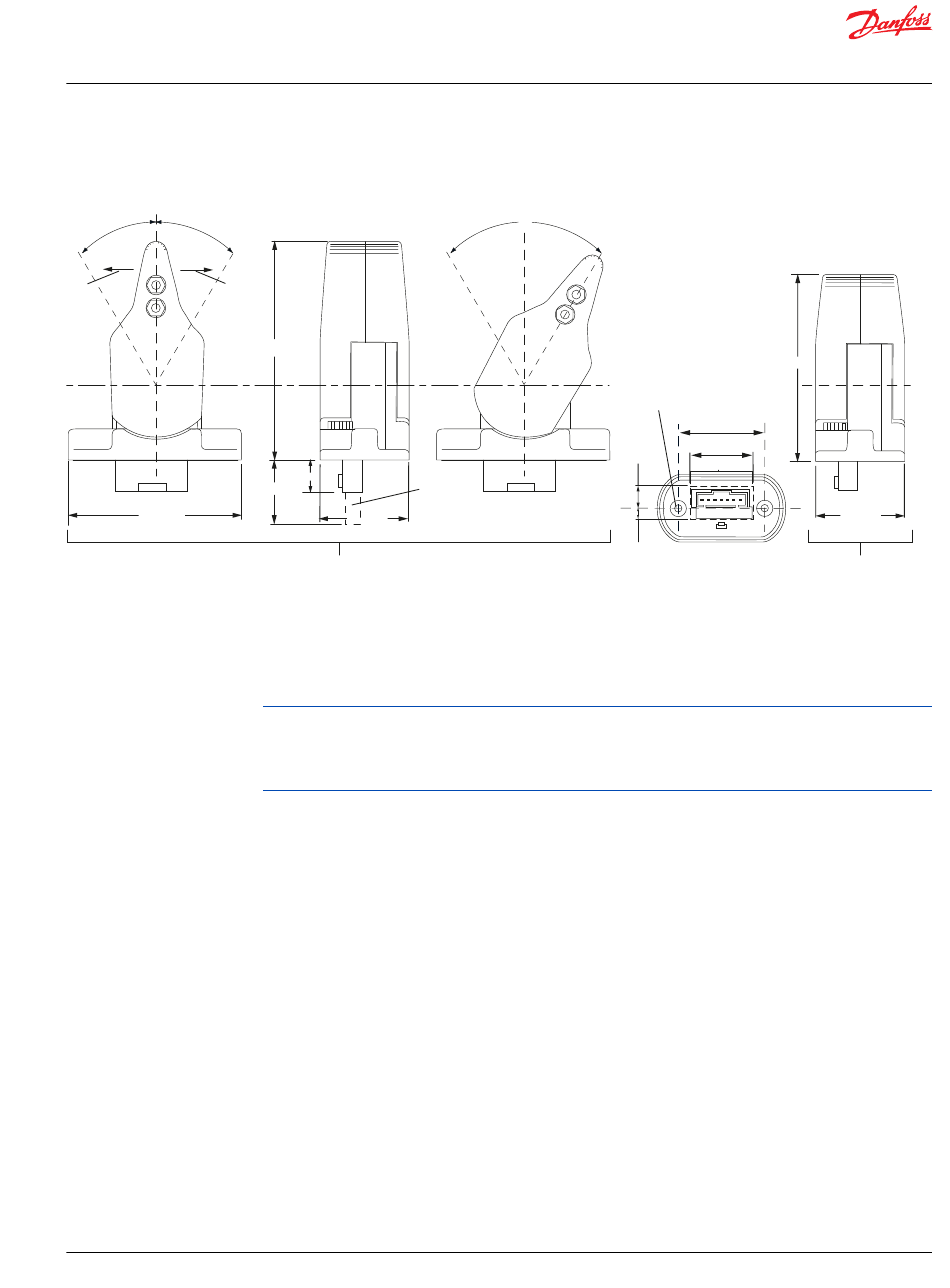

Dimensions
o
o
30 30
+Y
-Y
1 2
50.0 mm
1. Forward
3. Connector
5. Panel cut out
7. Short lever
© Danfoss | December 2016
63.75 mm
9.0 mm
3
15.5 mm
26.5 mm
6
2. Backward
4. Panel clearance holes 3.10 mm
6. Long lever
JS120 is designed to be fitted down into the panel, through the panel cutout. Panel seal integrity can be
achieved by using sealing gasket. Mounting screws can be driven to a recommended torque of 1 N•m (9
lbf•in). The joystick is fitted with 2 x M3 inserts and the maximum screw penetration is 6 mm plus panel
thickness.
60
°
4
7.0 mm
3.35 mm
520L0877 | BC00000075en-US0303 | 7
54.0 mm
33.0 mm
25.0 mm
5
26.5 mm
7
