Rhino-Rack RTD25L Instructions

Rhino Rack Lockable Tie Down RTD25/35/45/55L
Place these instructions in the vehicle's glove box after installation is complete.
Important:
CAUTION:
Must NOT be used for lifting. Always inspect prior to use. Protect from friction and abrasion. Do NOT use strap if it is damaged.
For excessively long loads, use additional straps to secure the load at the front and rear of the vehicle (optional accessory
RBAS). This product is designed to aid in the safety of transporting long items (i.e. Kayaks) and not to be used for towing or
pulling applications. Special consideration must be taken when selecting your fi xing point. Rhino-Rack does not take any respon-
sibility for damage to the vehicle that may be caused by this product on paintwork, panels and fi xing hardware. Although they are
designed with the softest materials in mind to minimise this damage, they cannot take into consideration the variation of panel gaps
and wind fl apping issues. It is the users responsibility to ensure that the strap is used in accordance with these fi tting instructions.
Available Sizes

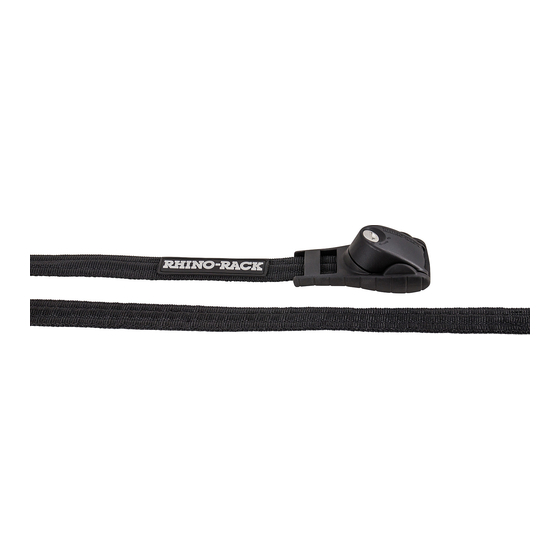

Black Tie Down Locking Straps (2.5m) -
RTD25L
Black Tie Down Locking Straps (3.5m) -
RTD35L
Black Tie Down Locking Straps (4.5m) -
RTD45L
Black Tie Down Locking Straps (5.5m) -
RTD55L
Note: All sizes sold as separate. Max
carrying capacity 225kg/ 496lbs.
1
Remove the Lockable Cap with the Metal Key provided.
1.
2.
Please read these instructions carefully prior to installation.
Check the contents of kit before commencing fi tment and report any discrepancies
LOAD
LOAD

Parts List

1
2 Lock Barrel/Key
3 Cam Buckle Cover
4 Velcro Storage Strap
5 Cable Tie (display only)
6
Note: RTD25L,35L,45L and 55L sold as
separate. Be sure to purchase the correct
length to meet individual needs.
Parts List
Qty RTDXXL
Tie Down 2
2
2
Locking
2
2
Instructions 1
Instructions
2
Depress and hold down the Locking Tab on the
Assembly.
Depress and
hold Tab.
CONTROLLED
4.
CA1559
CA1339
M752
-
-
1.
R851
5.
2.
3.
Locking Tab.
Page 1 of 3
