Motion Settings
The camera can detect movement and display an alarm on the screen, when movement is detected.

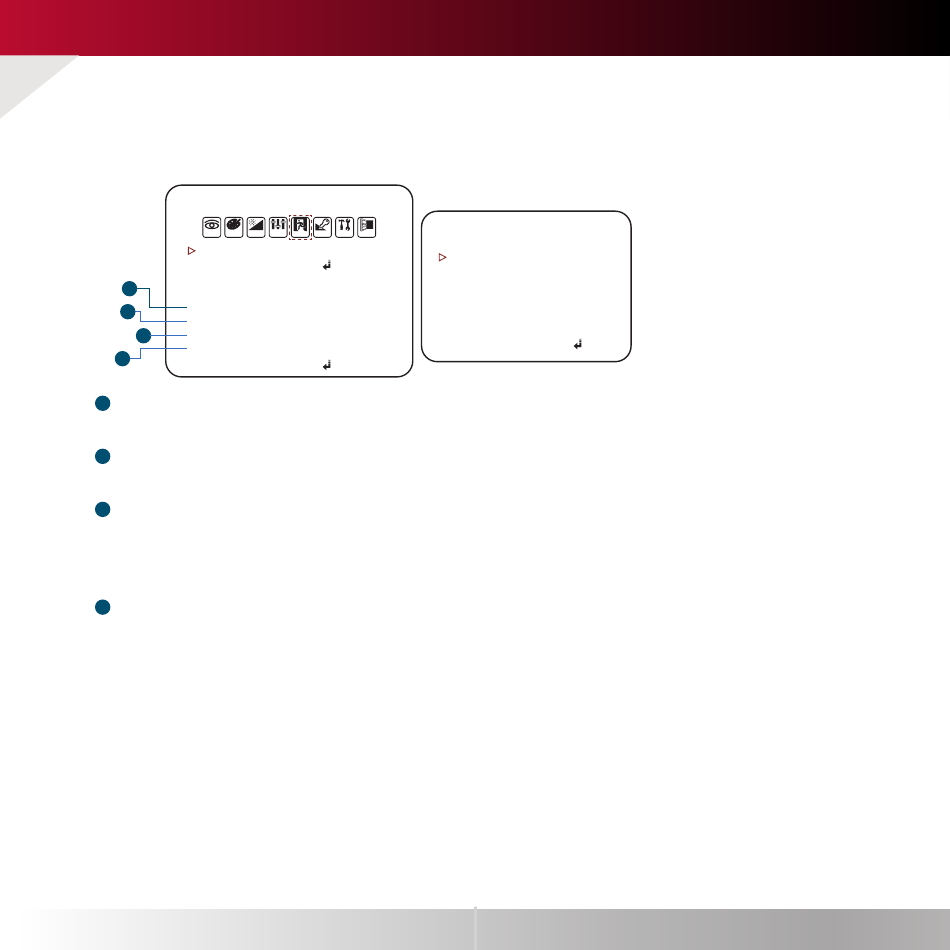

MOTION
EXPO RGB D&N FUNC
MOTION
DET WINDOW
DET TONE
5
MDRECT FILL
SENSITIVITY
6
MOTION OSD
TEXT ALARM
7
SIGNAL OUT
8
EXIT JUMP
SENSITIVITY
5
The smaller the movement you want to detect, the higher the sensitivity value must be.
MOTION OSD
6
MOTION ZONE display. MOTION OSD interoperable with 'DET TONE' and 'MDRECT FILL'.
TEXT ALARM
7
Setup a text to appear on the screen when motion is detected explaining the alarm situation.
- WINDOW MOTION: Will appear when a motion alarm is detected.
- CAMERA MOVING : Will appear if the camera is shaken abruptly.
SIGNAL OUT (ON/OFF)
8
- ON : 'HIGH' SIGNAL OUT upon ALARM.
- OFF : 'SIGNAL OUT' o regardless of ALARM.
MOTI PRIV SET EXIT
ON
WINDOW USE
WINDOW ZONE
____
DET H-POS
____
DET V-POS
5
DET H-SIZE
OFF
DET V-SIZE
OFF
RETURN
ON
DET WINDOW
0
ON
1
1
58
32
