Motion Settings

The camera can detect movement and display an alarm on the screen, when movement is detected.

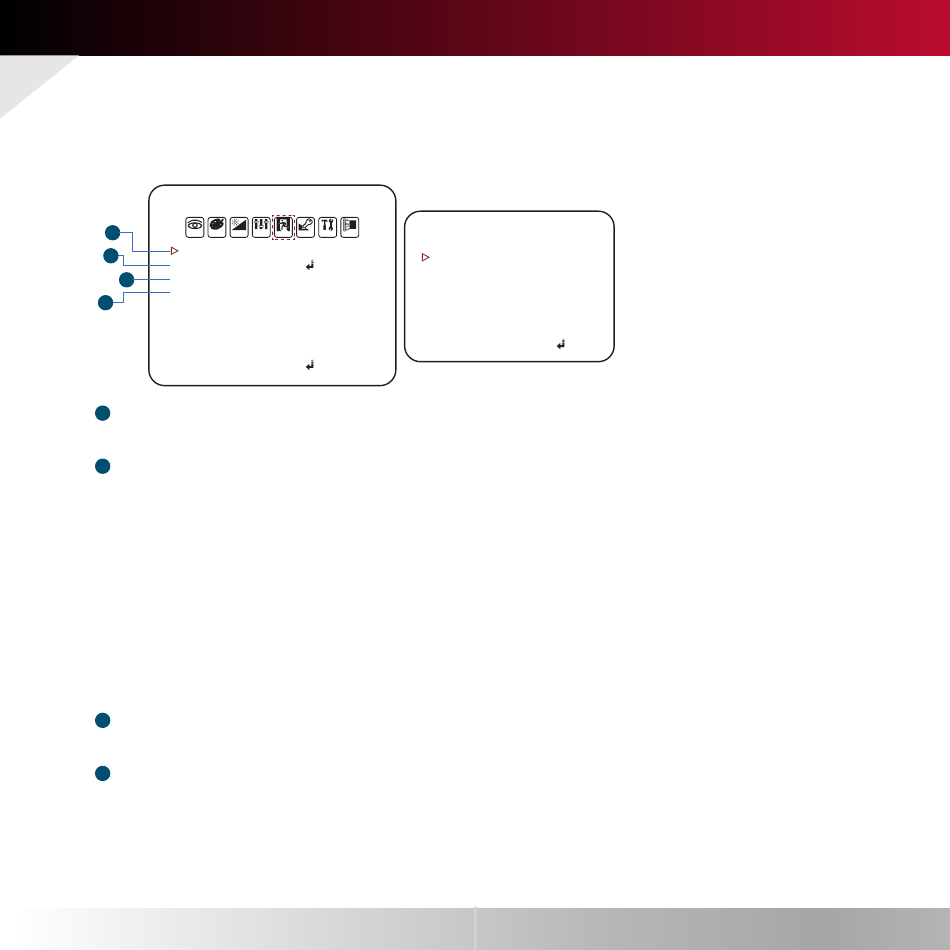

MOTION
1
EXPO RGB D&N FUNC
MOTION
2
DET WINDOW
DET TONE
3
MDRECT FILL
4
SENSITIVITY
MOTION OSD
TEXT ALARM
SIGNAL OUT
EXIT JUMP
MOTION
1
To use the motion detection settings, before Motion is ON.
DET WINDOW
2
- WINDOW USE : Select which one of the motion areas to enable.
- WINDOW ZONE : The camera supports up to 4 different masks. Select which ones to display.
- DET H-POS : Move the zone left or right.
The higher the number, the zone will move to the right.
- DET V-POS : Move the zone up or down.
The higher the number, the zone will move down.
- DET H-SIZE : Adjust the zone's size horizontally.
The higher the number, the right side panel will move further to the right.
- DET V-SIZE : Reset the zone's size vertically.
The higher the number, the bottom panel will move down.
DET TONE
3
Four each dierent motion tone color available.
MDRECT FILL
4
Color setting for operating motion zone.
MOTI PRIV SET EXIT
ON
WINDOW USE
WINDOW ZONE
____
DET H-POS
____
DET V-POS
5
DET H-SIZE
OFF
DET V-SIZE
OFF
RETURN
ON
DET WINDOW
0
ON
1
1
58
32
