Color Settings

WB MODE
EXPO RGB
WHITE BAL.
COLOR GAIN
RETURN
AUTO Auto Tracking White Balance Control mode compensates for color
temperature changes between 2500K˚ and 12000K˚.
AUTO-EX Auto White Balance Control mode compensates for color temperature
changes lower than 2500K˚ and higher than 12000K˚.
PRESET Preset fixes the white balance based on the current lighting automatically.
MANUAL Users can control the white balance manually by changing RED GAIN and
BLUE GAIN. (see blow)
C-TEMP : Select the color temperature for the white balance setup.
If enabled, the Red and Blue Gain settings will be set automatically according
to the C-TEMP selected.
RED GAIN : 0 ~ 20. Adjusts the amount of red in the image.
BLUE GAIN : 0 ~ 20. Adjust the amount of blue in the image.
COLOR GAIN Set the color gain from 0~20.
COLOR

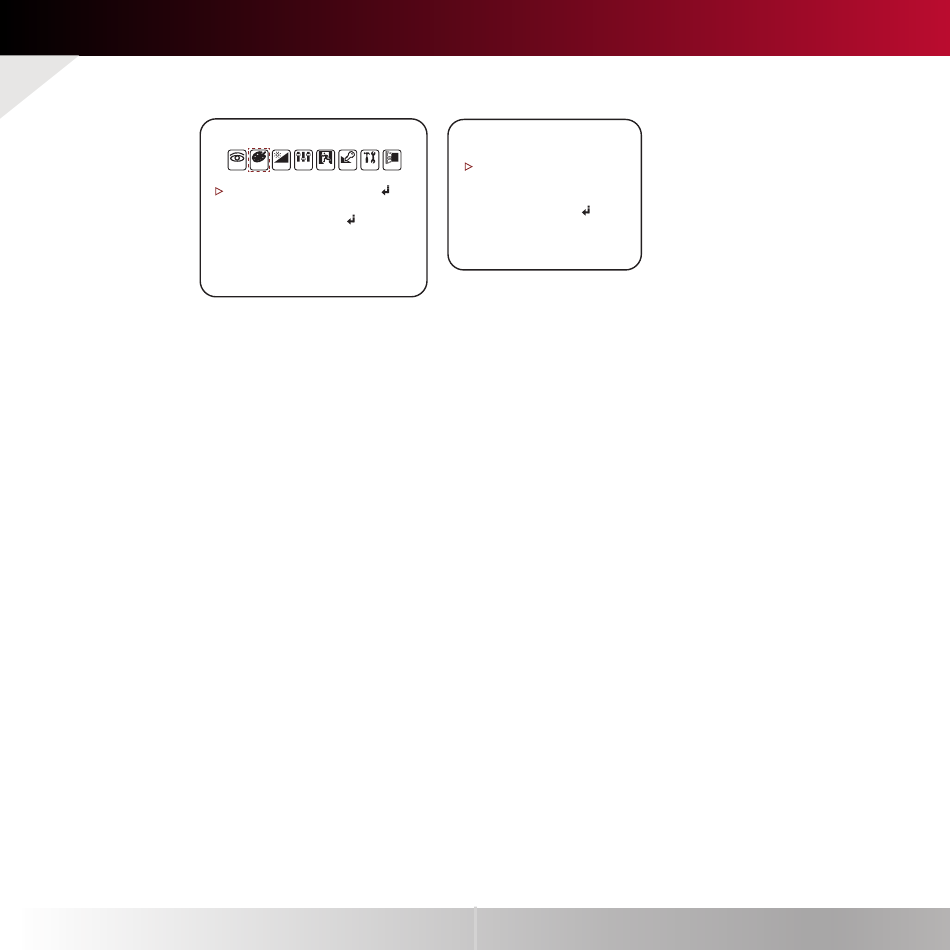

D&N FUNC MOTI PRIV SET EXIT
AUTO
10
WHITE BAL.
C-TEMP 5000K
R-GAIN 10
B-GAIN 10
RETURN
